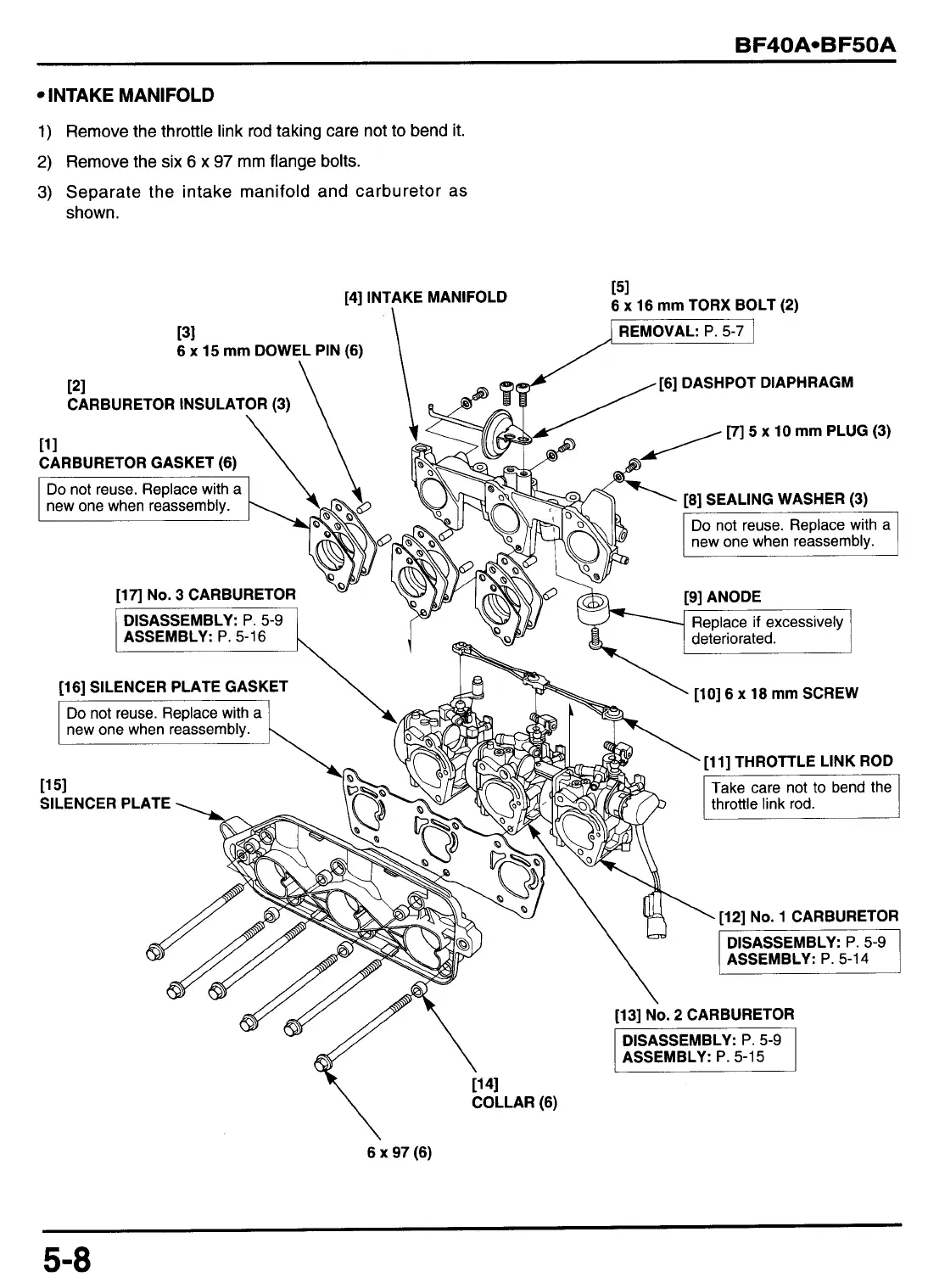

INTAKE MANIFOLD
1) Remove the throttle link rod taking care not to bend it.
2) Remove the six 6 x 97 mm flange bolts.
3) Separate the intake manifold and carburetor as
shown.
[51
6 x 16 mm TORX BOLT (2)
[4] INTAKE MANIFOLD
\
[6] DASHPOT DIAPHRAGM
[7] 5 x 10 mm PLUG (3)
[lo] 6 x 18 mm SCREW
11 51
SILENCER PLATE
6 x 97 (6)
