BF40AoBF50A
b.

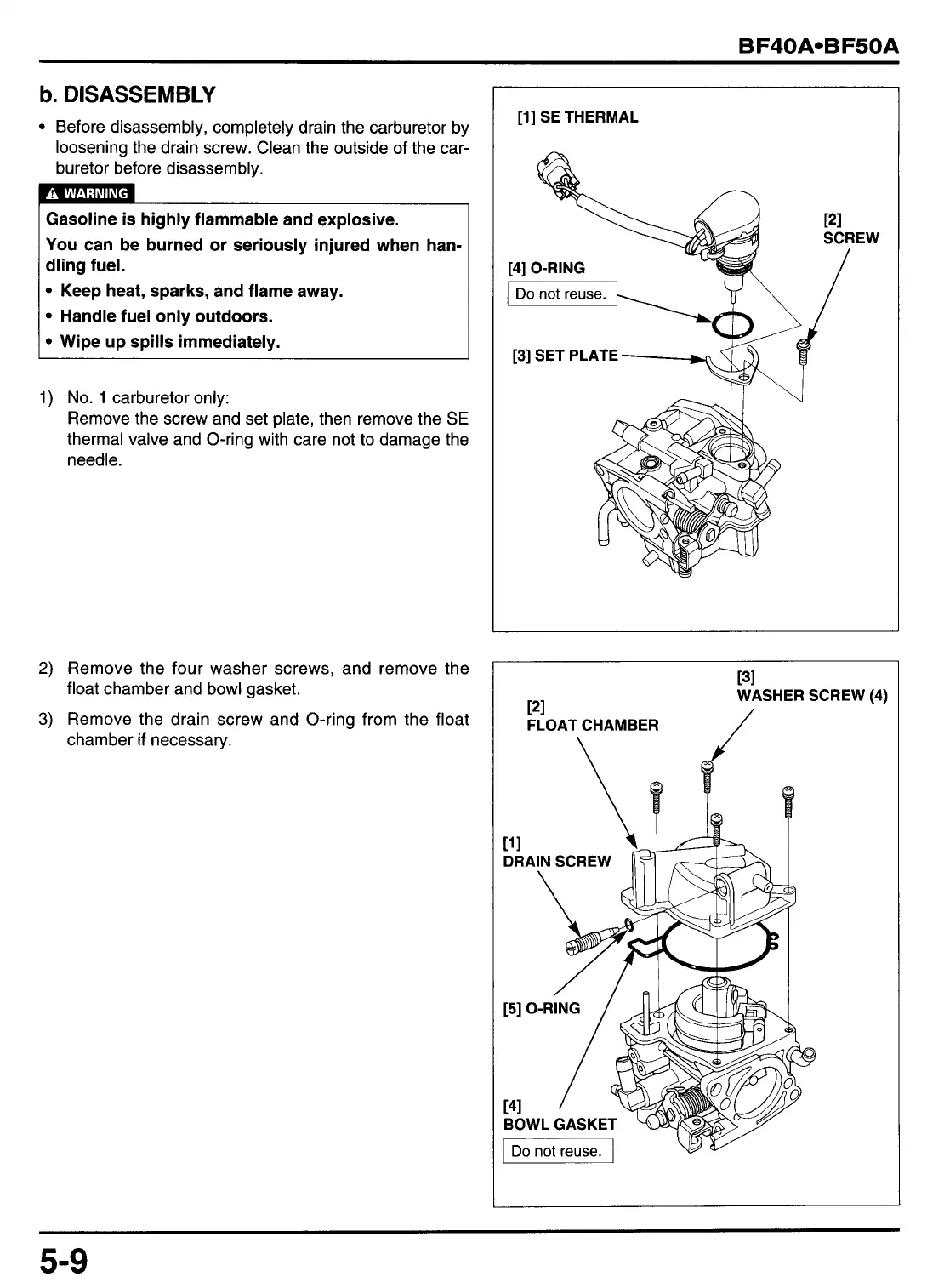

DISASSEMBLY
Before disassembly, completely drain the carburetor by
loosening the drain screw. Clean the outside of the car-
buretor before disassembly.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when han-
dling fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
1)
No.
1
carburetor only:
Remove the screw and set plate, then remove the
SE
thermal valve and O-ring with care not to damage the
needle.
2)
Remove the four washer screws, and remove the
float chamber and bowl gasket.
3)
Remove the drain screw and O-ring from the float
chamber
if
necessary.
[l]
SE THERMAL
EW
[31
/
WASHER SCREW
(4)
PI
FLOAT CHAMBER
\
J
0
I
I
