BF40AoBF50A
14)

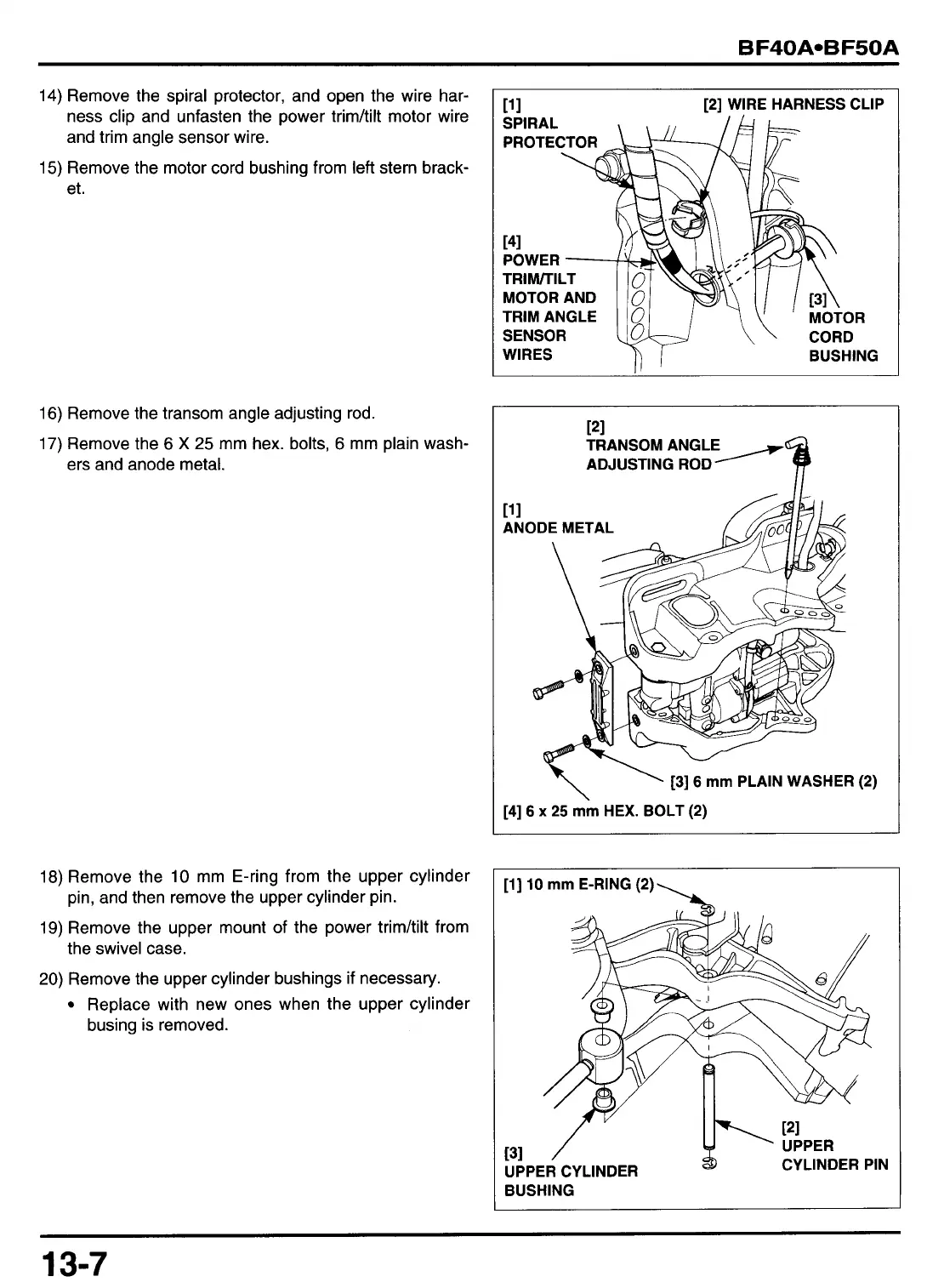

Remove the spiral protector, and open the wire har-
ness clip and unfasten the power trimhilt motor wire
and trim angle sensor wire.
15) Remove the motor cord bushing from left stern brack-
et.
16) Remove the transom angle adjusting rod.
17) Remove the
6
X
25
mm hex. bolts, 6 mm plain wash-
ers and anode metal.
18)
Remove the
10
mm E-ring from the upper cylinder
19)
Remove the upper mount of the power trimhilt from
20)
Remove the upper cylinder bushings if necessary.
pin, and then remove the upper cylinder pin.
the swivel case.
Replace with new ones when the upper cylinder
busing is removed.
[I
1
[2] WIRE HARNESS CLIP
TRl WILT
MOTORAND
0
TRIMANGLE
\\
CORD
BUSH IN G
SENSOR
WIRES
PI
TRANSOM
ADJUSTING ROD
\
\
[3]
6
mm
PLAIN WASHER (2)
[4]
6
x
25
mm
HEX. BOLT
(2)
I
113
10
mm
E-RING (2)\
CYLINDER PIN
I
BUSHING
13-7
To Next Page
