BF40AoBF50A

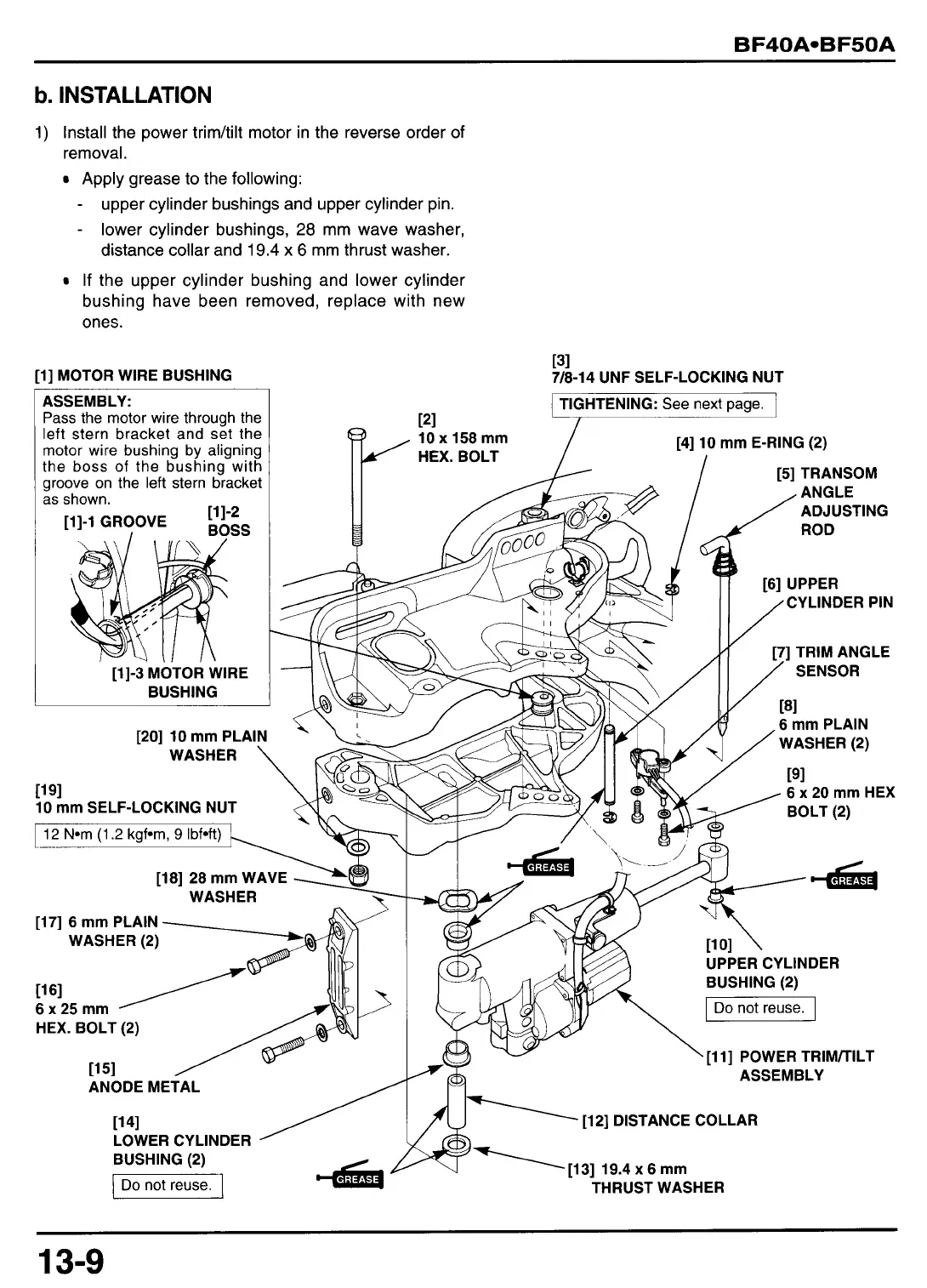

b. INSTALLATION
1) Install the power trimhilt motor in the reverse order of
removal.
Apply grease to the following:
- upper cylinder bushings and upper cylinder pin.
- lower cylinder bushings, 28 mm wave washer,
distance collar and
19.4 x 6 mm thrust washer.
If the upper cylinder bushing and lower cylinder
bushing have been removed, replace with new
ones.
[l] MOTOR WIRE BUSHING
131
7/8-14
UNF SELF-LOCKING NUT
[12] DISTANCE COLLAR
\[13] 19.4 x 6 mm
THRUST WASHER
11 41
LOWER CYLINDER
BUSHING
(2)
I DO not reuse. 1
13-9
