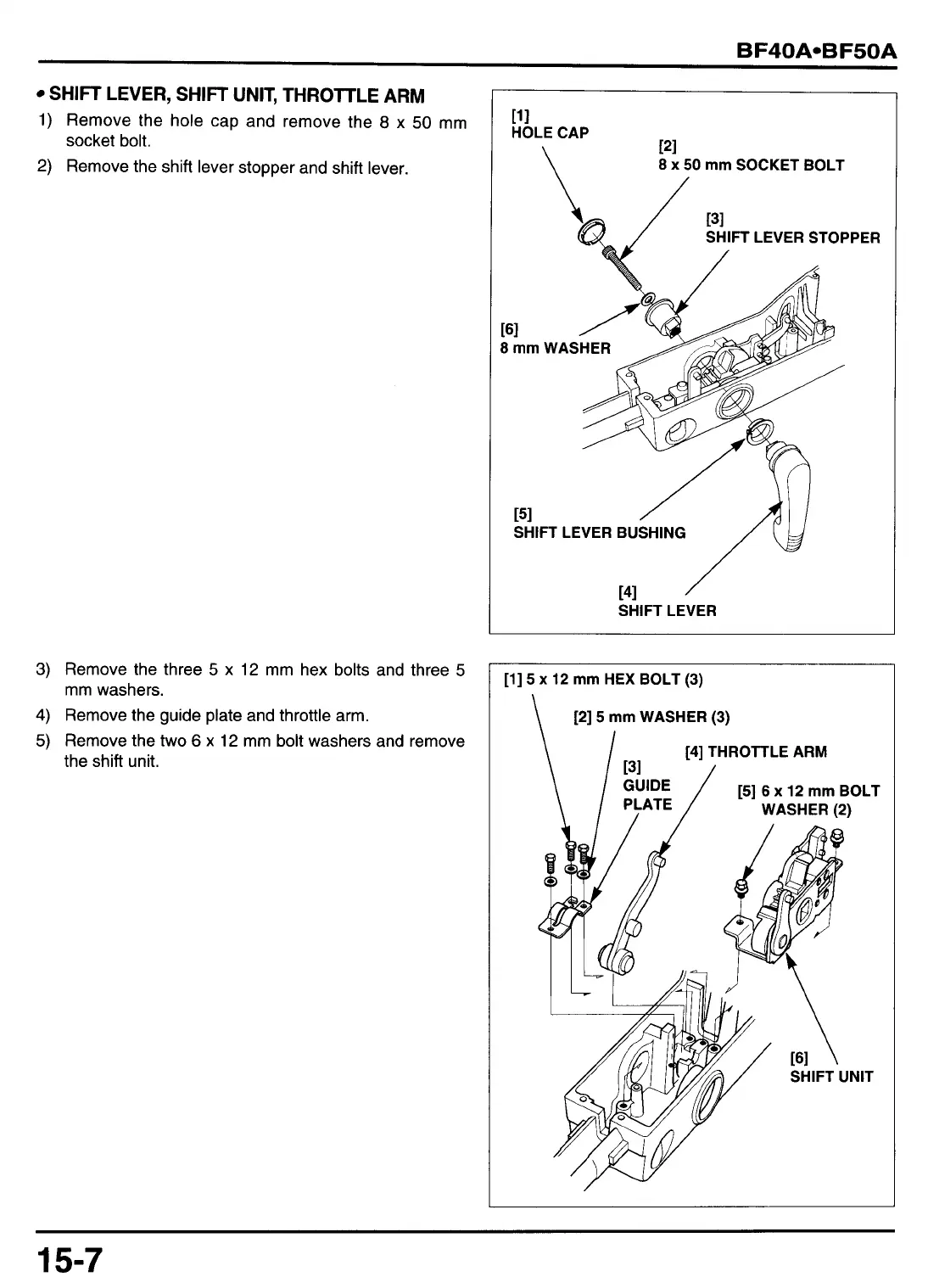

SHIFT LEVER, SHIFT UNIT, THROTTLE ARM
1) Remove the hole cap and remove the
8
x
50
mm
socket bolt.
2)
Remove the shift lever stopper and shift lever.
3)
Remove the three
5
x
12 mm hex bolts and three
5
mm washers.
4)
Remove the guide plate and throttle arm.
5)
Remove the two
6
x
12 mm bolt washers and remove
the shift unit.
1
111
HOLE CAP
I\
121
8
x
50
mm SOCKET BOLT
FT
LEVER STOPPER
SHIFT LEVER BUSHING
'P
[51
[41
SHIFT LEVER
[l]
5
x
12 mm HEX BOLT (3)
\
1215 mmWASHER(3)
[4]
THROTTLE ARM
\
/
PI
/
[5]
6
x
12 mm BOLT
\
/
/
WASHER(2)
15-7
