Apply grease to the:
- sliding surface of the lever stopper.
- sliding surface of the shift lever.
- busing.
Position the shift arm in a vertical position to align the
shift unit square and shift gear. Install the shift lever.
Install the shift lever by aligning the square of the lever
stopper and that
of the shift gear.
141

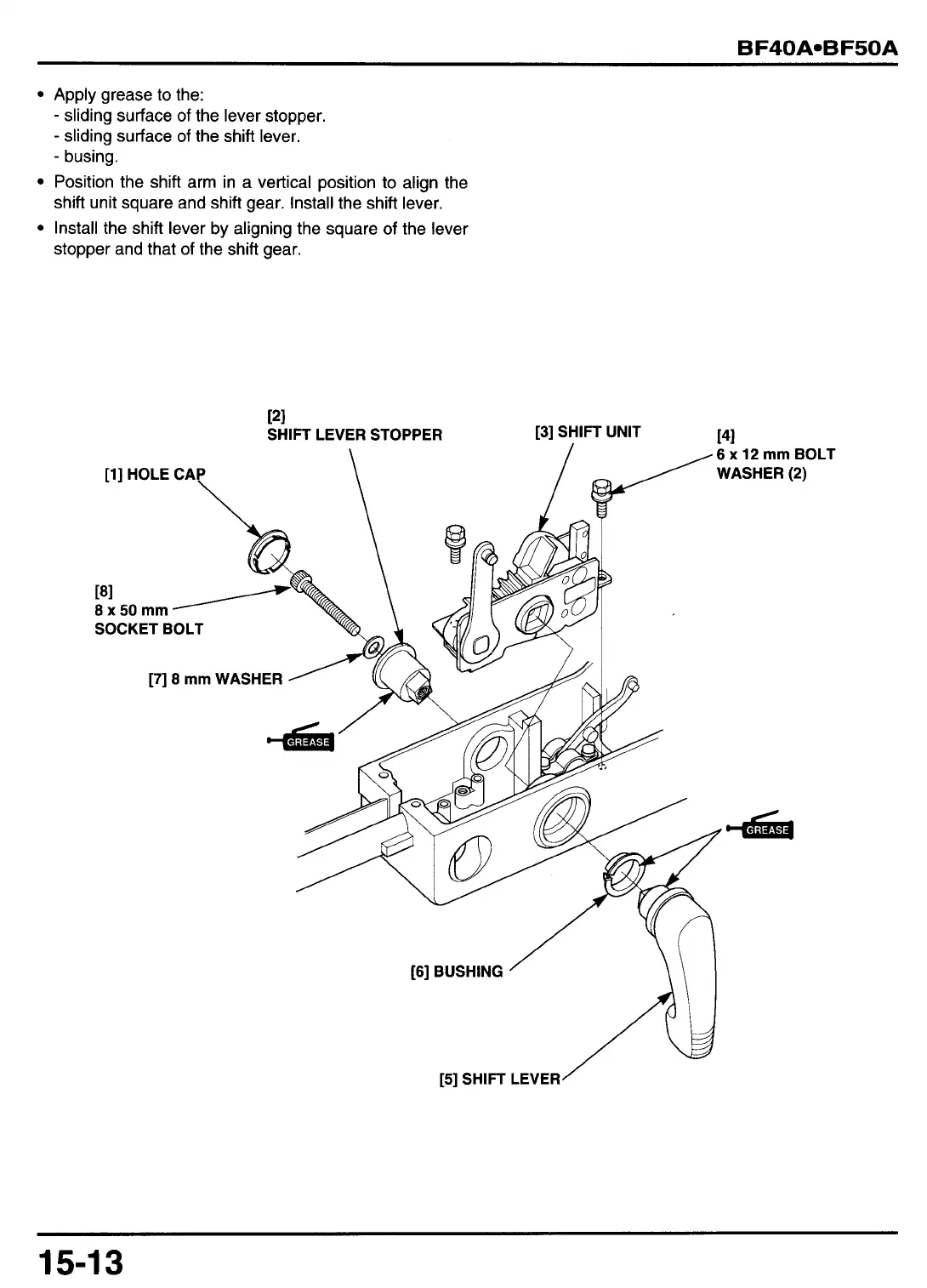

[3] SHIFT UNIT
\ I ,6~12rnrnBOLT
PI
SHIFT LEVER STOPPER
SOCKET BOLT
[7] 8 rnrn WASHER
\\ I
[6] BUSHING ’
[5] SHIFT LEVER AJ
