BF40AoBF50A

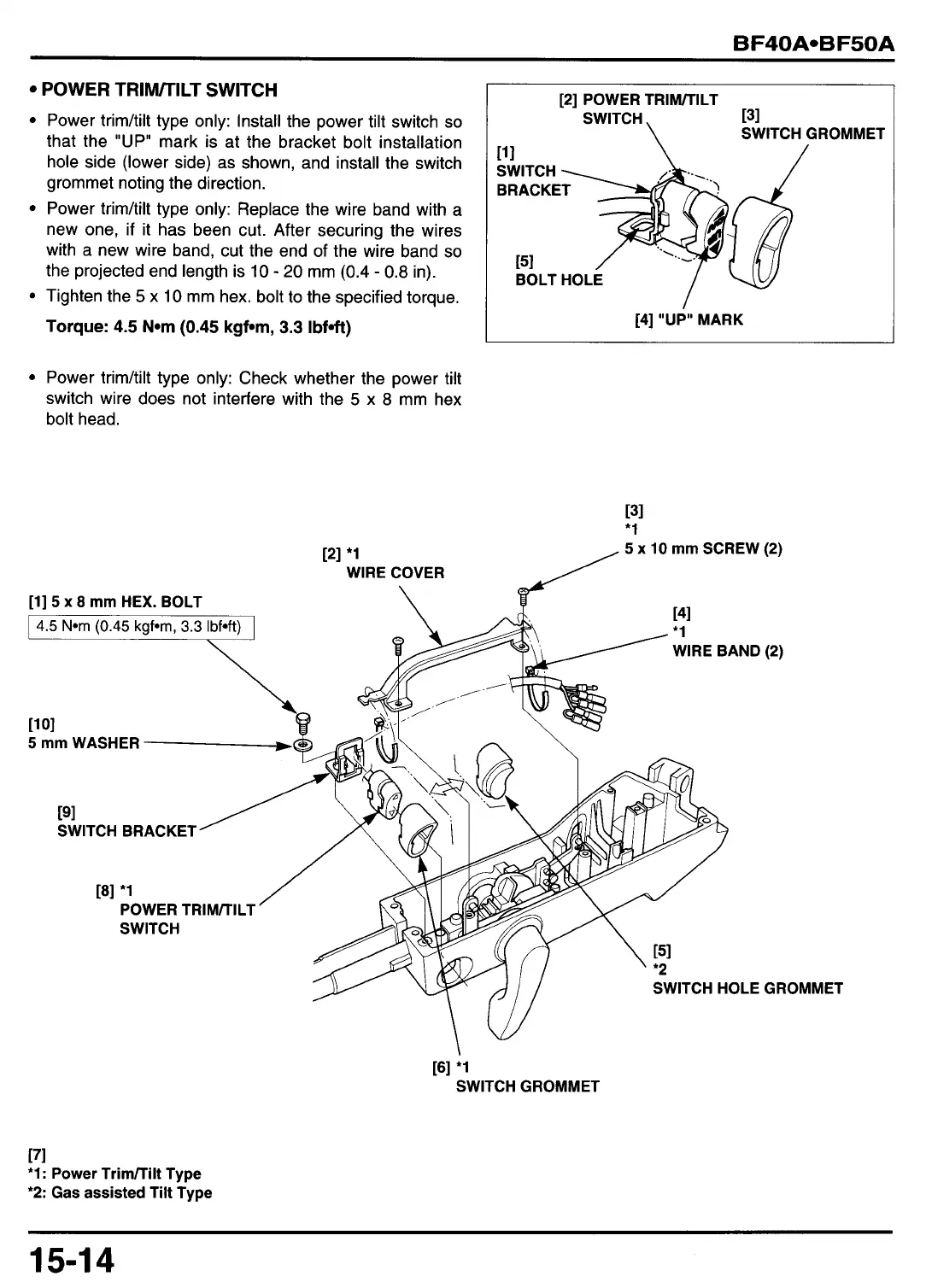

POWER TRIWILT SWITCH
Power trim/tilt type only: Install the power tilt switch
so
that the
"UP"
mark is at the bracket bolt installation
hole side (lower side) as shown, and install the switch
grommet noting the direction.
Power trimhilt type only: Replace the wire band with a
new one, if it has been cut. After securing the wires
with a new wire band, cut the end of the wire band
so
the projected end length is
10
-
20
mm
(0.4
-
0.8
in).
Tighten the
5
x
10
mm hex.
bolt
to the specified torque.
Torque:
4.5
N*m
(0.45
kgf*m,
3.3
Ibfuft)
[2] POWER TRIWILT
131
SWITCH GROMMET
\
/
[4]
"UP" MARK
Power trim/tilt type only: Check whether the power tilt
switch wire does not interfere with the
5
x
8
mm hex
bolt
head.
131
*1
5
x
10
mm SCREW (2)
11 01
5
mm WASHER
-&
SWITCH BRACKET
POWER TRlM/TlLT
SWITCH
SWITCH HOLE GROMMET
161
*1
SWITCH GROMMET
171
*1:
Power Trim/Tilt Type
*2: Gas assisted Tilt Type
15-1 4
