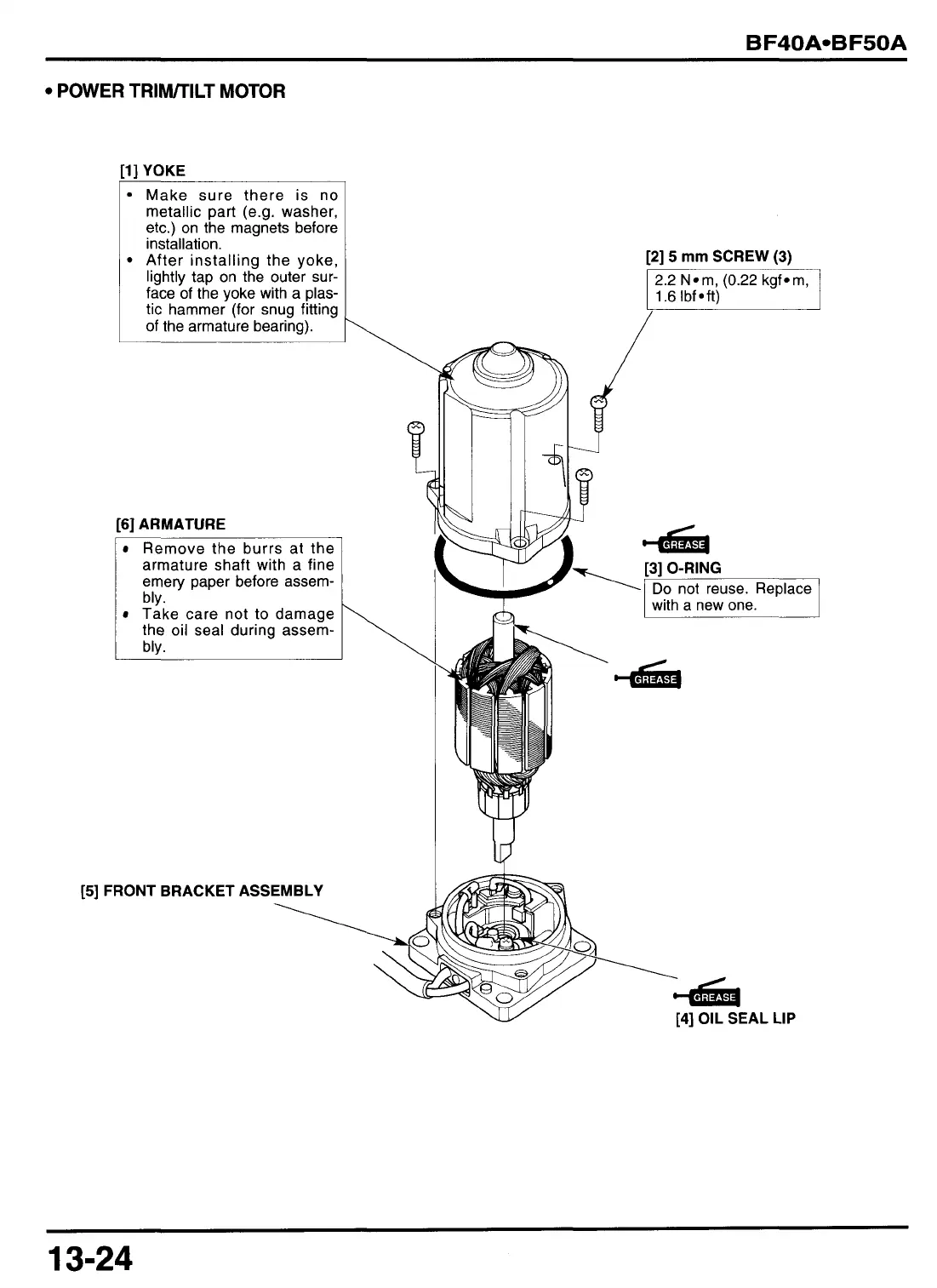

POWER
TRIM/TILT
MOTOR
9
Make sure there is no
metallic part (e.g. washer,
etc.) on the magnets before
installation.
After installing the yoke,
lightly tap
on
the outer sur-
face of the yoke with a
plas-
tic hammer (for snug fitting
of the armature bearing).
,
\
[S]
ARMATURE
Remove the burrs at the
armature shaft with a fine
emery paper before assem-
bly.
Take care not to damage
the oil seal during assem-
bly.
[5]
FRONT BRACKET ASSEMBLY
[2]5
mm
SCREW(3)
2.2
N
m,
(0.22
kgf m,
1.6
Ibf
*ft)
/
13-24
