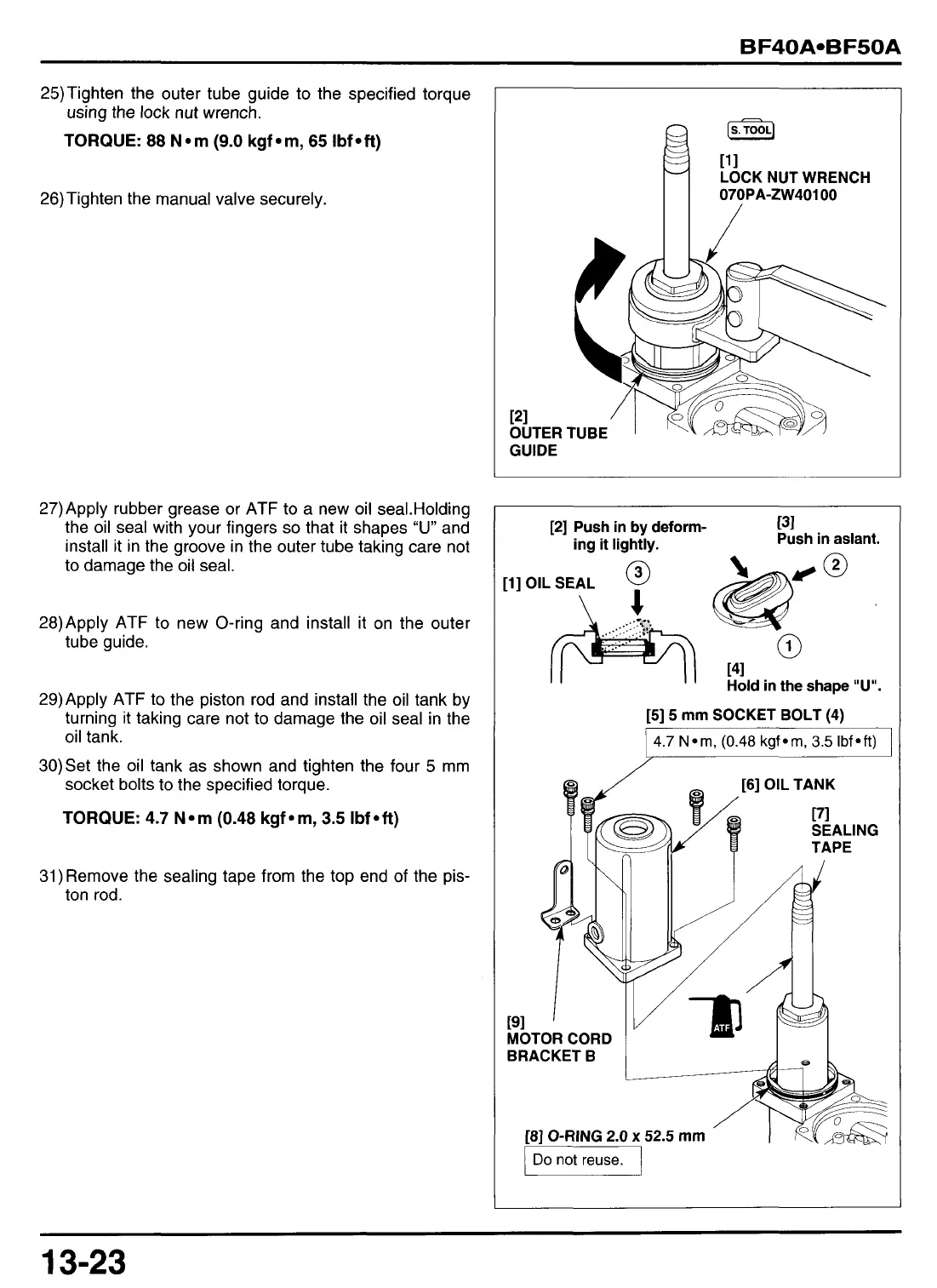

25)Tighten the outer tube guide to the specified torque
using the lock nut wrench.
TORQUE:
88 N*m
(9.0
kgf*m,
65
Ibf*ft)
26)Tighten the manual valve securely.
27)Apply rubber grease or ATF to a new oil seal.Holding
the oil seal with your fingers
so
that it shapes
“U”
and
install it in the groove in the outer tube taking care not
to damage the oil seal.
28)Apply ATF to new O-ring and install it on the outer
tube guide.
29)Apply ATF to the piston rod and install the oil tank by
turning it taking care not to damage the oil seal in the
oil tank.
30)Set the oil tank as shown and tighten the four
5
mm
socket bolts
to
the specified torque.
TORQUE:
4.7 N*m (0.48 kgfem,
3.5
Ibf*ft)
31)Remove the sealing tape from the top end of the pis-
ton rod.
(S.]
LOCK NUT WRENCH
070PA-ZW40100
121
OUTER TUBE
GUIDE
[2]
Push
in by deform-
PI
Push
in aslant.
ing it lightly.
[l] OIL SEAL
0
0
141
Hold
in the shape
“U”.
[5]
5 mm
SOCKET BOLT (4)
14.7
N*m,
(0.48
kgf*m,
3.5
Ibf*ft)
1
-
161
OILTANK
~
DO
not
reuse.
I
13-23
