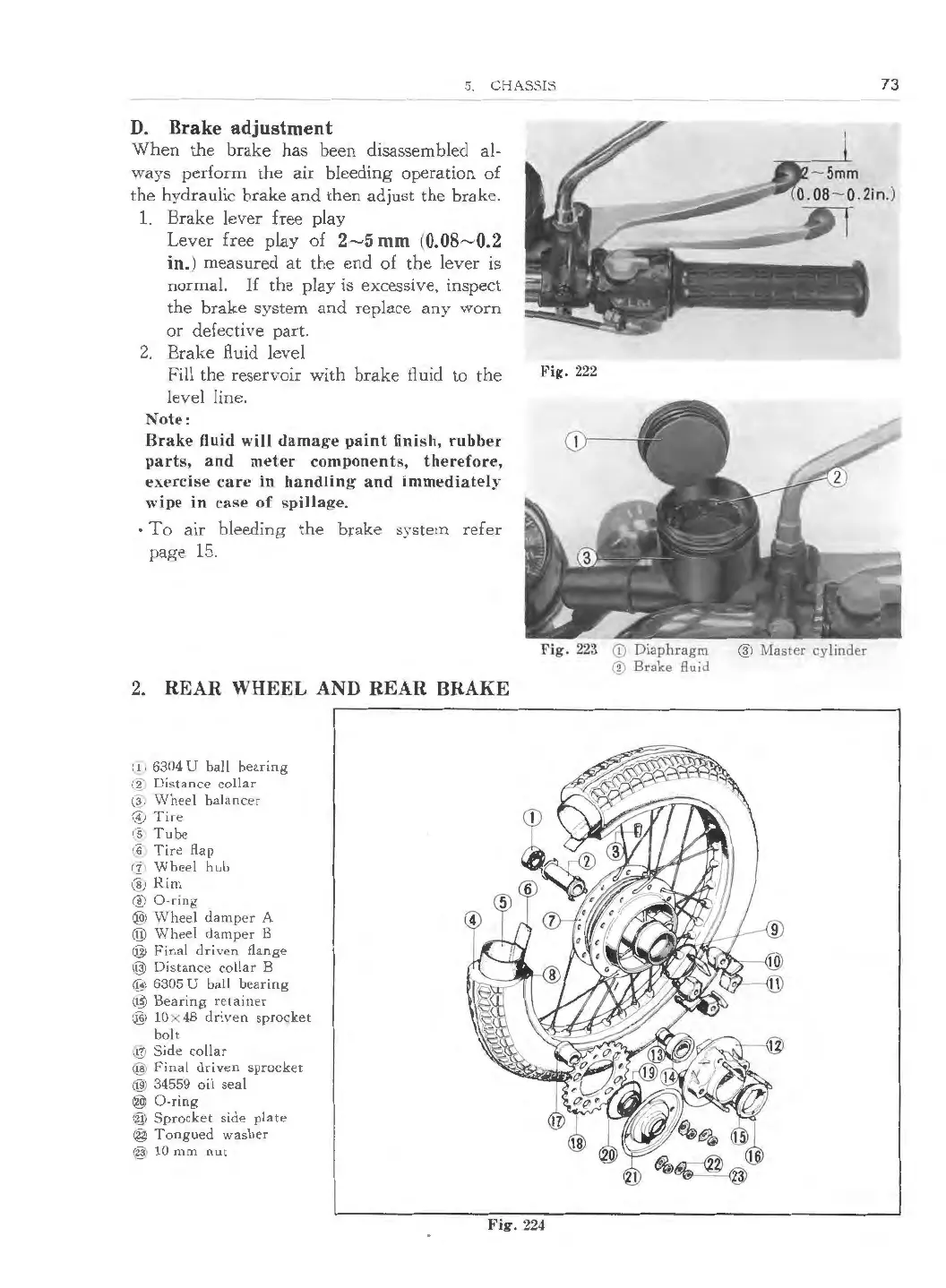

5. CHASSlS
D. Brake adjustment
When the brake has been disassembled al-
ways perform the air bleeding operation of
the hydraulic brake and then adjust the brake.
1. Brake lever free play
Lever free play of 2~ 5 mm (0.08~ 0.2
in. ) measured at the end of the lever is
normal.
If the play is excessive, inspect
the brake system and replace any worn
or defective part.
2. Brake fluid level
Fill the reservoir with brake fluid to the
level line.
Note:
Brake fluid will damage pain t finish, rubber
parts, and meter components, therefore,
exercise care in handling and immediately
wipe in case of spillage.
· To air bleeding the brake system refer
page 15.
Fig. 222
73
- 5mm
0.08- 0.2in.)
Fig. 223 (D Diaphragm @ Master cylinder
2. REA R WHEEL AND REAR BRAKE
1 6304 U ball bearing
2 Distance collar
~
Wheel balancer
© Tire
'5 Tube
'6 Tire flap
(f, Wheel hub
@ Rim
® 0-ring
'io Wheel damper A
,fD Wheel damper B
@ Final driven flange
@ Distance collar B
1B 6305 U ball bearing
~
Bearing re1ainer
® 10x48 driven sprocket
bolt
@ Side collar
@ Final driven sprocket
@) 34559 oil seal
® 0-ring
@ Sprocket side plate
@ Tongued washer
~
10 mm nut
CD
Fig. 224
2) Brake fluid
®
@
