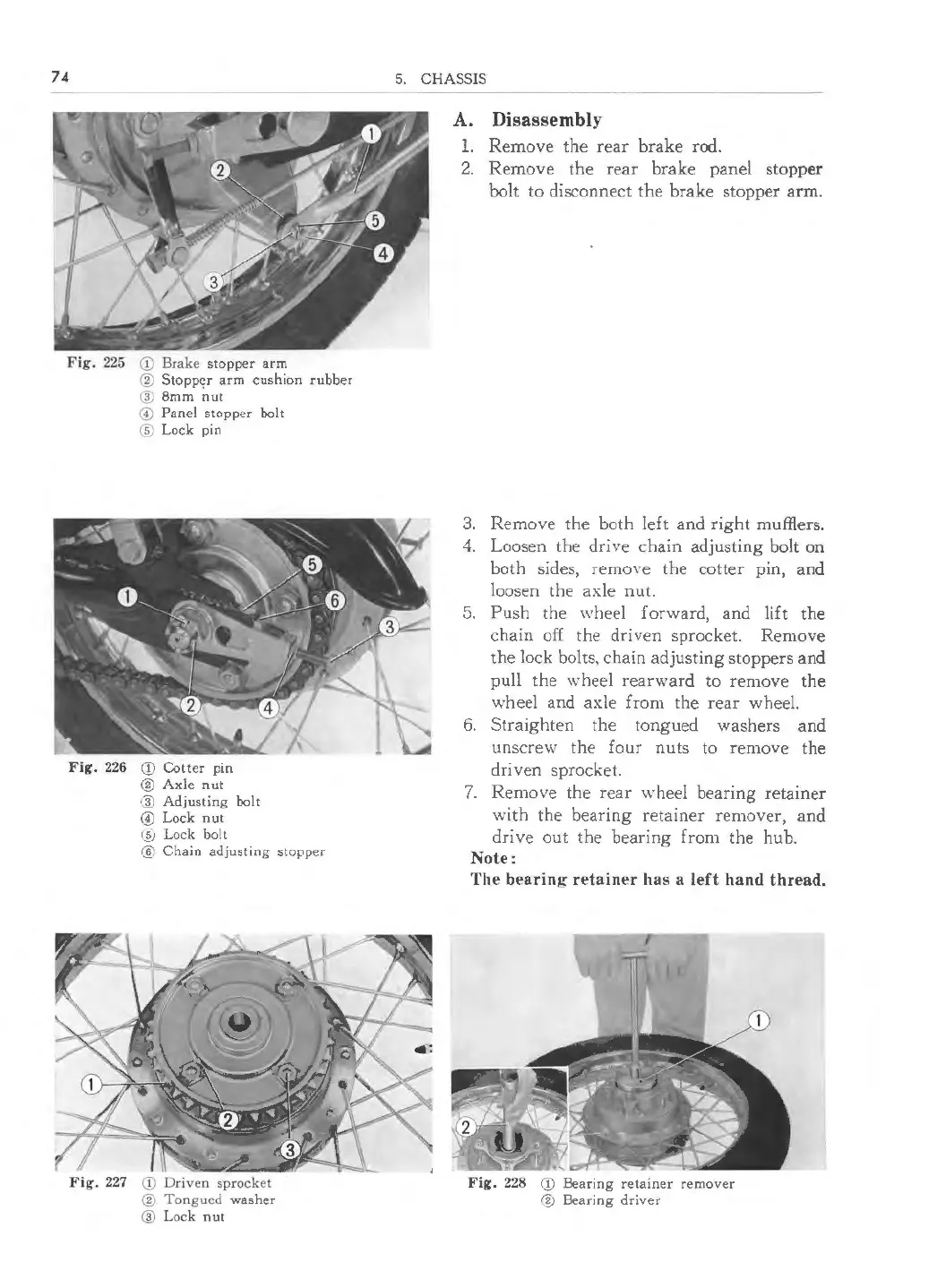

74
Fig. 225 (D Brake stopper arm
@ Stopper arm cushion rubber
® 8mm ~ut
© Panel stopper bolt
® Lock pin
Fig. 226 (D Cotter pin
@ Axle nut
® Adjusting bolt
© Lock nut
® Lock bolt
® Chain adjusting stopper
Fig. 227 (D Driven sprocket
@ Tongued washer
®Locknut
5. CHASSIS
A. Disassembly
1. Remove the rear brake rod.
2. Remove the rear brake panel stoppe r
bolt to disconnect the brake stopper arm .
3. Remove the both left and right mufflers.
4. Loosen the drive chain adjusting bolt on
both sides, remove the cotter pin, and
loosen the axle nut.
5. Push the \\'heel forward, and lift the
chain off the driven sprocket. Remove
the lock bolts, chain adjusting stoppers and
pull the wheel rearward to remove the
wheel and axle from the rear wheel.
6. Straighten the tongued washers and
unscrew the four nuts to remove the
driven sprocket.
7. Remove the rear ,vheel bearing retainer
with the bearing retainer remover, and
drive out the bearing from the hub.
Note:
The bearing retainer has a left hand thread.
Fig . 228 <D Bearing retainer remover
® Bearing driver
