5. CHASSIS
8. Remove the two cotter pins and washer
from the brake shoe anchor posts.
B. Inspection
1. Check rim runout and wobble.
2. Check rear axle shaft runout.
3. Check brake lining wear.
4. Check brake drum wear.
5. Check ball bearing wear.
6. Check for loose spokes, bending and da-
mage. Tighten, straighten or replace as
necessary.
7. Check tire on both inside and outside for
cuts, bruises, and imbedded of nails.
Repair or replace as necessary.

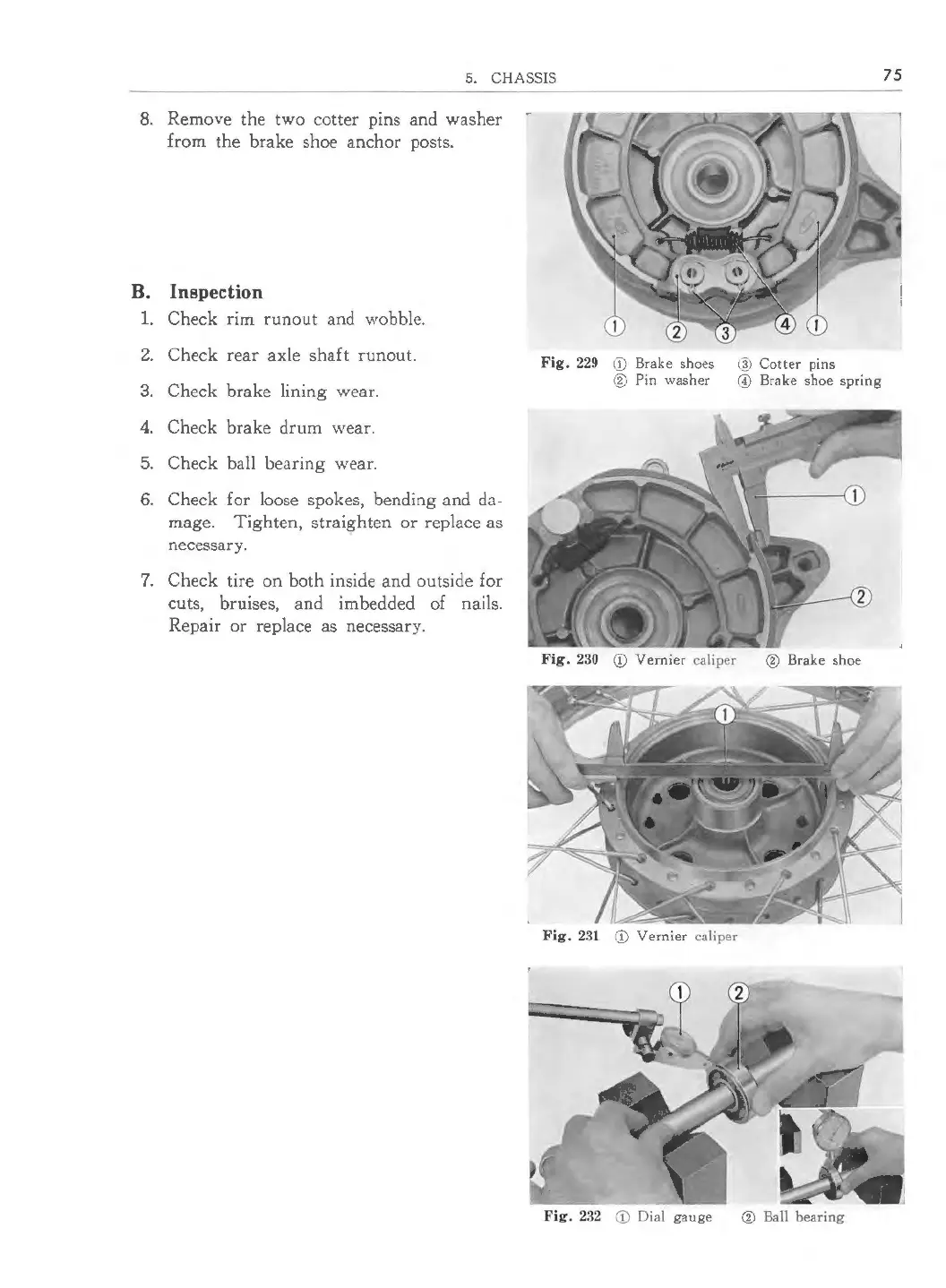

Fig. 229 (i) Brake shoes
® Pin washer
@ Cotter pins
© Brake shoe spring
Fig. 230 © Vernier caliper ® Brake shoe
Fig . 231 © Vernier caliper
Fig . 232 (i) Dial gauge
® Ball bearing
75
