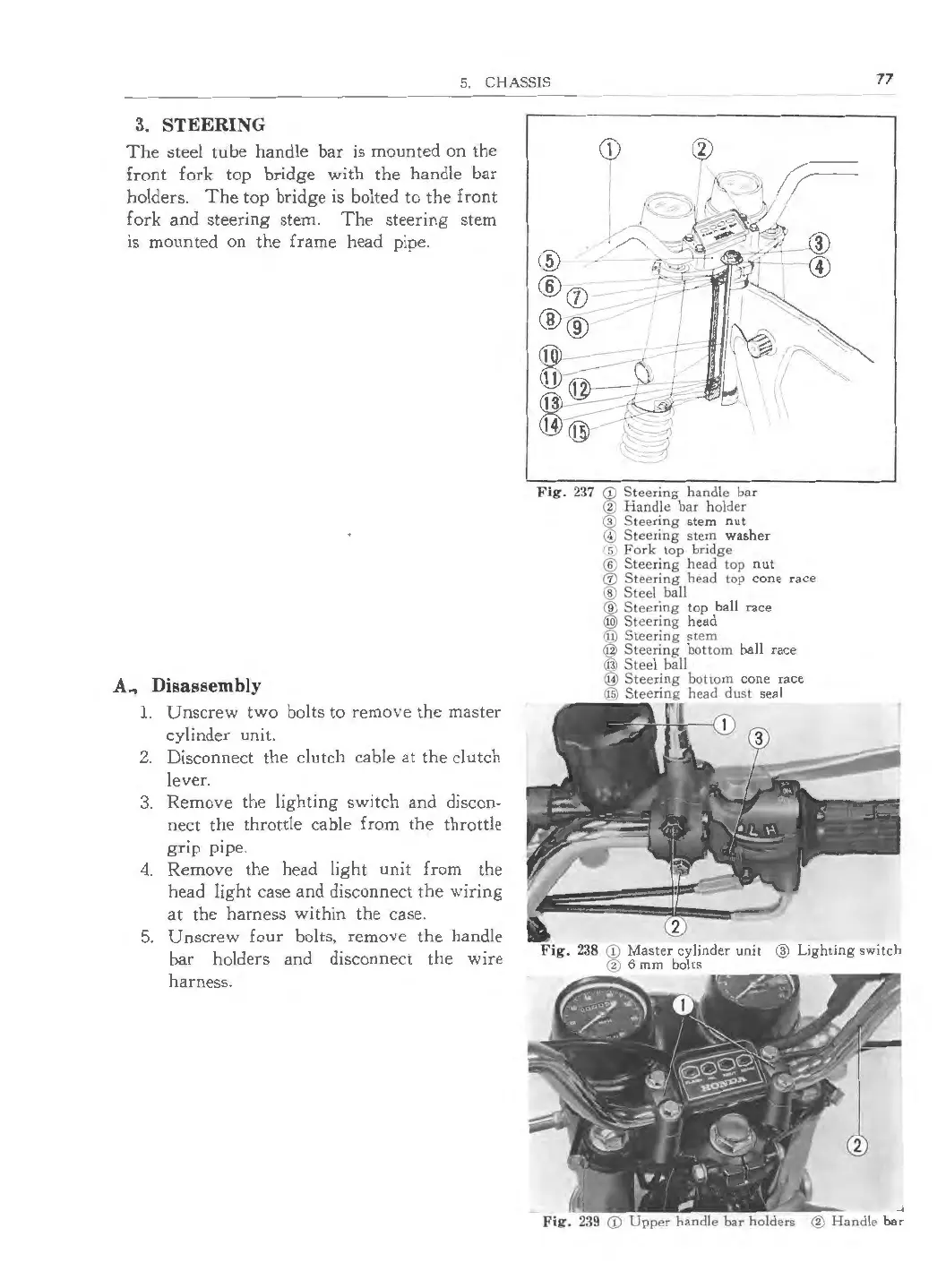

5. CHASSIS
77
3. STEERING
The steel tube handle bar is mounted on the
front fork top bridge with the handle bar
holders. The top bridge is bolted to the front
fork and steering stem. The steering stem
is mounted on the frame head pipe.
A~ Disassembly
1. Unscrew two bolts to remove the master
cylinder unit.
2. Disconnect the clutch cable at the clutch
lever.
3. Remove the lighting switch and discon-
nect the throttle cable from the thrott le
grip pipe.
4. Remove the head light unit from the
head light case and disconnect the wiring
at the harness within the case.
5. Unscrew four bolts, remove the hand le
bar holders and disconnect the wire
harness.
Fig, 237 I Steering handle bar
2 Handle bar holder
3 Steering stem nut
4 Steering stem washer
SJ Fork top bridge
® Steering head top nut
(z) Steering head top cone race
~
Steel ball
® Steering top ball race
@J Steering head
@ Steering stem
@ Steering bottom ball race
@ Steel ball
@ Steering bottom cone race
@ Steering head dust seal
l
Fig. 238 CD Master cylinder unit
~
Lighting switch
~
6 mm bolts
Fig . 239 CD Upper handle bar holders @ Handle bar
