5.
Loosen the right axle pinch bolt.
6.
Remove the front axle bolt.
7.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
8.
Loosen the left axle pinch bolt.
9.
On the left side, withdraw the front axle
shaft, and remove the side collars and
wheel.
20161220114015_32MJED100_eng_BOOK Page 93 Tuesday, December 20 2016 11:43:47 JST
Tyre Puncture u Removing Wheels
Troubleshooting
90

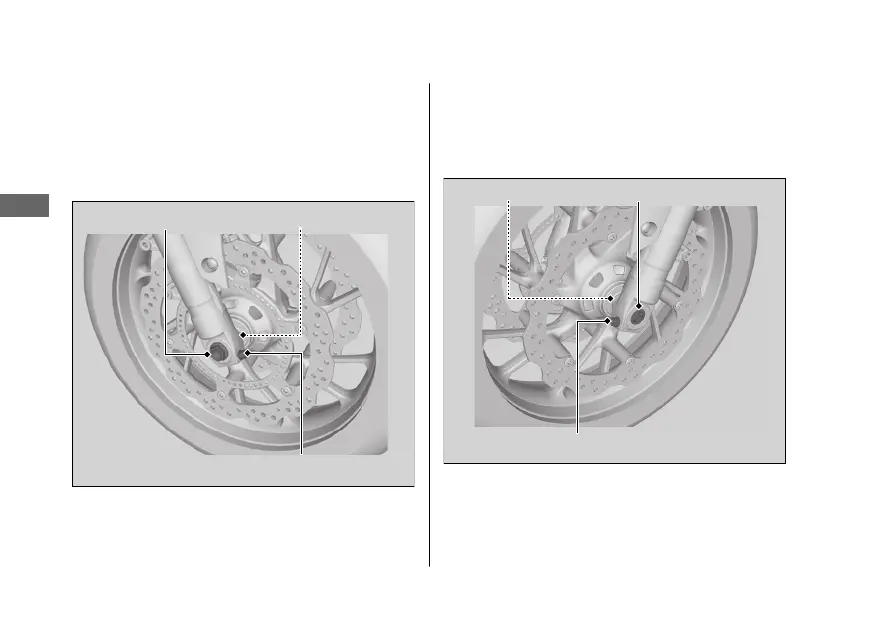

Axle pinch bolt
Front axle bolt
Side collar
Axle pinch bolt
Front axle shaftSide collar
