Installation
1.
Attach the side collars to the wheel.
2.
On the left side, place the wheel between
the fork legs and insert the lightly greased
front axle shaft to the end, through the
left fork leg and wheel hub.
3.

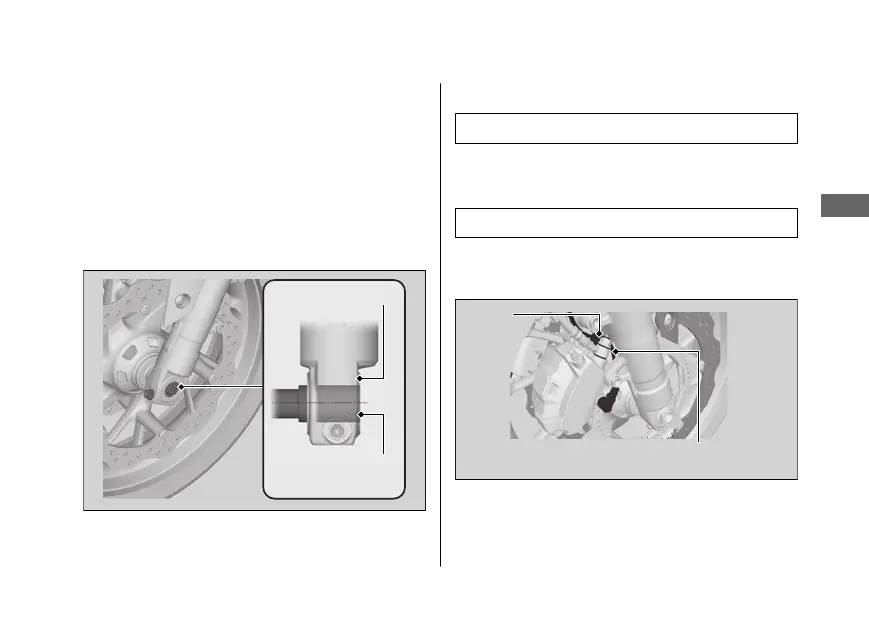

Align the end of the front axle shaft with
the surface of the fork leg.
4.
Tighten the left axle pinch bolt to hold the
axle.
5.
Tighten the axle bolt.
Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft).
6.
Loosen the left axle pinch bolt.
7.
Tighten the right axle pinch bolt.
Torque: 22 N·m (2.2 kgf·m, 16 lbf·ft).
8.
Secure the wheel speed sensor wire with
the clamp.
20161220114015_32MJED100_eng_BOOK Page 94 Tuesday, December 20 2016 11:43:47 JST
Tyre Puncture u Removing Wheels
Troubleshooting
91
Continued
Surface of fork
leg
End of front
axle shaft
Wheel speed
sensor wire
Clamp
To Next Page
