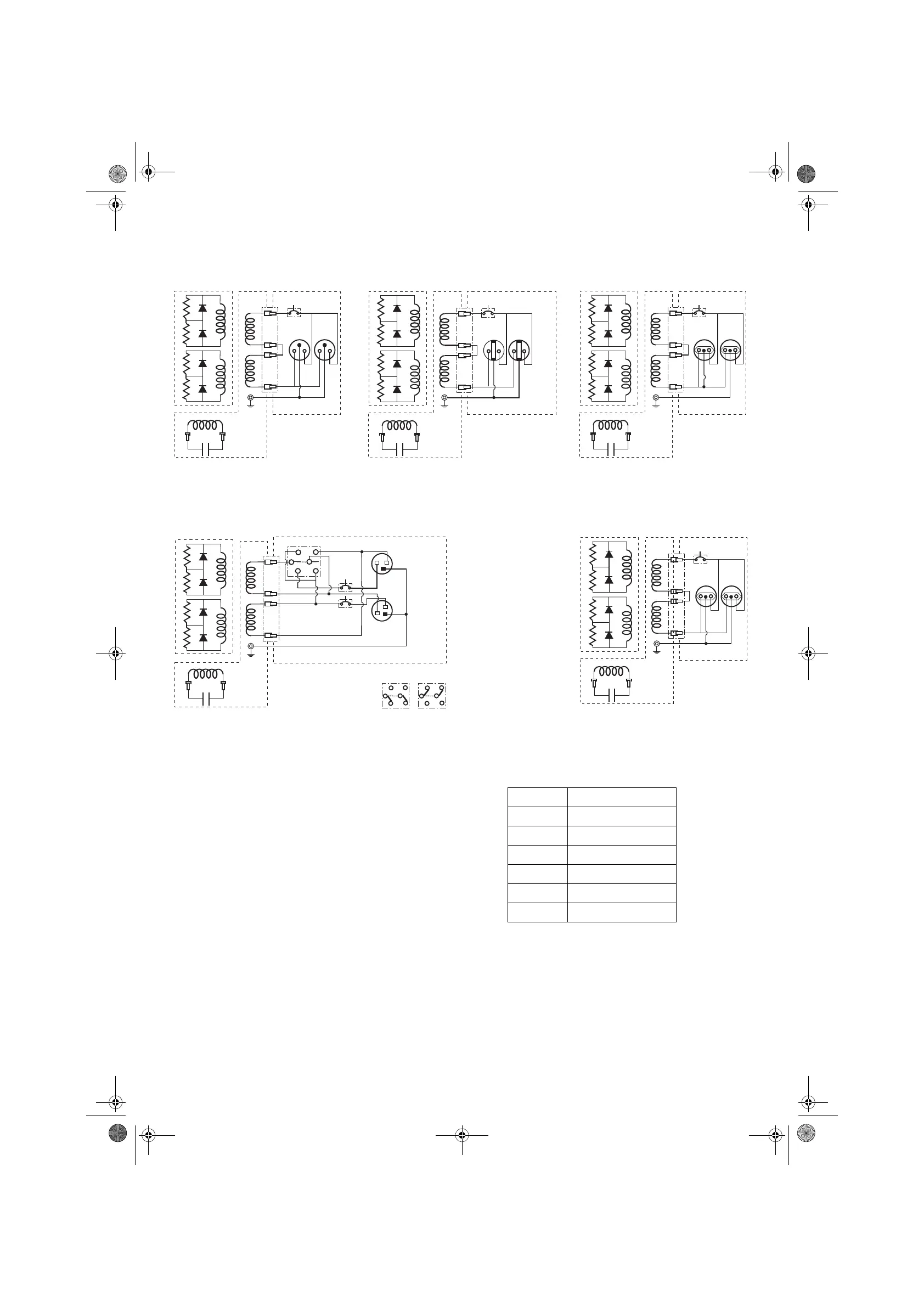

WIRING DIAGRAMS
EC2000
[1] Rotor
[2] Stator
[3] Socket box
[4] Field coil
[5] Ground
[6] Circuit breaker
[7] Condensor
[8] Switch (115 V~ / 230 V~)
[9] Switch in 230 V~ position
[10] Switch in
115 V~ position
[4]
[5]
10A
R
W
Br
R
R
Br
Bl
Bl
Bl
Bl
Y/G
Y/G
[5]
10A
R
W
Br
R
R
Br
Bl
Bl
Bl
Bl
Y/G
Y/G
10A
R
W
Br
R
R
Br
Bl
Bl
Bl
Bl
Y/G
Y/G
10A
R
W
Br
R
R
Br
Bl
Bl
Bl
Bl
Y/G
Y/G
F GV, GVW
W
IT
[6]
[6]
[6]
[7]
[6]
[4]
[5]
[4]
[5]
[7]
10A
R
W
Br
Br
Bl
Bl
Bl
Bl
Y/G
Y/G
B
20A
R
Y/G
W
Br
W
W
Br
Gr
Gr
[6]
[6]
[8]
(230V~)
(115V~)
[4]
[5]
[7]
[9] [10]
(230V~) (115V~)
[1] [2] [3]
[7]
[1] [2] [3]
[1] [2] [3] [1] [2] [3]
[1] [2] [3]
[4]
[7]
Wiring color codes
Br Brown
GGreen
Gr Grey
B
l Blue
RRed
WWhite
Y Yellow
