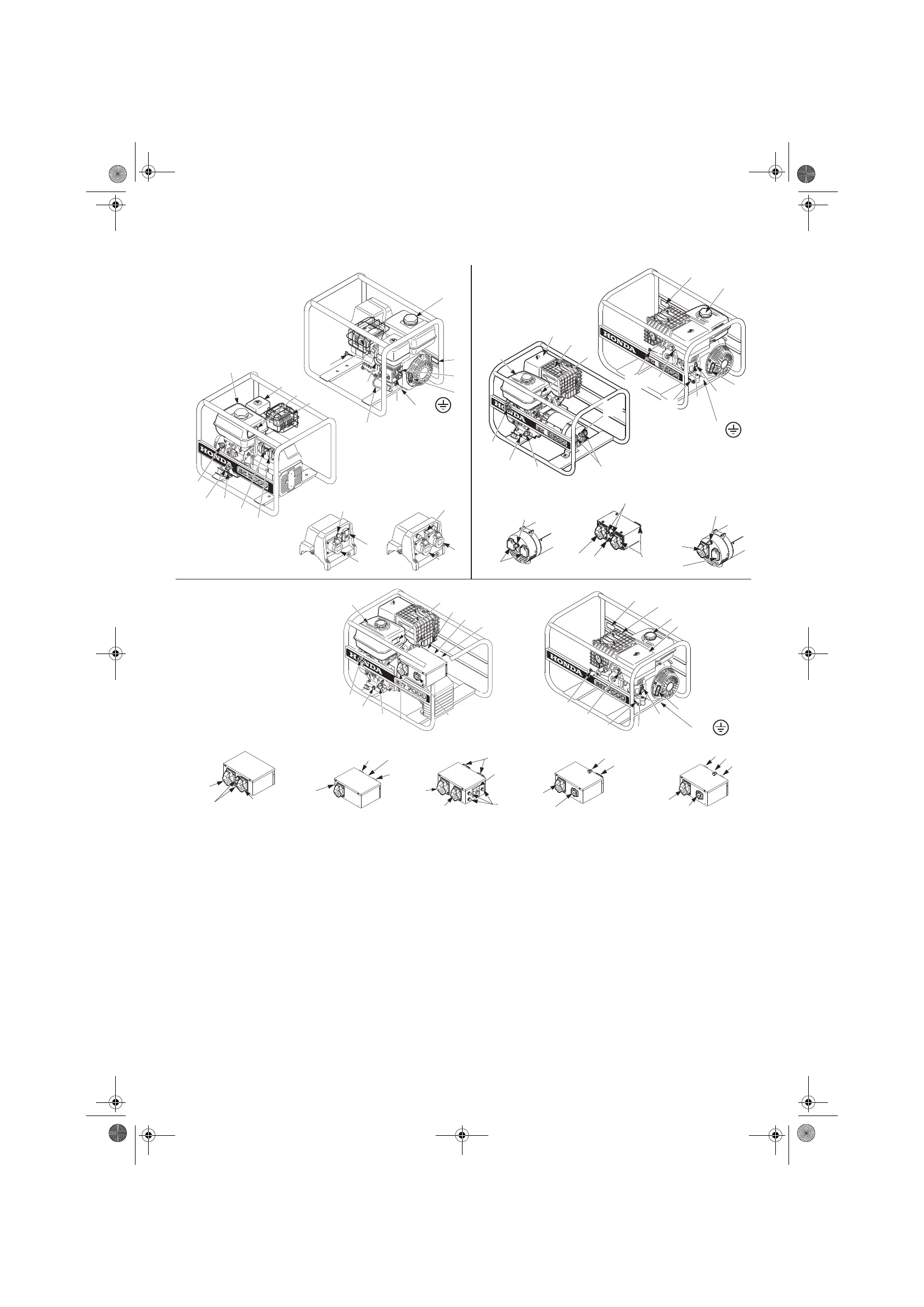

ALGEMENE BESCHRIJVING
(De illustraties die hier staan afgebeeld, zijn gebaseerd op type F, GV, GVW).
[1] Tankdop [13] Motorolie aftapdop
[2] Benzinetank [14] Schakelaar van de motor
[3] Repeteerstarter hangreep [15] Spannungswähler 115 / 230 V, typ B
[4] Benzinekraantje [16] Kontaktdoos 230 V / 16 A CEE (blauwe) typen B, IT
[5] Hendel van de choke [17] Kontaktdoos 230 V / 16 A (zwart) typ F (blauwe) typen GV, GVW, IT
[6] Massastrip [18] Kontaktdoos 230 V / 10 A (zwart) typ W
[7] Bougiedop [19] Kontaktdoos 115 V / 16 A CEE (geel) typ B
[8] Oliepeilstok [20] Kontaktdoos 115 V / 32 A CEE (geel) typ B
[8’] Olievuldop (onderling berwisselbaar met [8] naar gelang de behoeften) [21] Kontaktdoos 230 V / 16 A (blauwe) typen F, GV, GVW, RG
[9] Luchfilter [22] Kontaktdoos 400 V / 16 A (rood) typen F, GV, GVW, IT, RG
[10] Sticker met technische specificaties [23] Kontaktdoos 230 V / 32 A CEE (blauwe) typ IT, F
[11] Uitlaat [24] Aard-aansluiting
[12] Thermische stroomverbreker [A] Identifikatieplaatje “serienummer”
