Before adjusting the handlebar, place the tiller on the firm level
ground to prevent the handle from collapsing accidentally.
Handlebar height adjustment
MAIN SHIFT LEVER
MANDLE COLUMN
CHANGE COVER
HANDLE HEIGHT ADJUSTER

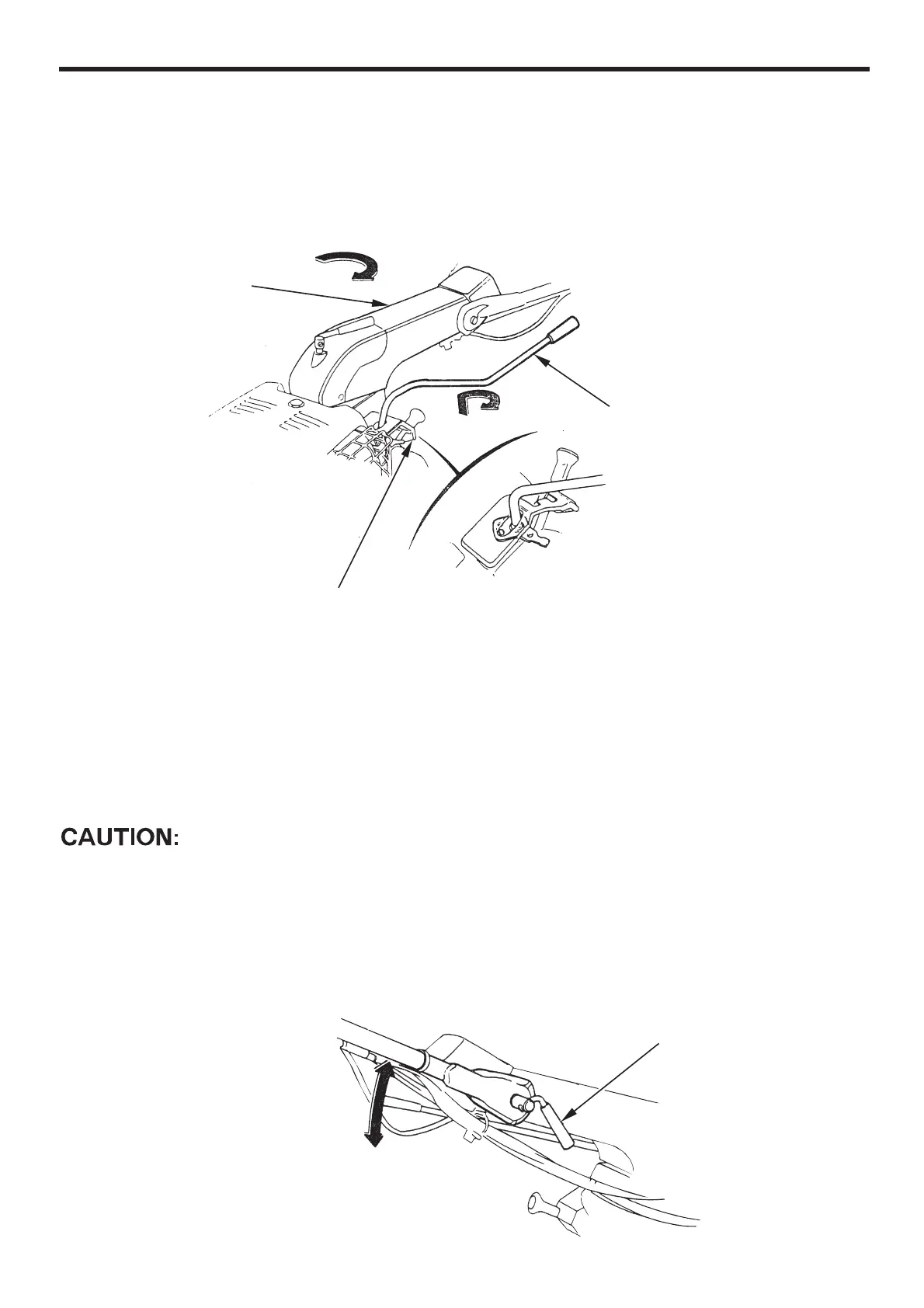

To adjust the handlebar height, loosen the adjuster, select the
appropriate position and tighten the adjuster.
The handle position should be adjusted to suit the stature of the
operator and work condition.
When the handle column is swung to the left, also turn the shift
lever not to interfere with the handle column. Pull the main shift
lever up to release it from the change cover and turn clockwise.
