41

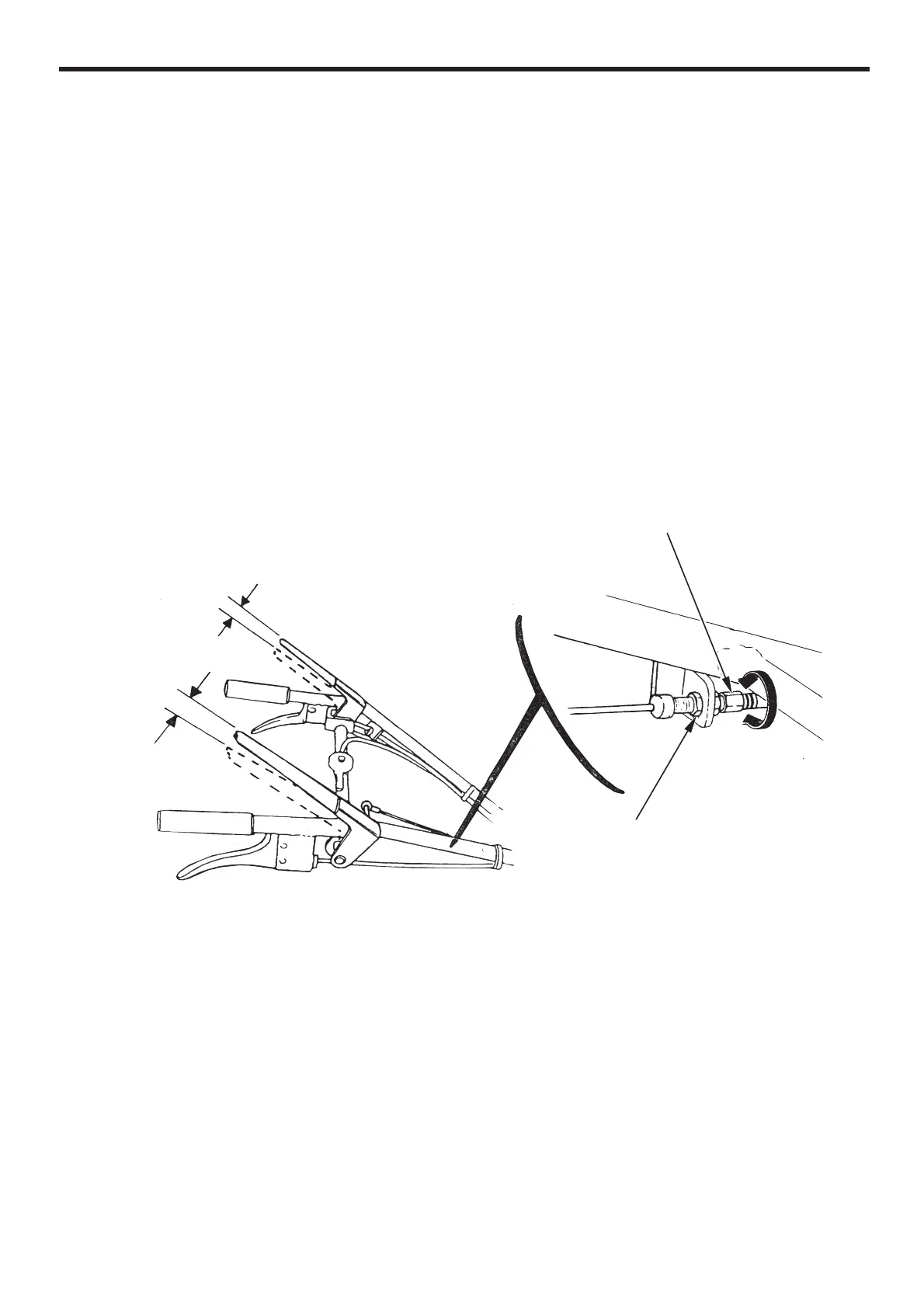

Main clutch cable adjustment
LOCK NUT
ADJUSTING BOLT
FREE PLAY
FREE PLAY
With the clutch disengaged, measure the free play at the lever end.
Free play:
If the free play is incorrect, loosen the lock nut and turn the adjusting
bolt in or out as required.
Remove the belt cover, and perform the adjustment while pressing the
tension roller down with your hand.
After adjusting the cable free play, tighten the lock nut securely.
1.0 5.0 mm (0.04 0.20 in)
