Working light bulb replacement (GE type only)

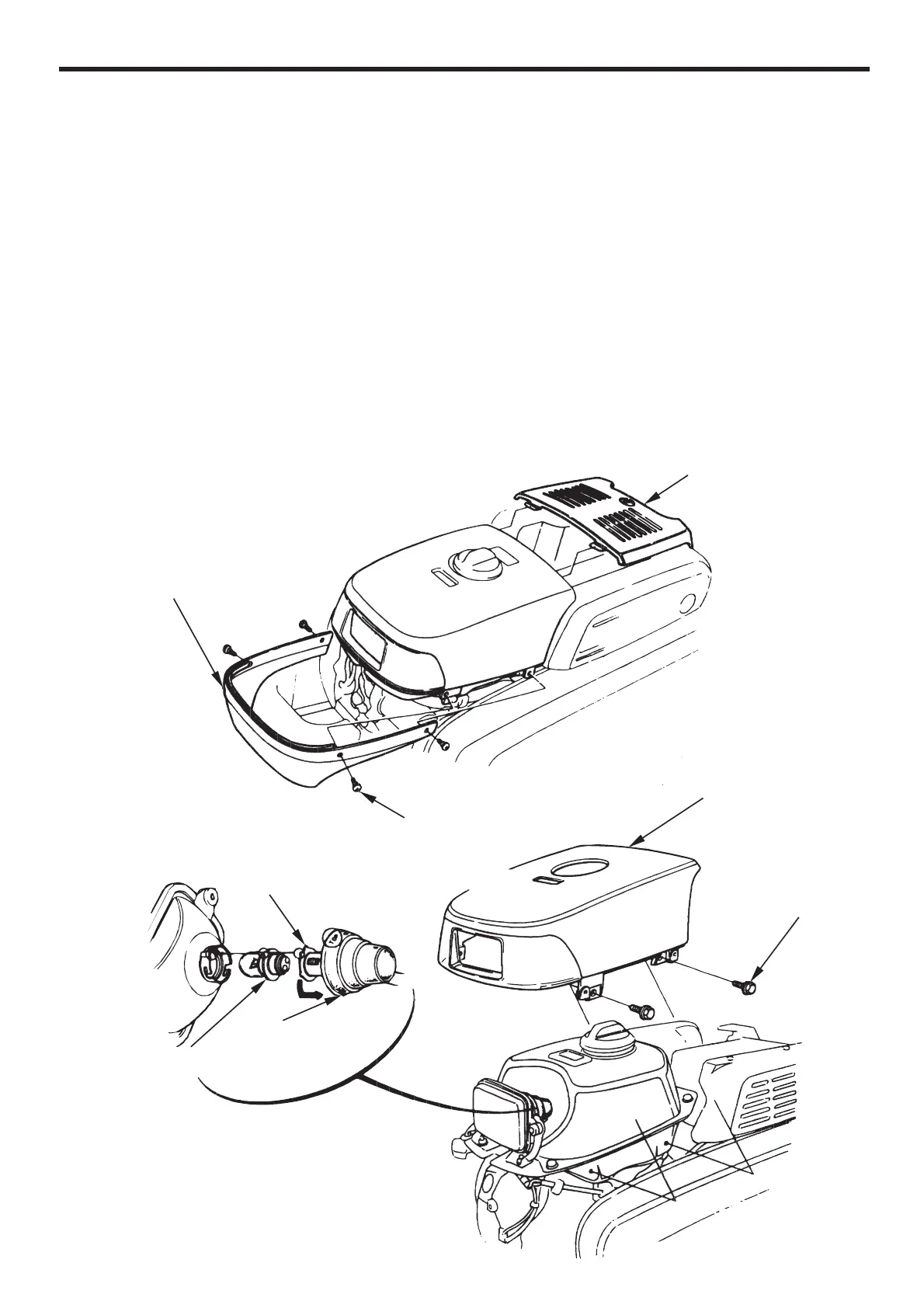

WORKING LIGHT BULB
ENGINE HOOD
6mmBOLT
5 mm SCREW
LOWER COVER
BULB SOCKET
MAINTENANCE LID
RUBBER BOOT
Replacement bulb: 12V-25W
Pull off the maintenance lid.
Remove the lower cover by removing four 5 mm screws.
Remove the four 6 mm bolts and the engine hood.
Pull off the rubber boot, then remove the bulb by pushing and
turning it counterclockwise.
Install a new bulb by aligning the boss of the bulb with the groove of
the bulb socket.
Reinstall the removed parts in the reverse order of disassembly.
1.
2.
3.
4.
5.
6.
