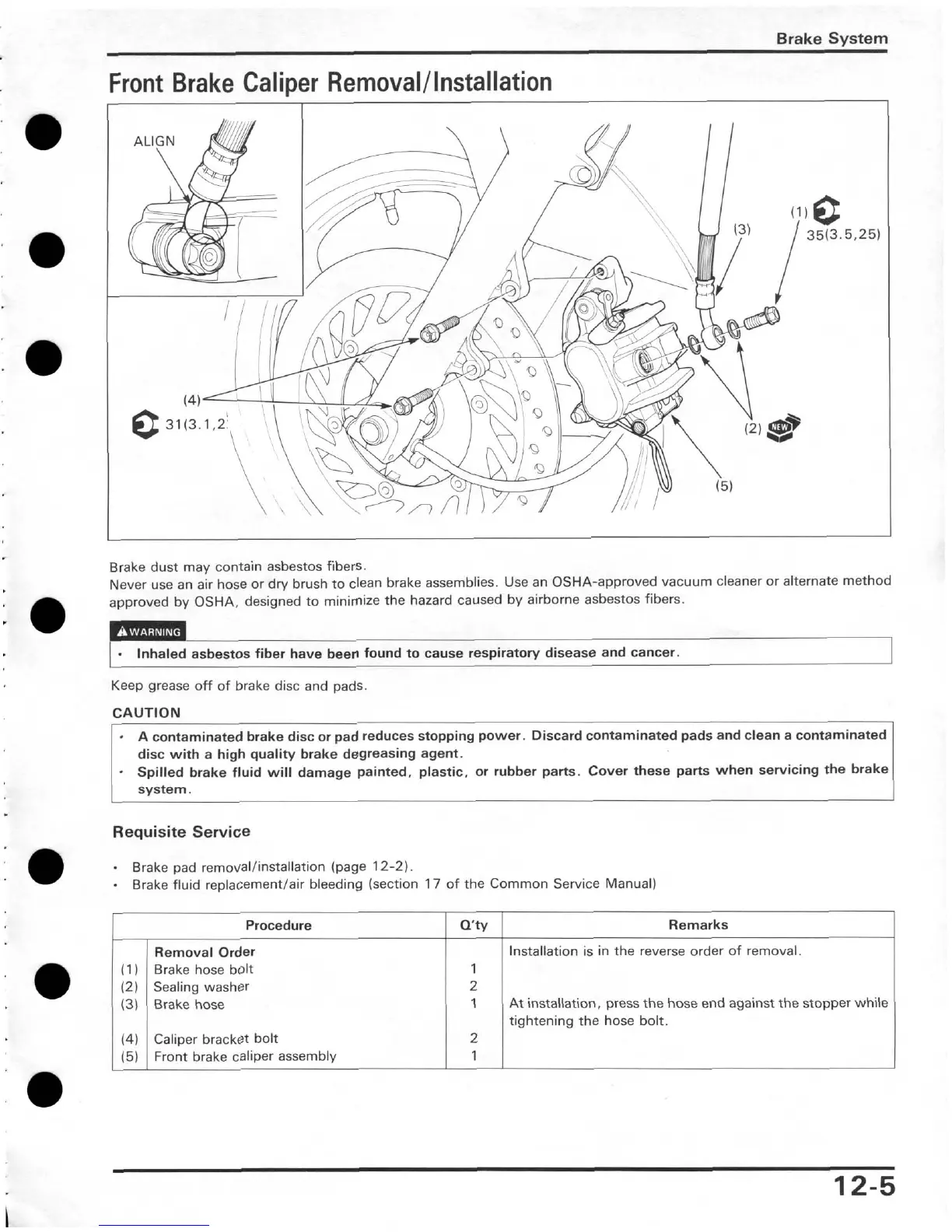

Brake System
Front Brake Caliper Removal/lnstallation
Brake dust may contain asbestos fibers.
Never use an air hose or
drv brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner or alternate method
approved by OSHA, designed to
minimlze the hazard caused by airborne asbestos fibers.
:
.
-
Inhaled asbestos fiber have been found to cause respiratory disease and cancer.
Keep grease off of brake disc and pads.
CAUTION
I
.
A contaminated brake disc or
ad
reduces stopping power. Discard contaminated pads and clean a contaminated
/
..
-~
disc
with
a high quality brake degreasing agent.
Spilled brake fluid
will
damage painted, plastic, or rubber parts. Cover these parts when servicing the brake
system.
Requisite Se~ioe
:.
.
Brake pad removal/installation (page 12-2).
.
Brake fluid replacementlair bleeding (section 17 of the Common Service Manual)
7
Procedure
I
Q'tv
I
Remarks
1
r
I
Removal Order
I
1
Installation is in the reverse order of removal.
1
,
.
(1
1
(2)
(3)
(4)
(5)
Brake hose bolt
Seallng washer
Brake hose
Callper bracket bolt
Front brake
callper assembly
1
2
1
2
1
At ~nstallat~on, press the hose end agalnst the stopper whlle
tlghtenlng the hose bolt
