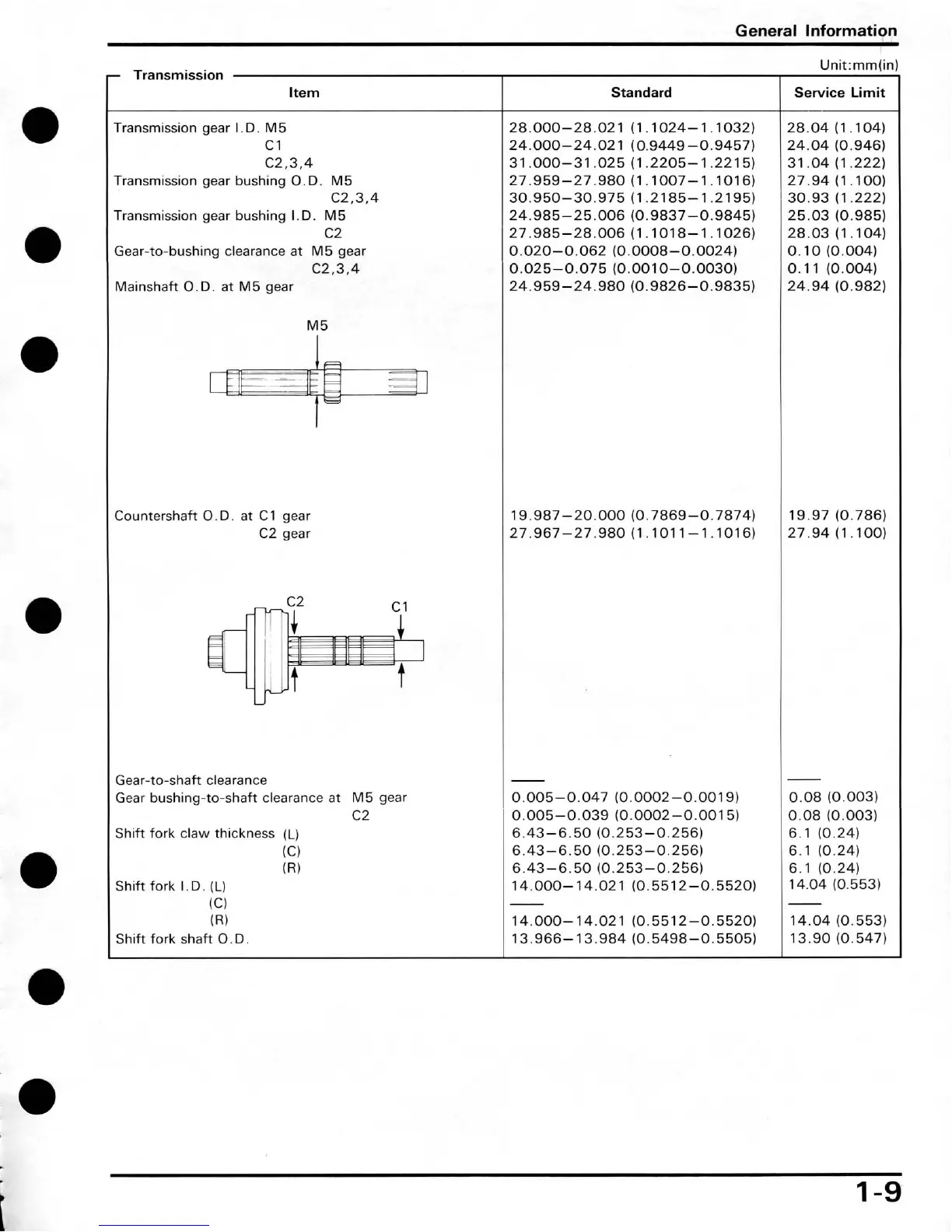

General Information
-
Transmission
Item
Transmission gear I.D. M5
C 1
C2.3.4
Transmission gear bushing
O.D. M5
C2.3.4
Transmission gear bushing I.D. M5
C2
Gear-to-bushing clearance at M5 gear
C2.3.4
Mainshaft OD. at M5 gear
M5
Countershaft O.D. at
C1 gear
C2 gear
Gear-to-shaft clearance
Gear bushing-to-shaft clearance at M5 gear
C2
Shift fork claw thickness (Lj
(Cl
(R)
Shift fork I. D. (L)
(C)
(R)
Shift
fork
shaft O.D.
Standard
28.000-28.021 (1.1024-1.1032)
24.000-24.021
(0.9449-0.9457)
31.000-31.025 (1.2205-1.221 5)
27.959-27.980 (1.1007-1.1016)
30.950-30.975 (1.2185-1.2195)
24.985-25.006 (0.9837-0.9845)
27.985-28.006 (1.1018-1.1026)
0.020-0.062 (0.0008-0.0024)
0.025-0.075 (0.0010-0.0030)
24.959-24.980 (0.9826-0.9835)
19.987-20.000 (0.7869-0.7874)
27.967-27.980 (1.1011-1.1016)
-
0.005-0.047 (0.0002-0.0019)
0.005-0.039 (0.0002-0.0015)
6.43-6.50 (0.253-0.256)
6.43-6.50 (0.253-0.256)
6.43-6.50 (0.253-0.256)
14.000-14.021 (0.5512-0.5520)
-
14.000-14.021 (0.5512-0.5520)
13.966-13.984 (0.5498-0.5505)
Service Limit
-
28.04 (1.104)
24.04 (0.946)
31.04 (1.222)
27.94 (1.100)
30.93 (1.222)
25.03
(0.985)
28.03 (1.104)
0.10 (0.004)
0.1 1 (0.004)
24.94 (0.982)
19.97
(0.786)
27.94 (1.100)
-
0.08 (0.003)
0.08 (0.003)
6.1 (0.24)
6.1 (0.24)
6.1 (0.24)
14.04 (0.553)
-
14.04 (0.553)
13.90 (0.547)
