Lubrication Svstem

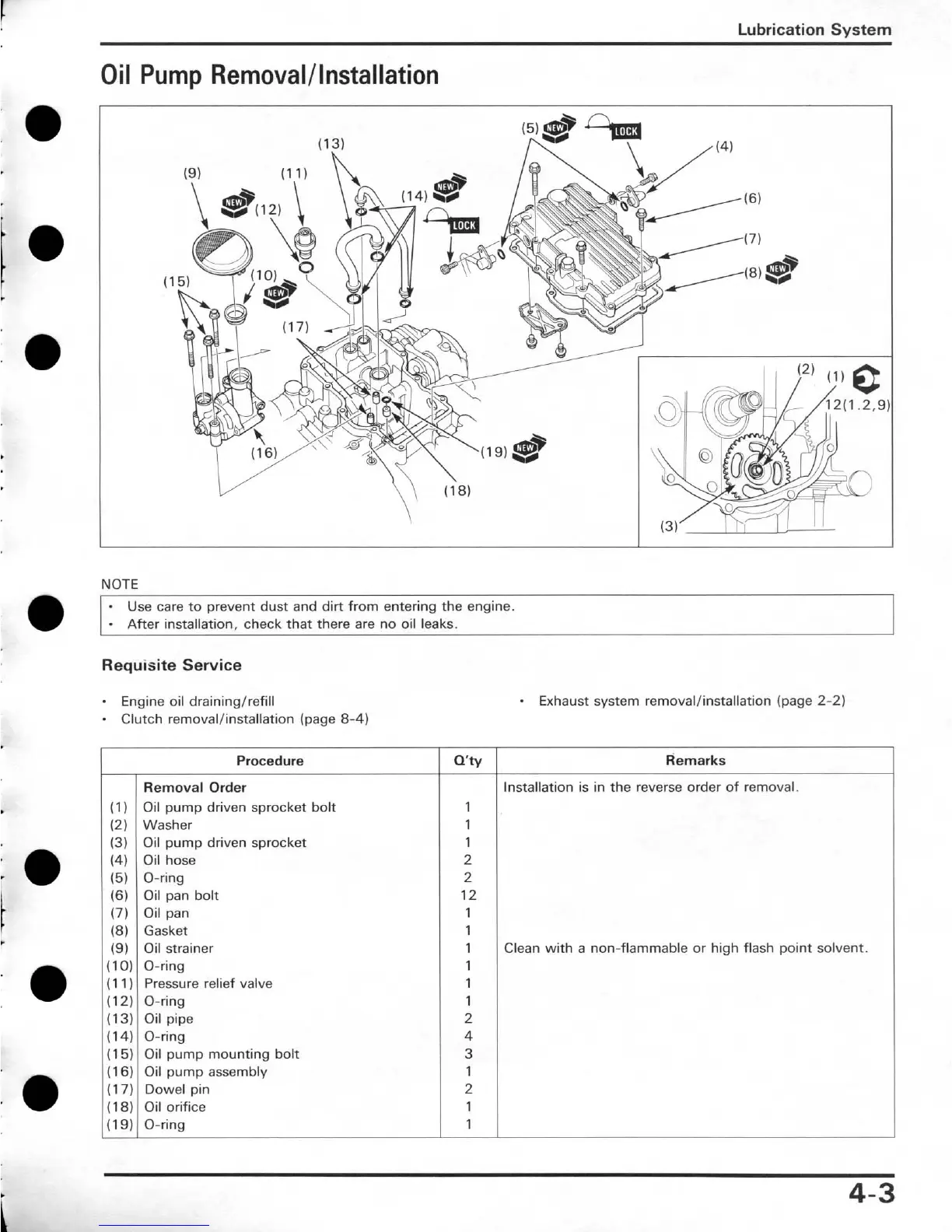

Oil Pump Removal/lnstallation
NOTE
-
Use care to prevent dust and dirt from entering the engine.
After installation, check that there are no oil leaks.
Requisite Service
Engine oil draininglrefill
.
Clutch rernoval/installation (page 8-41
Exhaust system rernovallinstallation (page 2-2)
I
Procedure
(1
)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(1
0)
(1 1
1
(12)
(13)
(14)
(1
5)
(1
6)
(17)
(1 8)
(19)
Q'W
1
1
1
2
2
12
1
1
1
1
1
1
2
4
3
1
2
1
1
Removal Order
Oil pump driven sprocket bolt
Washer
Oil pump driven sprocket
Oil hose
O-ring
Oil pan bolt
Oil pan
Gasket
Oil strainer
O-ring
Pressure relief valve
O-ring
Oil pipe
O-ring
Oil pump mounting bolt
Oil pump assembly
Dowel pin
Oil orifice
O-ring
Remarks
Installation is in the reverse order of removal.
Clean with a non-flammable or high flash
polnt solvent.
