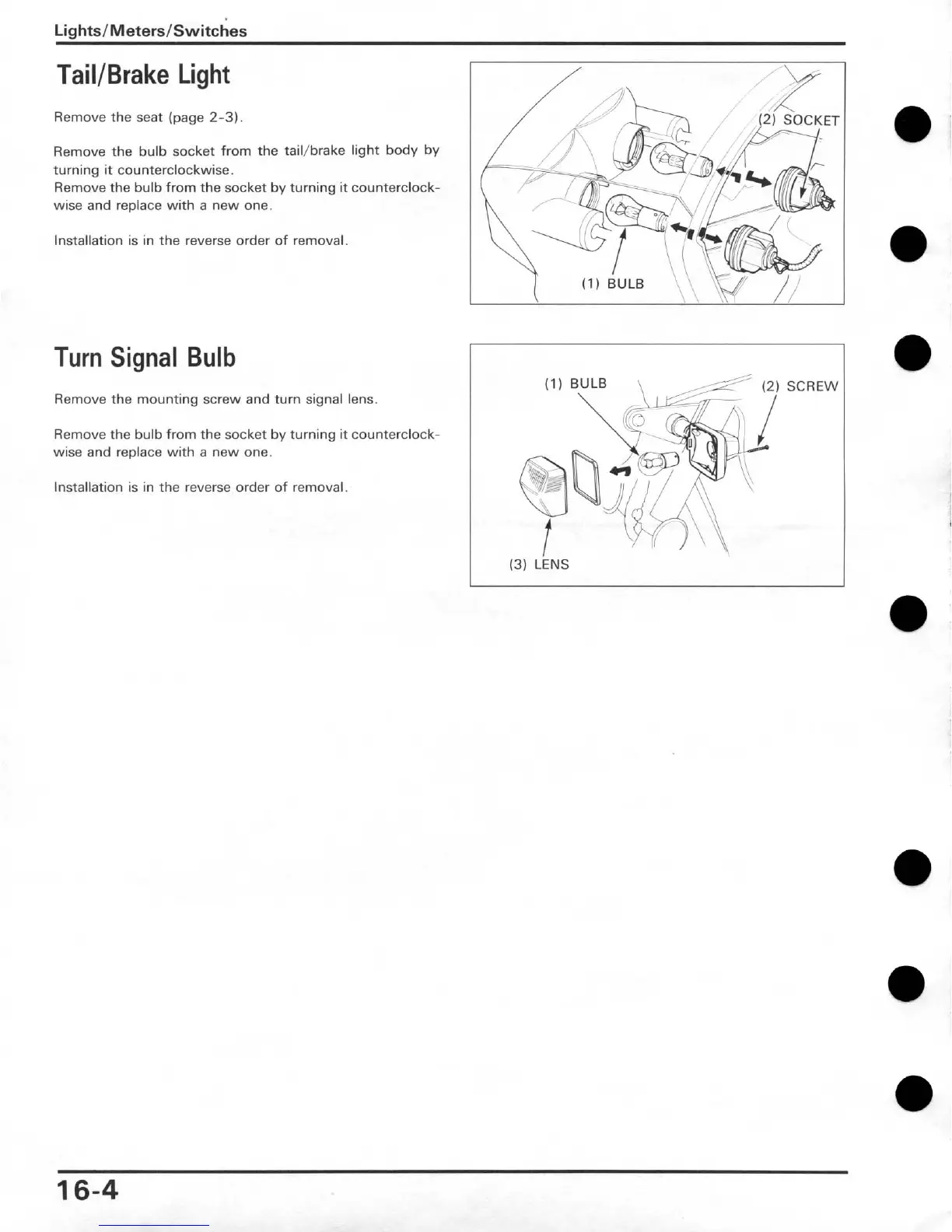

TailIBrake Light

Remove the seat (page

2-3)

Remove the bulb socket from the tail/brake light body by

turning

counterclockwise.

Remove the bulb from the socket by turning

counterclock-

wise and replace with a new one.

Installation is in the reverse order of removal.

Turn Signal Bulb

Remove the mounting screw and turn signal lens

Remove the bulb from the socket by turning

counterclock-

wise and replace with a new one.

Installation is in the reverse order of removal.

SCREW

(3)

LENS
