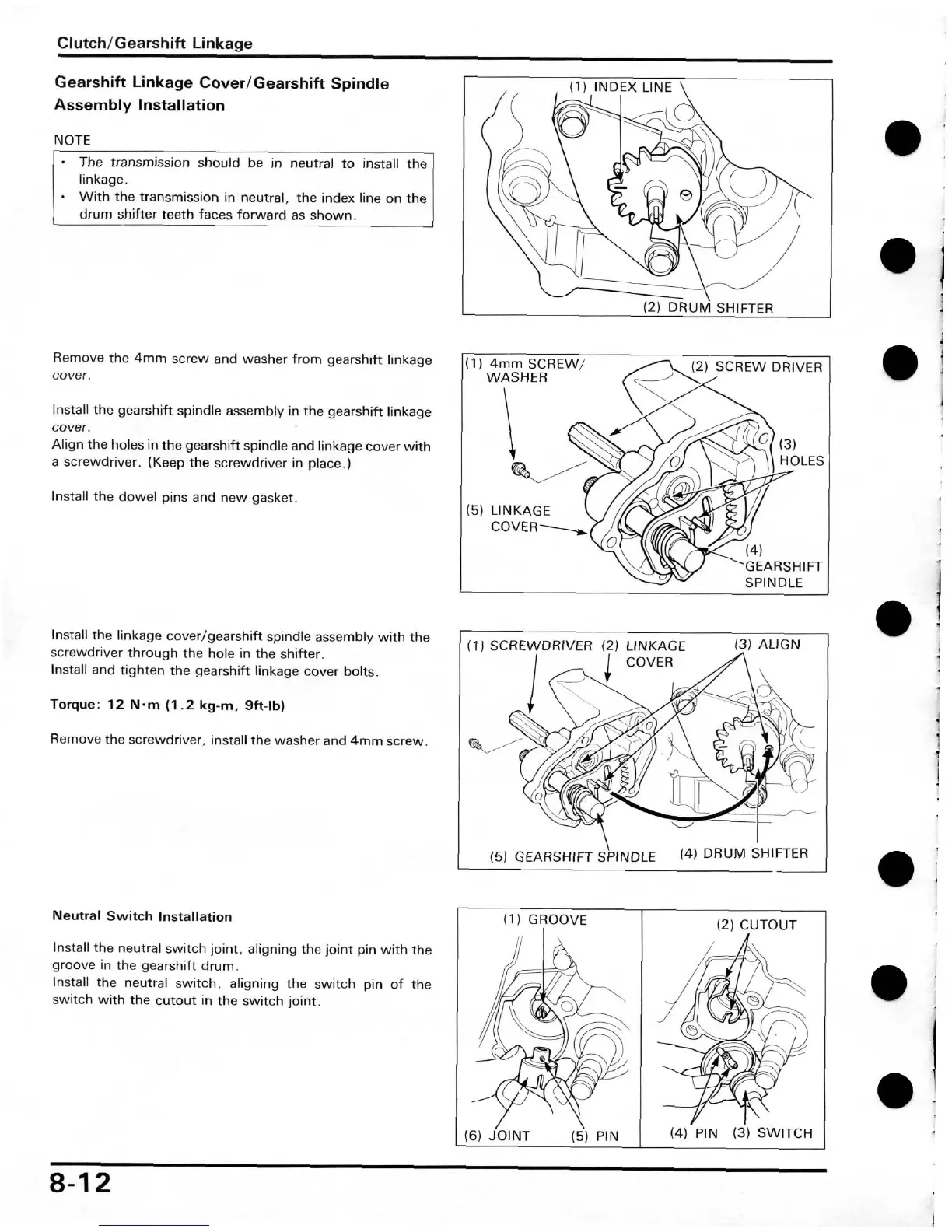

ClutchIGearshift Linkage
Gearshift Linkage
CoverIGearshih Spindle
Assembly Installation
linkage.
With the transmission in neutral, the index line on the
Remove the
4mm screw and washer from gearshift linkage
cover.
lnstall the gearshift spindle assembly in the gearshift linkage
cover.
Align the holes in the gearshift spindle and linkage cover with
a screwdriver. (Keep the screwdriver in place.)
lnstall the dowel pins and new gasket.
lnstall the linkage
coverlgearshift spindle assembly with the
screwdriver through the hole in the shifter.
(1)
SCREWDRIVER
(2)
LINKAGE
(3)
ALIGN
01
I
1
lnstall and tighten the gearshift linkage cover bolts.
Torque:
12
N.m
(1.2
kg-m.
Sft-lb)
1
Remove the screwdriver, install the washer and 4mm screw.
1
Neutral Switch Installation
lnstall the neutral switch joint, aligning the joint pin with the
groove in the gearshift drum.
lnstall the neutral switch, aligning the switch pin of the
switch with the cutout in the switch joint.
(1)
GROOVE
(6)
JOINT
(5)
PIN
(2)
CUTOUT
