Honda PCX150 2013 User Manual

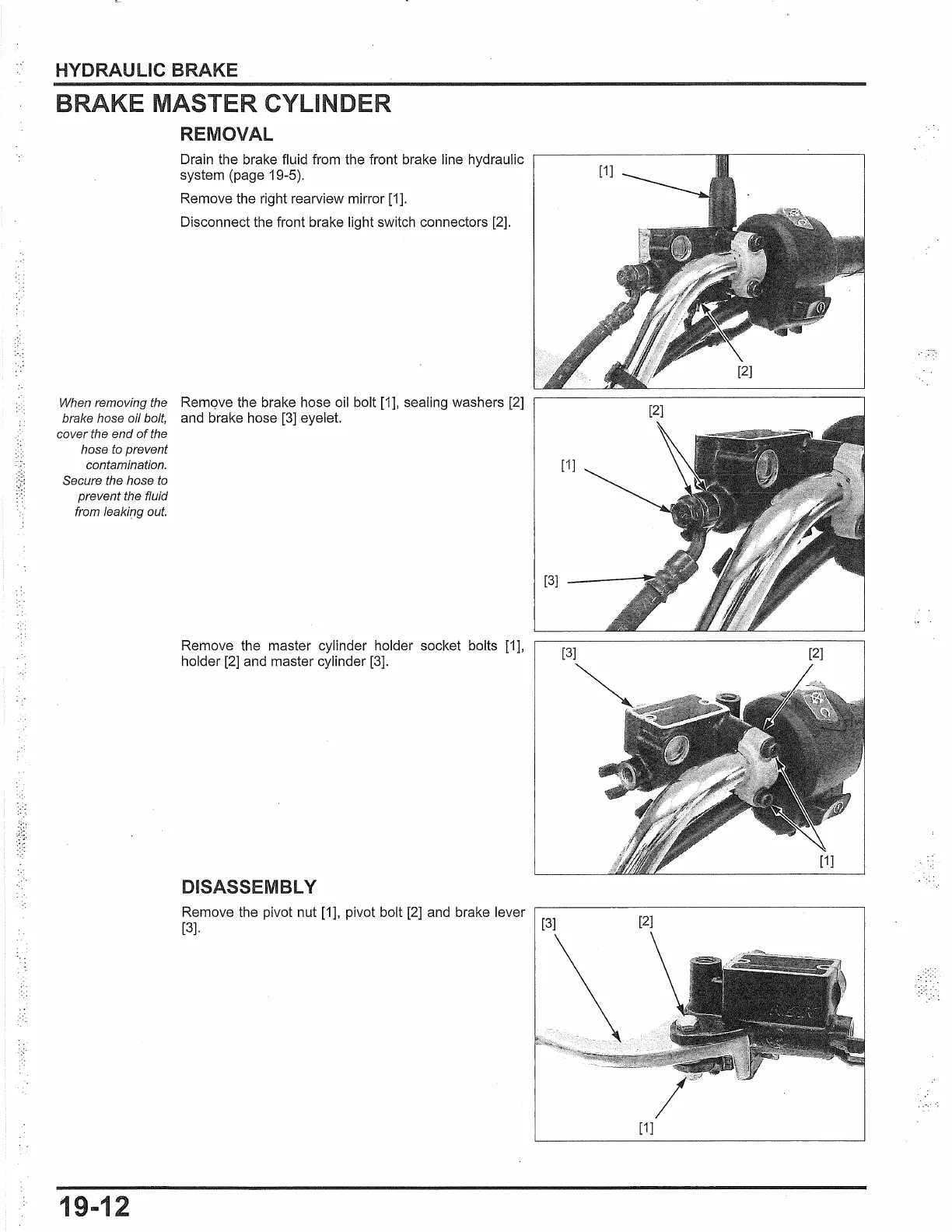

HYDRAULIC BRAKE
B
MASTER CYLIND R
REMOVAL
Drain the brake fluid from the front brake line hydraulic
system (page 19-5).
Remove the right rearview mirror [1].
Disconnect the front brake light switch connectors
[2].
When removing the Remqve the brake hose oil bolt [1 ], sealing washers [2]
brake hose oil bolt, and brake hose [3] eyelet.
cover the end of the
hose to prevent
contamination.
Secure the hose
to
prevent the fluid
from leaking out.
19-12
Remove the master cylinder holder socket bolts [1],
holder
[2] and master cylinder [3].
DISASSEMBLY
Remove the pivot nut [1], pivot bolt [2] and brake lever
[3]. [3]
[3]
[2]
~ .. •·
[2]
[1]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
