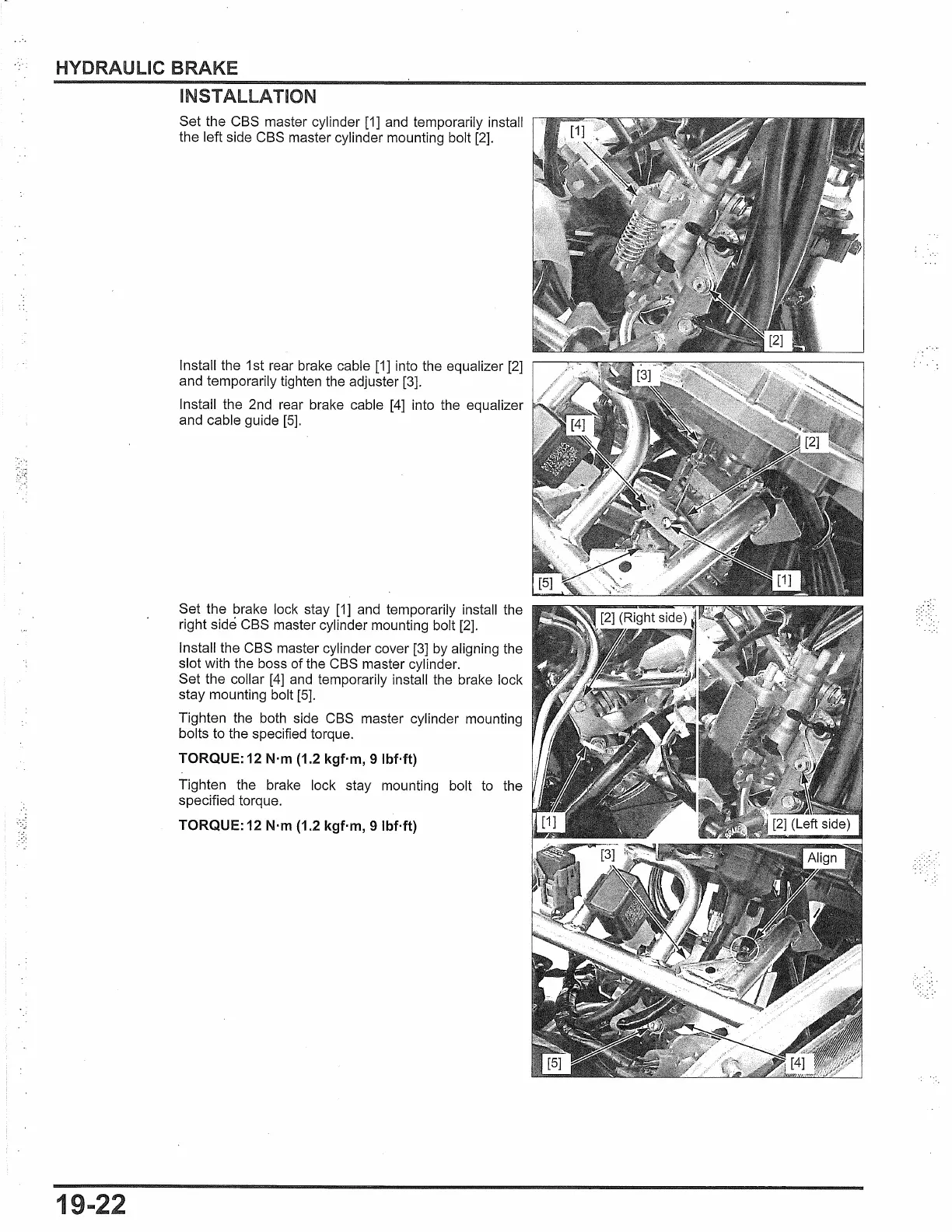

HYDRAULIC BRAKE
19-22
INSTALLATION
Set the CBS master cylinder
[1]
and temporarily install
the left side CBS master cylinder mounting bolt
[2].
Install the 1st rear brake cable
[1]
into the equalizer
[2]
and temporarily tighten the adjuster [3].
Install the 2nd rear brake cable
[4]
into the equalizer
and cable guide
[5].
Set the brake lock stay
[1]
and temporarily install the
right side CBS master cylinder mounting bolt
[2].
Install the CBS master cylinder cover
[3]
by aligning the
slot with the boss of the
CBS
master cylinder.
Set the collar
[4]
and
temporarily install the brake lock
stay mounting bolt
[5].
Tighten the both side
CBS
master cylinder mounting
bolts to the specified torque.
TORQUE: 12 N·m (1.2 kgf·m, 9
lbHt)
Tighten the brake lock stay mounting bolt
to
the
specified torque.
TORQUE: 12 N·m (1.2 kgf·m, 9
lbHt)

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
