Honda PCX150 2013 User Manual

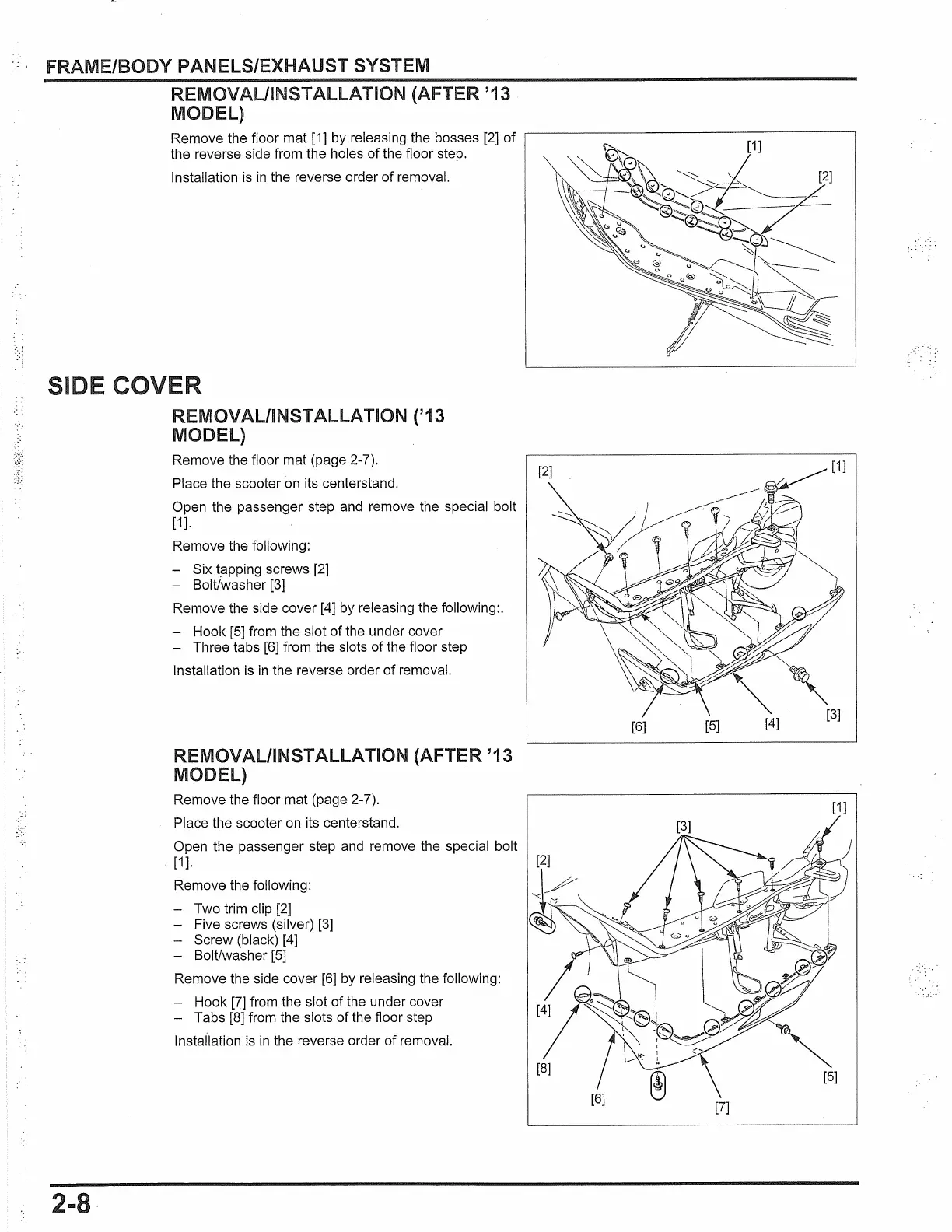

FRAMBBODYPANEL~EXHAUSTSYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the floor mat [1] by releasing the bosses [2]
of
the reverse side from the holes of the floor step.
Installation is
in
the reverse order
of
removal.
SIDE COVER
2-8
REMOVAL/INSTALLATION ('13
MODEL)
Remove the floor mat (page 2-7).
Place the scooter on its centerstand.
Open the passenger step and remove the special bolt
[1
].
Remove the following:
- Six tapping screws [2]
- Boltiwasher [3]
Remove the side cover [4] by releasing the following:.
- Hook [5] from the slot
of
the under cover
- Three tabs [6] from the slots
of
the floor step
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL) .
Remove the floor mat (page 2-7).
Place the scooter on its centerstand.
Open the passenger step and remove the special bolt
. [1].
Remove the following:
Two trim clip [2]
- Five screws (silver) [3]
- Screw (black) [4]
- Bolt/washer [5]
Remove the side cover [6] by releasing the following:
- Hook [7] from the slot
of
the under cover
- Tabs [8] from the slots of the floor step
Installation is
in
the reverse order of removal.
[6]
[5]
[1]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
