Honda PCX150 2013 User Manual

'13

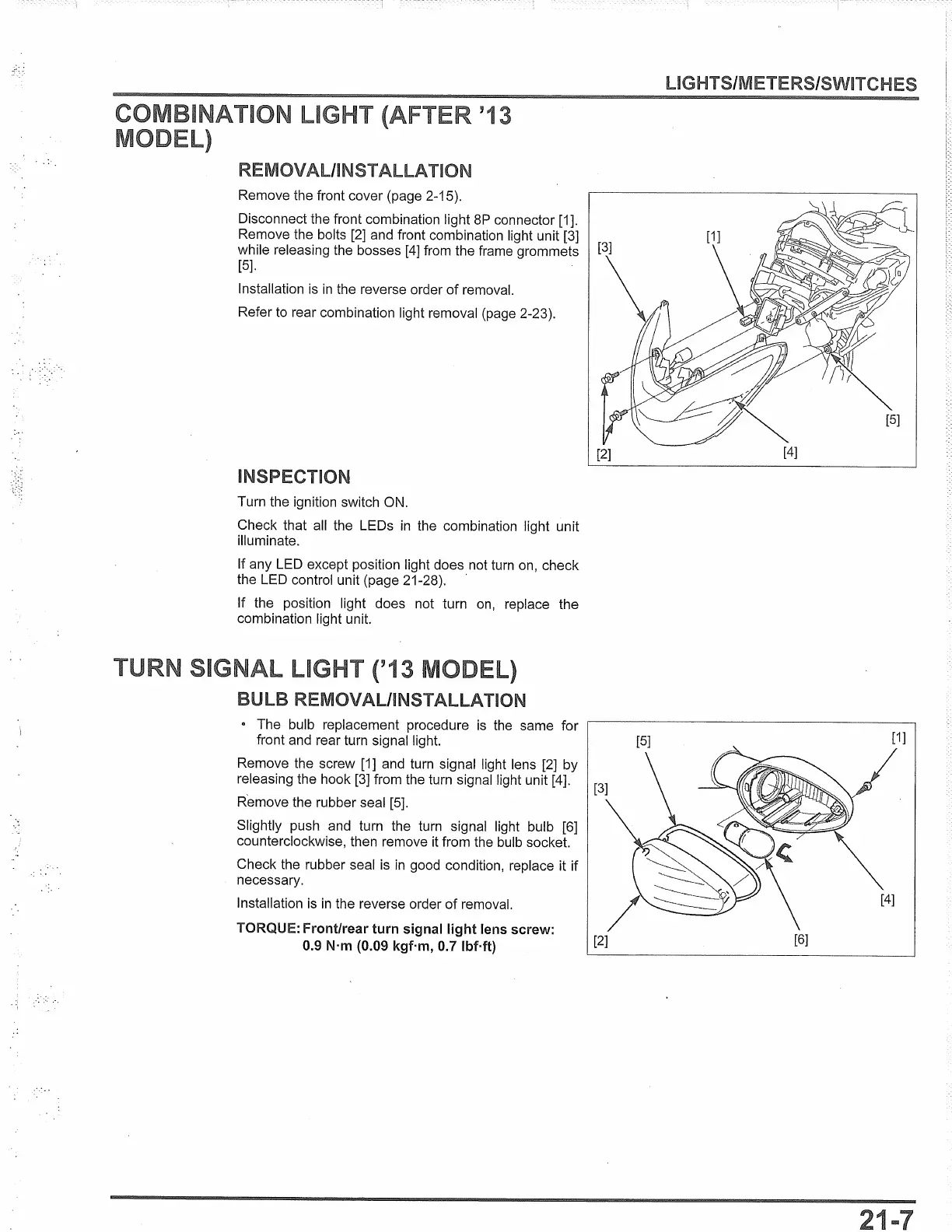

Remove the front cover (page 2-15).
Disconnect the front combination light
BP
connector [1].
Remove the bolts [2] and front combination light unit [3]
while releasing the bosses [4] from the frame grommets [3]
[5].
Installation is
in
the reverse order
of
removal.
Refer to rear combination light removal (page 2-23).
INSPECTION
Turn the ignition switch ON.
Check that all the LEDs
in
the combination light unit
illuminate.
If any LED except position light does not turn on, check
the LED control unit (page 21-28). ·
If
the position light does not turn on, replace the
combination light unit.
('13
BULB REMOVAL/INSTALLATION
• The bulb replacement procedure
is
the same
for
front and rear turn signal light.
Remove the screw [1] and turn signal light lens [2] by
releasing the hook [3] from the turn signal light unit [4].
Remove the rubber seal [5].
Slightly push and turn the turn signal light bulb [6]
counterclockwise, then remove it from the bulb socket.
Check the rubber seal is in good condition, replace it if
necessary.
Installation
is
in
the reverse order
of
removal.
TORQUE: Front/rear turn signal light lens screw:
0.9 N·m (0.09 kgf·m, 0.7 lbMt)
[2]
[2]
[4]
[6]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
