Honda PCX150 2016 User Manual

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
12-18

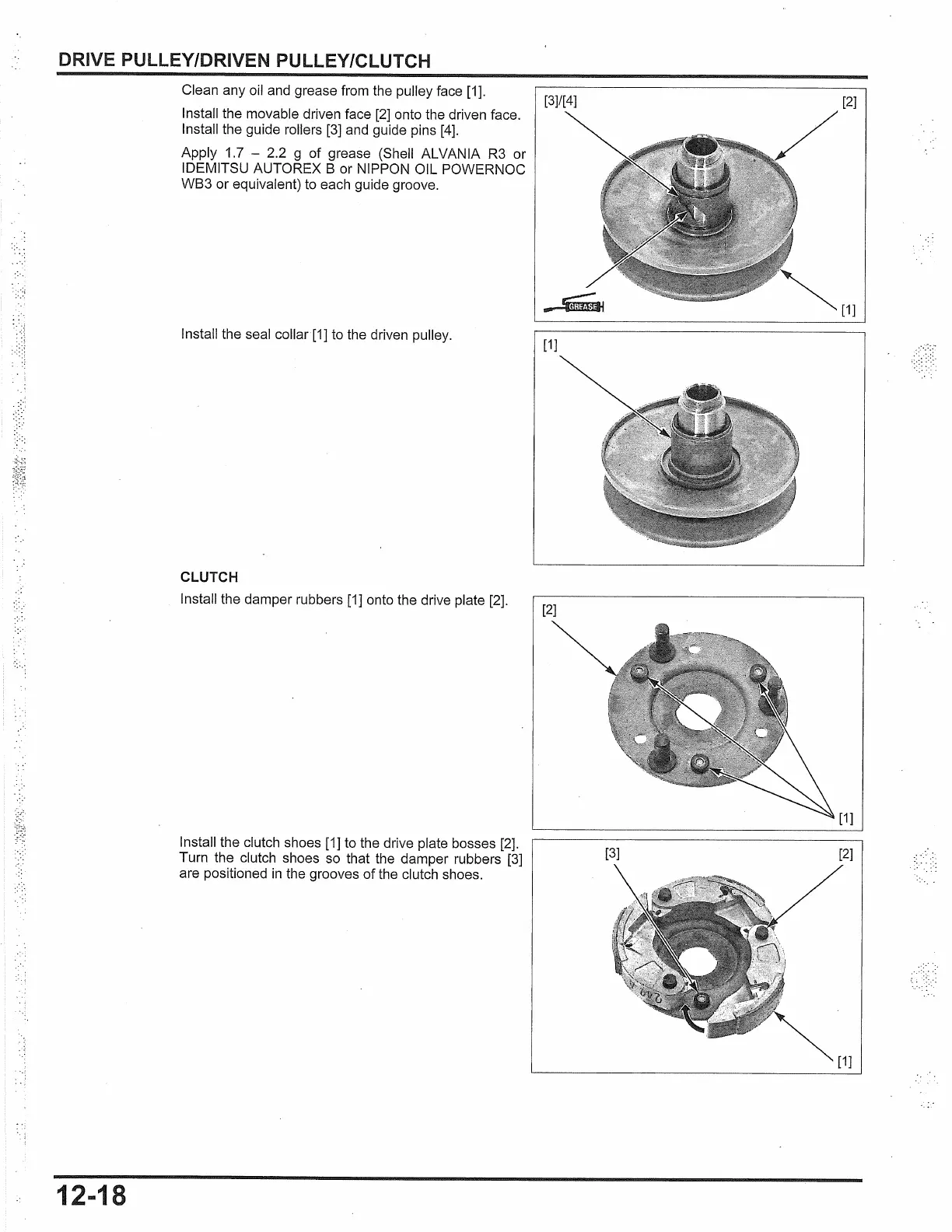

Clean any oil and grease from the pulley face [1].
Install the movable driven face
[2]
onto the driven face.
Install the guide rollers [3] and guide pins
[4].
Apply 1.7 - 2.2 g of grease (Shell ALVANIA
R3
or
IDEMITSU AUTOREX B or NIPPON OIL POWERNOC
WB3 or equivalent) to each guide groove.
Install the seal collar
[1]
to the driven pulley.
CLUTCH
Install the damper rubbers [1] onto the drive plate [2].
Install the clutch shoes [1] to the drive plate bosses [2].
Turn the clutch shoes so that the damper rubbers
[3]
are positioned
in
the grooves of the clutch shoes.
[3]/[4]
/[2]
[1]
[1]
[2]
[1]
[3] [2]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
