Honda PCX150 2016 User Manual

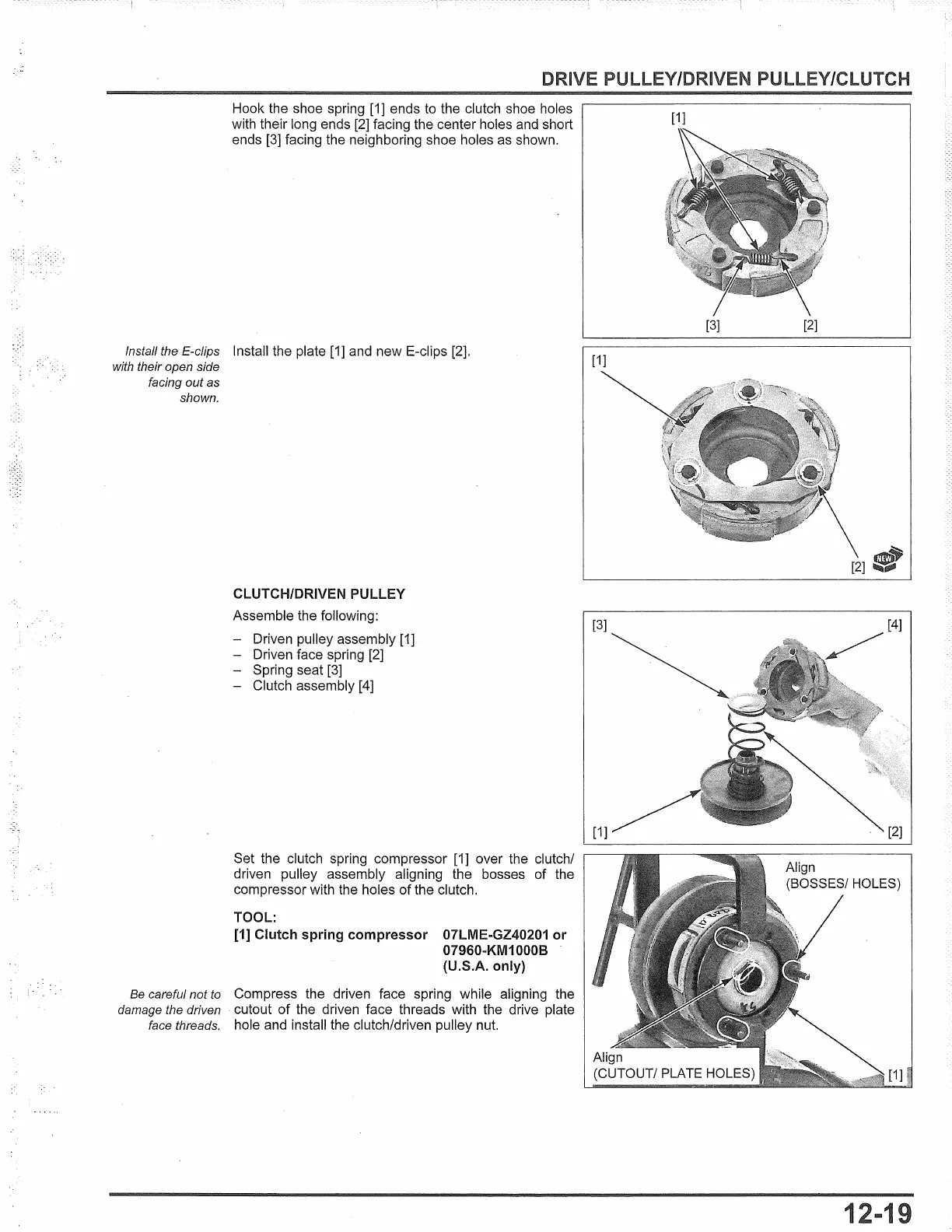

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
Hook the shoe spring [1] ends to the clutch shoe holes
with their long ends
[2] facing the center holes and short
ends [3] facing the neighboring shoe holes as shown.
Install the E-clips Install the plate [1] and new E-clips [2].
with their open side
facing out as
shown.
CLUTCH/DRIVEN PULLEY
Assemble the following:
- Driven pulley assembly
[1]
- Driven face spring [2]
Spring seat [3]
- Clutch assembly [4]
Set the clutch spring compressor [1] over the clutch/
driven pulley assembly aligning the bosses of the
compressor with the holes of the clutch.
TOOL:
[1] Clutch spring compressor 07LME-GZ40201 or
07960-KM10008
(U.S.A. only)
Be careful not to Compress the driven face spring while aligning the
damage the driven cutout of the driven face threads with the drive plate
face threads. hole and install the clutch/driven pulley nut.
[1]
[3]
[2]
[1]
[2]
[3]~
[1]
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
