3

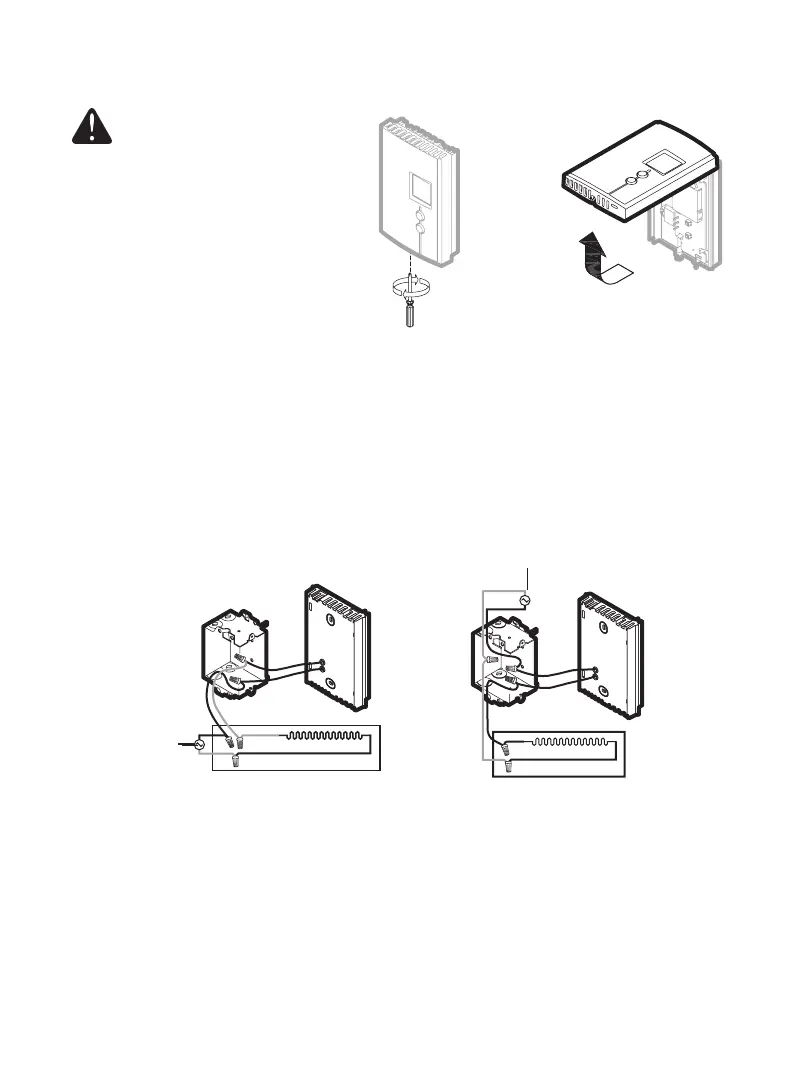

Removing the faceplate
WARNING
TURN OFF POWER TO THE
HEATING SYSTEM AT THE
MAIN POWER PANEL TO
AVOID ELECTRIC SHOCK.
Loosen the screw holding the
faceplate to the base. The screw
cannot be completely removed
and remains captive on the base.
Remove the faceplate from the base
by pulling the bottom half.
4-wire Installation*2-wire Installation
Wiring
Connect either one of the thermostat wires to the heater wire and the other
one to the power supply wire using solderless connectors for copper wires.
NOTE: All cables and connections must conform to the local electrical code.
Special CO/ALR solderless connectors must be used when connecting with
aluminium conductors.
Power supply
Power supply
* Verify this complies
with local code.
