T410A,B ELECTRIC HEAT THERMOSTATS
3 68-0145EF—02
8. Mount the thermostat on the outlet box. Tighten the
two mounting screws (included) to secure the ther-
mostat, taking care to avoid excessive pressure on
the setting dial. See Fig. 4.

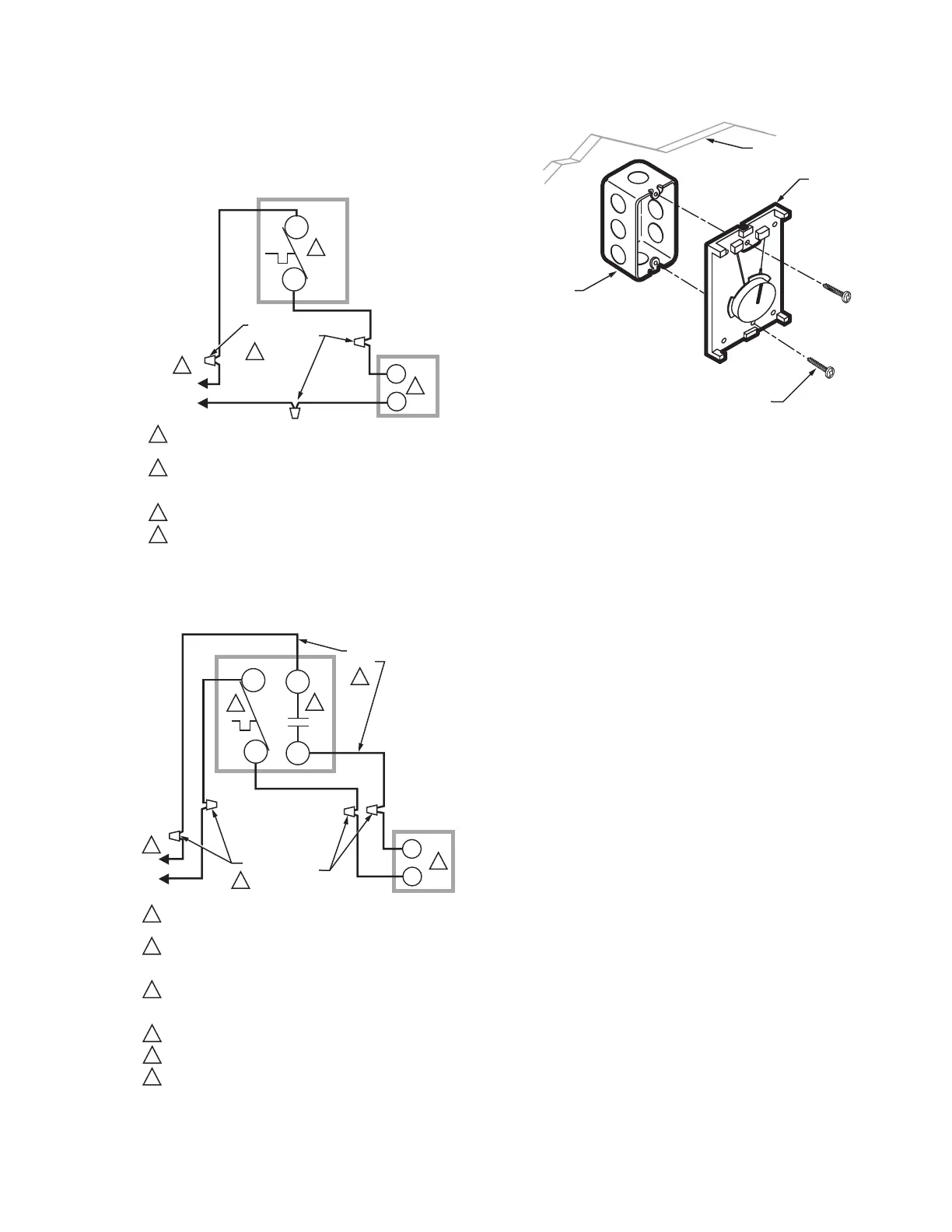

Fig. 2. Typical wiring connections for T410A.
Fig. 3. Typical wiring connections for T410B.
Fig. 4. Mounting thermostat on outlet box.
New Applications
1. Disconnect power supply to prevent electrical shock
or equipment damage. All wiring must comply with
local electrical codes and ordinances.
2. Run line voltage wiring to the thermostat location.
3. Do not remove the T410 Thermostat Cover. Using
wire connectors approved for No. 12 wires, make line
voltage connections directly to the leadwires on the
thermostat. See Figs. 2 and 3 for typical wiring con-
nections.
4. Prebend and push solid wires into the outlet box.
5. Remove the thermostat cover by grasping the top
and bottom cover edge and pulling it outward away
from the thermostat base.
6. Turn the temperature setting dial so the setpoint
indicator is at the 12 o’clock position to prevent
damaging the dial stop.
7. Mount the thermostat on the outlet box. Tighten the
two mounting screws (included) to secure the ther-
mostat, taking care to avoid excessive pressure on
the setting dial. See Fig. 4.
SETTINGS AND CHECKOUT
Setting
The thermostat temperature setting can be adjusted by
turning the setting dial clockwise or counterclockwise to
the desired setting. See Fig. 5. To determine appropriate
setting, allow the thermostat to operate for several hours.
Checkout
IMPORTANT
Make sure all wiring connections are tight before
proceeding with Checkout.
Check out thermostat operation as follows:
1. Turn the setting dial fully clockwise; heating circuit
makes and electric heater starts.
2. Turn the setting dial fully counterclockwise; the
heating circuit breaks and the heater starts to cool.
M5811C
L1
(HOT)
L2
1
2
3
SOLDERLESS
CONNECTORS
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
USE SPECIAL SERVICE CO/ALR SOLDERLESS CONNECTORS
WHEN CONNECTING ALUMINUM CONDUCTORS OR A FIRE
HAZARD MAY RESULT.
USE A SEPARATE LIMIT CONTROL IN THE HEATING APPLIANCE.
BREAKS AND REMAKES BELOW -31 F (-35 C); NORMALLY
THERMAL ACTIVATED. BREAKS ON TEMPERATURE RISE;
MAKES ON TEMPERATURE FALL.
1
2
3
4
T410A
ELECTRIC
HEATER
L1
T1
4
M5812C
L1
(HOT)
L2
1
2
4
SOLDERLESS
CONNECTORS
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
USE SPECIAL SERVICE CO/ALR SOLDERLESS CONNECTORS
WHEN CONNECTING ALUMINUM CONDUCTORS OR A FIRE
HAZARD MAY RESULT.
BREAKS AT POSITIVE OFF AND REMAKES UNDER –31 F (–35 C);
NORMALLY THERMALLY ACTIVATED. BREAKS ON
TEMPERATURE RISE; MAKES ON TEMPERATURE FALL.
USE A SEPARATE LIMIT CONTROL IN THE HEATING APPLIANCE.
BREAKS AT POSITIVE OFF ONLY; NOT THERMALLY ACTIVATED.
DO NOT CONNECT GROUNDED CONDUCTOR (NEUTRAL) ON
120 OR 227V CIRCUITS. INSULATE AND TAPE OR CUT OFF
RED WIRES IF UNUSED.
1
2
3
4
5
6
ELECTRIC
HEATER
RED
WIRE
6
T410B
L1
T1
5
L2
T2
3
MOUNTING
SCREWS (2)
WALL
M5803A
THERMOSTAT
BASE
OUTLET
BOX
