Honeywell Home T5+ User Manual

12 13

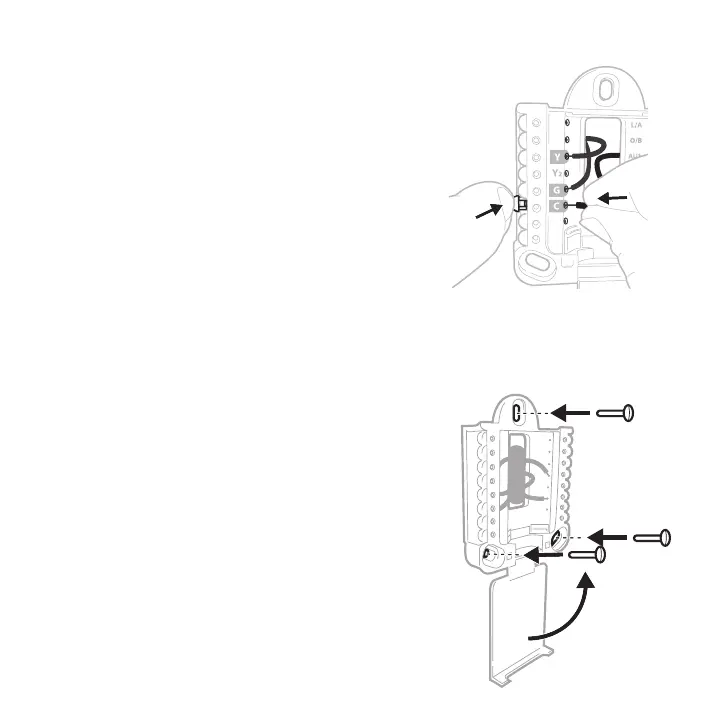

14 Connect remaining wires from Step 8
Tip: Do not mount the UWP to the wall
prior to connecting the wires.
Depress the tabs to put the wires into
the inner holes of their corresponding
terminals on the UWP (one wire per ter-
minal) until it is firmly
in place.
Gently tug on the wires to verify they
are secure.
Tip: If you need to release the wires
again, push down the terminal tabs on
the sides of the UWP.
15 Mount the UWP and close the door
Mount the UWP using the provided
screws. Install all three screws for a
secure fit on your wall. Close the door
after you’re finished.
This wiring is just an example,
actual wiring may vary.
1/4” to 3/8”
Use 3x supplied screws
(#8 11/2 (38 mm) for
red anchors and
#6 11/2 (38 mm) for
yellow anchors)

Honeywell Home T5+ Specifications

General

Model	Honeywell Home T5+
Category	Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Programmable	Yes
Energy Star Certified	Yes
Geofencing	Yes
Smart Home Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Voice Control	Yes
Warranty	1-year limited warranty
Stages	1 Heat / 1 Cool
Remote Control	Yes, via app
Energy Saving Features	Smart alerts, adaptive recovery
Dimensions	4.06 in. H x 4.06 in. W x 1.06 in. D
Compatibility	Works with most 24V heating and cooling systems
Power Source	C-Wire (Common Wire) required
