Honeywell Home T5+ User Manual

12

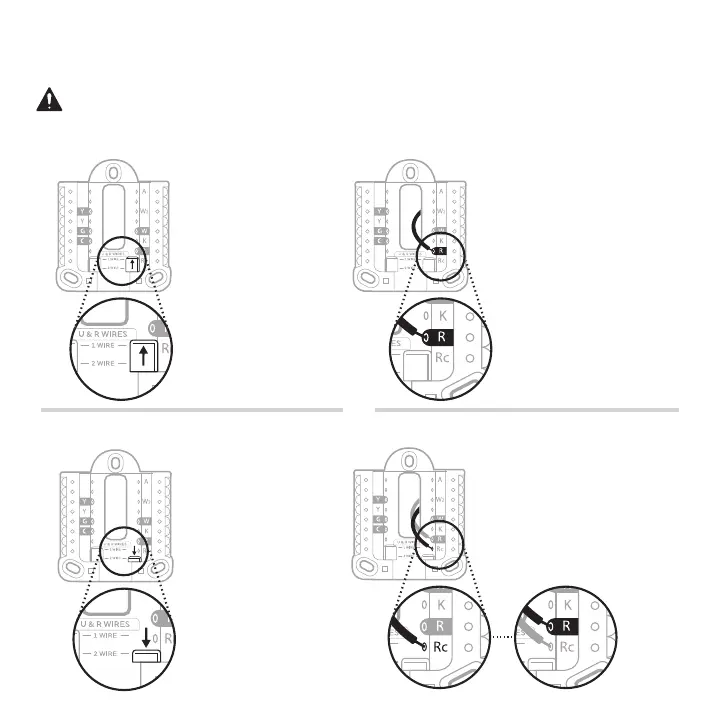

13 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2. Insert your R-wire
(R, Rh or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into RTerminal.

Honeywell Home T5+ Specifications

General

Model	Honeywell Home T5+
Category	Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Programmable	Yes
Energy Star Certified	Yes
Geofencing	Yes
Smart Home Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Voice Control	Yes
Warranty	1-year limited warranty
Stages	1 Heat / 1 Cool
Remote Control	Yes, via app
Energy Saving Features	Smart alerts, adaptive recovery
Dimensions	4.06 in. H x 4.06 in. W x 1.06 in. D
Compatibility	Works with most 24V heating and cooling systems
Power Source	C-Wire (Common Wire) required
