Specications

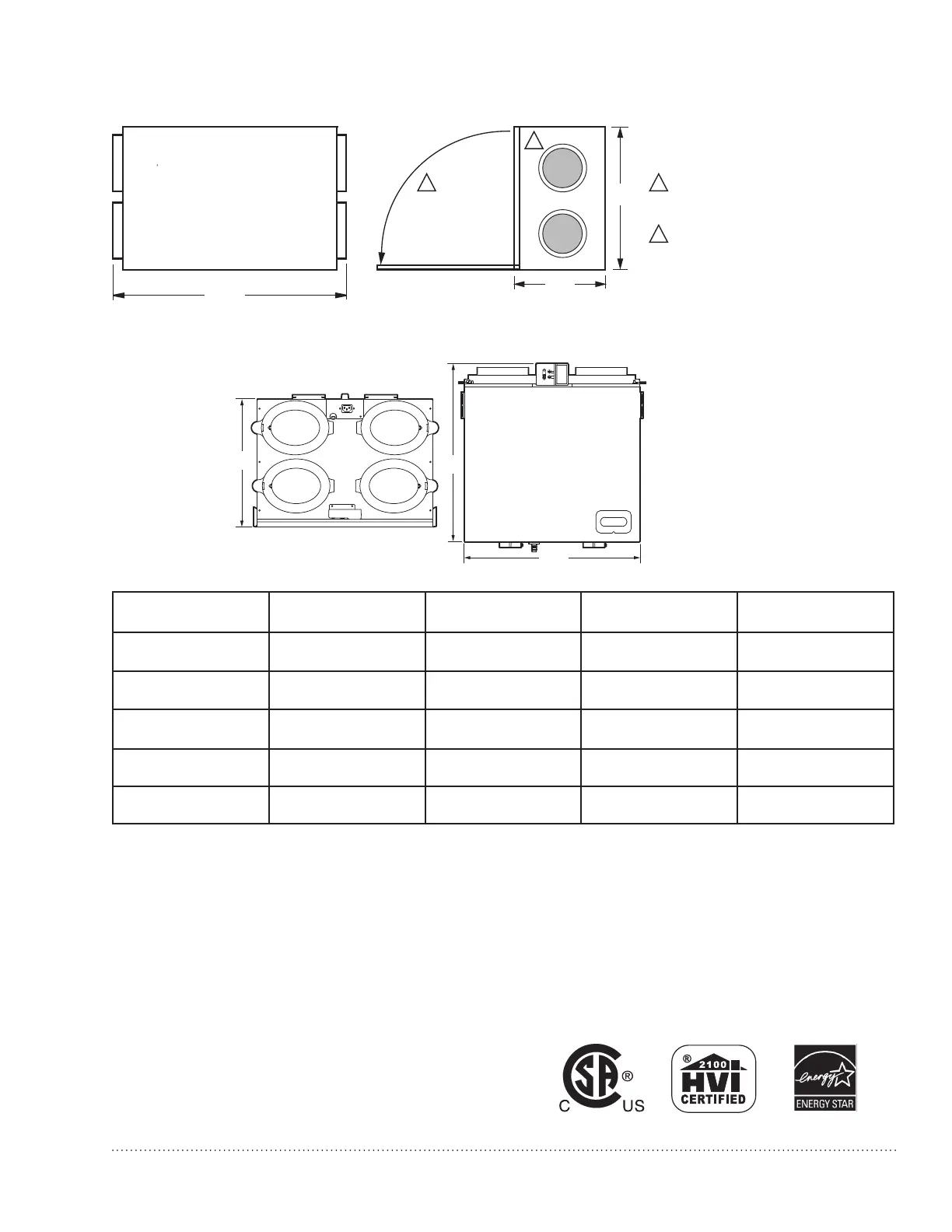

Dimensions in inches (mm) of VNT5150, VNT5200, VNT6150 and VNT6200
Dimensionsininches(mm)ofVNT5070:
Model Product Weight Shipping Weight Heat/Energy Core
Dimensions
Filter Dimensions
VNT5150H1000
VNT5150E1000
42 lbs. (19.0 kg) 47.5lbs.(21.55kg)
12”x10”x12”
305x254x305 mm
10”x12”
254x305 mm
VNT5200H1000
VNT5200E1000
50 lbs. (22.68 kg) 57.5lbs.(26.08kg)
12”x15”x12”
305x381x305 mm
15”x12”
381x305 mm
VNT5070H1000
VNT5070E1000
33 lbs. (15.0 kg) 40.5 lbs. (18.4 kg)
10”x10”x9”
254x254x228.6 mm
9”x9.75”
228.6x247.6mm
VNT6150H1000 43.5lbs.(19.7kg) 50lbs.(22.7kg)
12”x10”x12”
305x254x305 mm
10”x12”
254x305 mm
VNT6200H1000 51.5 lbs. (23.4 kg) 61.5lbs.(27.9kg)
12”x15”x12”
305x381x305 mm
15”x12”
381x305 mm
PhysicalSpecications:
VNT5150H1000, VNT5150E1000 or VNT6150H1000: H = 22 1/2 in. (572 mm), W = 11 1/2 in. (295 mm), L = 29 1/2 in. (749 mm)
VNT5200H1000, VNT5200E1000 or VNT6200H1000: H = 22 1/2 in. (572 mm), W = 16 1/2 in. (422 mm), L = 29 1/2 in. (749 mm)
FRONT CLEARANCE OF 25 INCHES
(635 MM) IS REQUIRED FOR
SERVICING UNIT.
ALL DUCT CONNECTIONS ARE
6 IN. (150 MM).
2
1
H
W
L
1
2
M28919A
TrueFRESH™ ERV/HRV Ventilation Systems 69-2480EF—17
4
CSA-22.2 #113-10, CSA 439 Standard
UL Standard 1812
RoHS Compliant
HVI Certified
FCC Part 15, Class B
ENERGY STAR (VNT6150H1000 & VNT6200H1000)
Install the ERV/HRV Ventilation System according to national and local regulations, building, and safety codes.
StandardsandCertications:
• Flexible Duct (2): VNT5150, VNT5200, VNT6150 & VNT6200: 6 in. round for inlet and outlet. Flexible vinyl,
compatibleforconnectiontorigidorflexibleductingwithsheetmetalscrewsand/ortape.VNT5070:5in.ovalfor
inlet and outlet. Flexible vinyl, compatible for connection to flexible ducting with sheet metal screw and/or tape.
Operating Ranges:
Ambient Temperature: 34 to 140 ºF (1 to 60 ºC)
Humidity: 0-95% RH
• Drain tubing diameter: 1/2in.(12.7mm)
• Cabinet: 20 gauge galvanized steel
Electrical Ratings:
Input Voltage: 120 VAC, 60 Hz
Input Current: 1.5 A (VNT5150, VNT5200, VNT6150 &
VNT6200),0.85A(VNT5070)
Output Power to Terminals: 5 VDC, 1.0 A maximum
20 (507)
14-1/2
(368)
21
(533)
M33111
