Honeywell 1000 Series User Manual

15
EN1R--9161 0006R10--NE
9
8
65
L
10
12
N
712
3
Optional
411
RS
Side connections *
LM -- Limiter
RS -- Res et s witch
P --Air pressure switch
* See page 16. fig. 28.
** See page 10 fig. 17.
RS and alarm optional
Optional **
LM
P

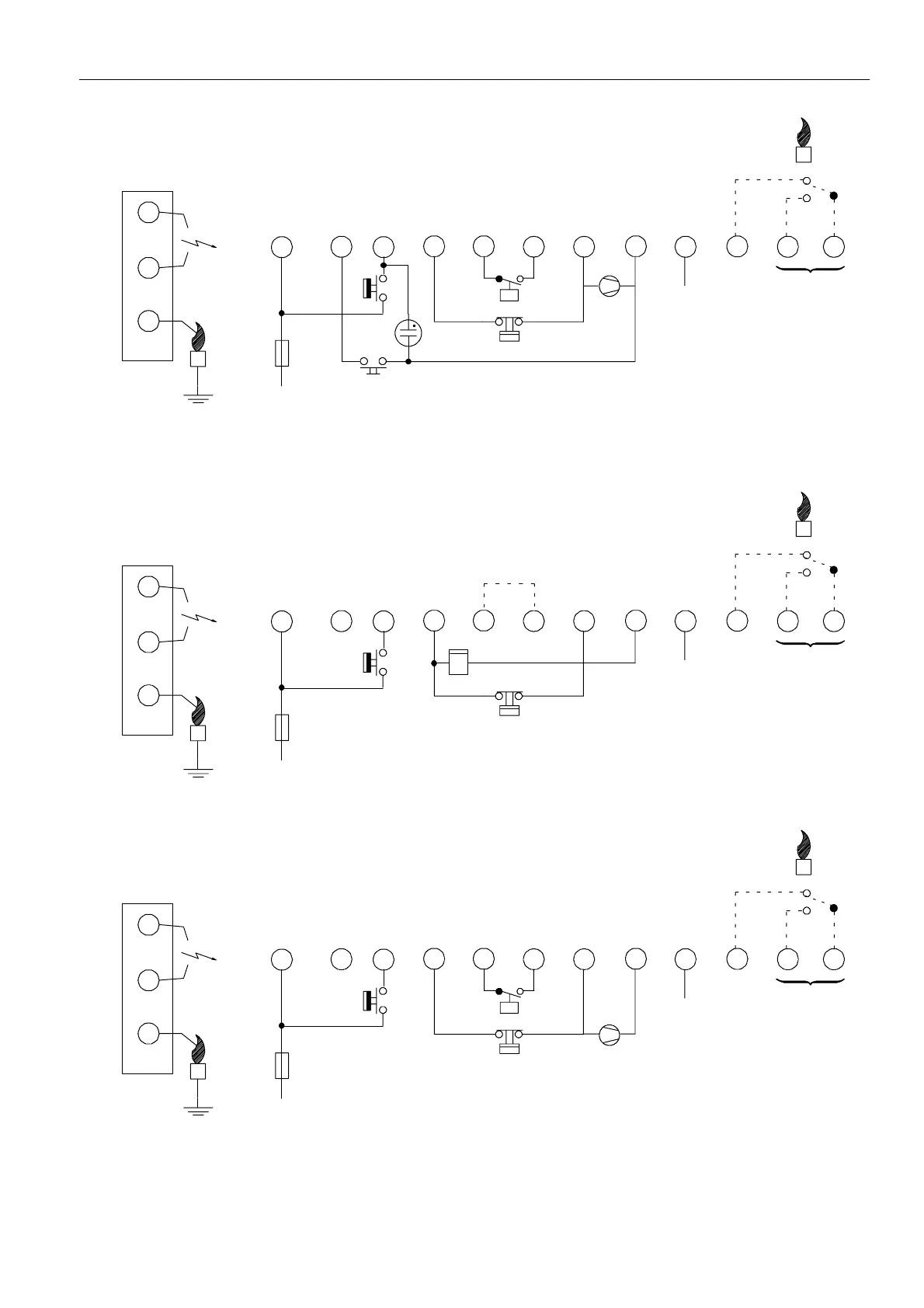

Fig. 24. Connection diagram S4565CD and DD “2000”series
9
8
65
L
10
12
N
712
3
Optional
411
Side connections *
LM -- Limiter
h -- Hour counter
* See page 16. fig. 28.
** See page 10 fig. 17.
h is optional
Optional **
h
LM
Fig. 25. Connection diagram S4565PD and QD “2000”series
9
8
65
L
10
12
N
712
3
Optional
411
Side connections *
LM -- Limiter
P -- Air proving switch
* See page 16. fig. 28.
** See page 10 fig. 17.
Optional **
LM
P
Fig. 26. Connection diagram S4565RD and TD “2000”series
