E-MON CLASS 3400 METER
7 62-0398—02
2.2 Display Board
The display board connects to the main power board via a flex ribbon cable and
the board mounts on the inside of the housing door.No additional connections to
the display board are required. The display board’s LCD readout indicates the
metered values as well as errors associated with the E-Mon Class 3400 Meters,
such as phase loss or sensor error conditions.

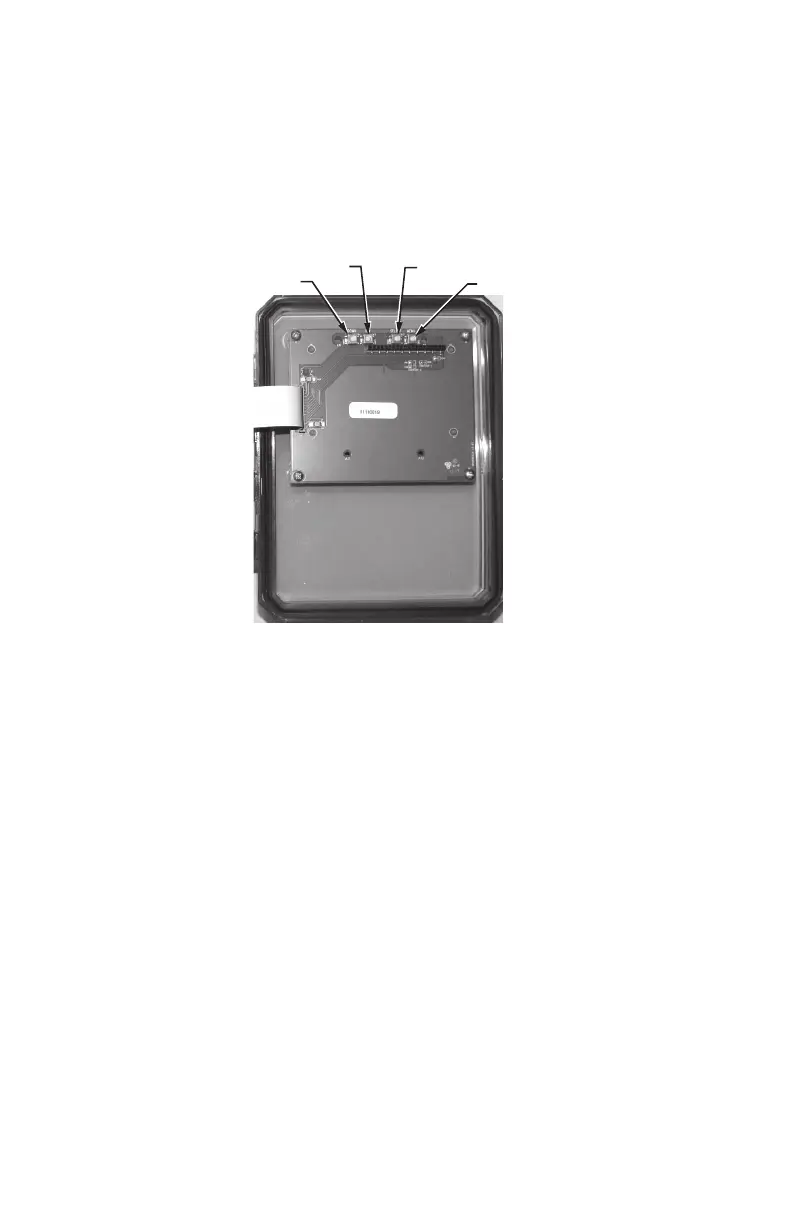

Fig. 3. Display Board.
M33320
DOWN
UP
SELECT
MENU
62-0398-02.fm Page 7 Tuesday, May 8, 2018 10:22 AM
