Honeywell 748LC User Manual

DUAL TEC
®
Motion Sensors
8

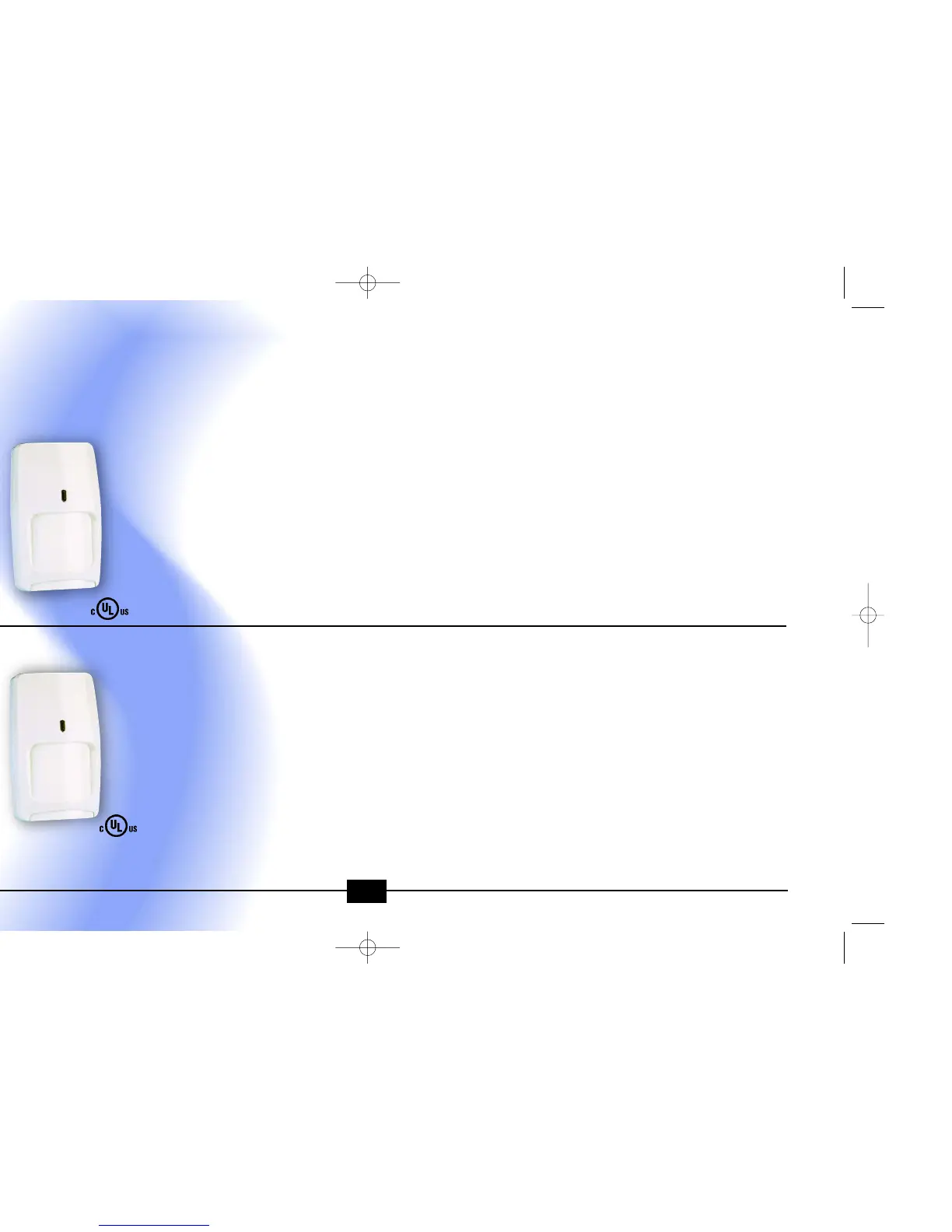

DT-7450
DUAL TEC
®
Motion Sensor
“Commercial protection
that incorporates the latest
processing technology.”
Accessories
• Swivel Bracket - SMB10
• Ceiling Bracket - SMB10C
• Tampered Swivel Bracket - SMB10T
Features
• Exclusive K-Band microwave
technology
• DualCore micro-based processing
• Concurrent diagnostics
• Digital microwave adaptive threshholds
• Digital fluorescent light filter
• Uniform Sensitivity Optics
• Zero Clearance black bug guard
• Tamper
• Also available with Form C
as DT-7450C
Specifications:
• Range: 50’ x 60’
• Microwave Freq: K-Band, 24.125GHz
• Detectable walk rate: 0.5’ - 10’/sec
• Signal Proc.: Intermediate, Standard
• Temp comp: Advanced dual-slope
• Alarm relay: Form A
• Input voltage: 7.5-16VDC
• Standby current: 25mA typical
• Indicators: Tri-Color LED
• Operating temp: 14°F to 131°F
• Dimensions: 4.685”H x 2.795”W x
1.654”D
DT-7550C
DUAL TEC
®
with Anti-Mask
“Opens new high
security opportunities.”
Features
• Includes all features of the DT-7450, plus
• MaskAlert processing
• Form C relay
• Trouble output relay
• No rear pattern leakage
• K-Band
• Microprocessor controlled dual slope
temperature comp.
Accessories
• Swivel Bracket - SMB10
• Ceiling Bracket - SMB10C
• Tampered Swivel Bracket - SMB10T
Specifications:
• Range: 50’ x 60’
• Microwave Freq: K-Band, 24.125GHz
• Detectable walk rate: 0.5’ - 10’/sec
• Signal Proc.: Intermediate, Standard
• Temp comp: Advanced dual-slope
• Alarm relay: Form C
• Trouble Relay: Form B
• Input voltage: 7.5-16VDC
• Standby current: 30mA typical
• Indicators: Tri-Color LED
• Operating temp: 14°F to 131°F
• Dimensions: 4.685”H x 2.795”W x
1.654”D
