DUAL TEC
®
Motion Sensors
9

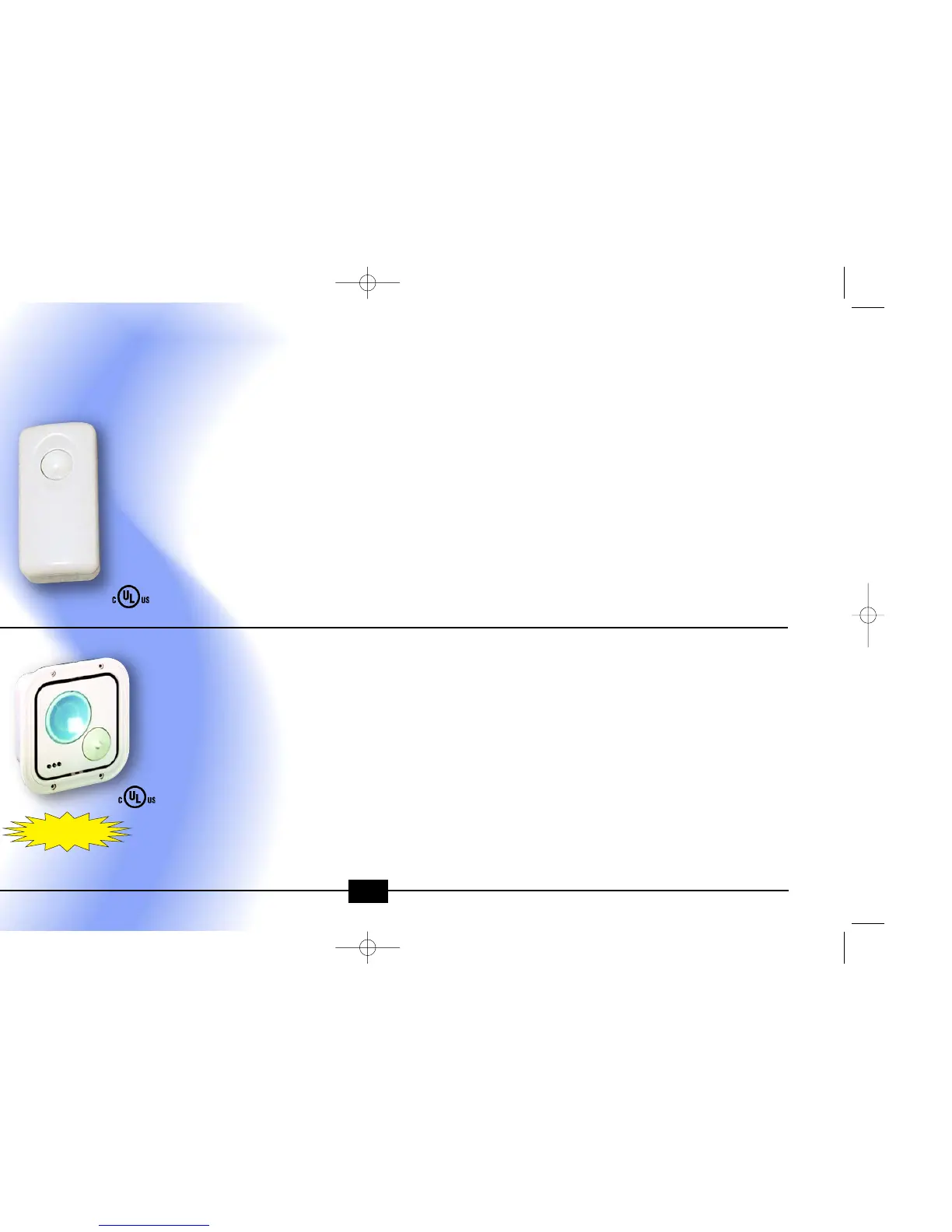

DT-515
MiniTek
™
Motion Sensor
“Economic alternative to a
DUAL TEC
®
that’s more than
just a PIR.”
Features
• ASIC-based PIR with S-Band
microwave
• Versatile mounting options
• Wall, corner or ceiling mount
• Surface or flush mount
• Totally silent relay
• Selectable pulse processing
Specifications:
• Range: 15’ x 15’ or 360° x 15’
• Microwave Freq: S-Band, 2.45GHz
• Detectable walk rate: 0.5’ - 5’/sec
• Signal Proc.: Intermediate, Std, Harsh
• Temp comp: Advanced dual-slope
• Alarm relay: Form A
• Input voltage: 10-14.5VDC
• Standby current: 20mA
• Indicators: Red LED
• Operating temp: 14°F to 122°F
• Dimensions: 4.25”H x 2.125”W
x 1.25”D
DT-7360
Ceiling Mount
DUAL TEC
®
“K-Band technology is now
available in a ceiling mount
sensor.”
Features
• Exclusive K-Band microwave
technology
• DualCore micro-based processing
• Concurrent Diagnostics
• Digital microwave adaptive thresholds
• Digital fluorescent light filter
• Trouble output
• Surface mount or flush mount
• Front and rear tamper switches
Specifications:
• Range: 50’ diameter 360° coverage
• Microwave Freq: K-Band, 24.125GHz
• Detectable walk rate: 0.5’ - 5’/sec
• Signal Proc.: Intermediate, Standard
• Temp comp: Advanced dual-slope
• Alarm relay: Form C
• Input voltage: 7.5-16VDC
• Standby current: 30mA typical
• Indicators: Separate red, green,
yellow LEDs
• Operating temp: 14°F to 131°F
• Dimensions: 5.0”H x 5.0”W x 2.5”D
NEW!
