6. Application in intrusion detection systems
6.1 LED indication
In no-load status, all indicators are dark. When a function is being
executed, the corresponding indicator is activated for approx. 5
seconds. Details are described in the individual operating
procedures.

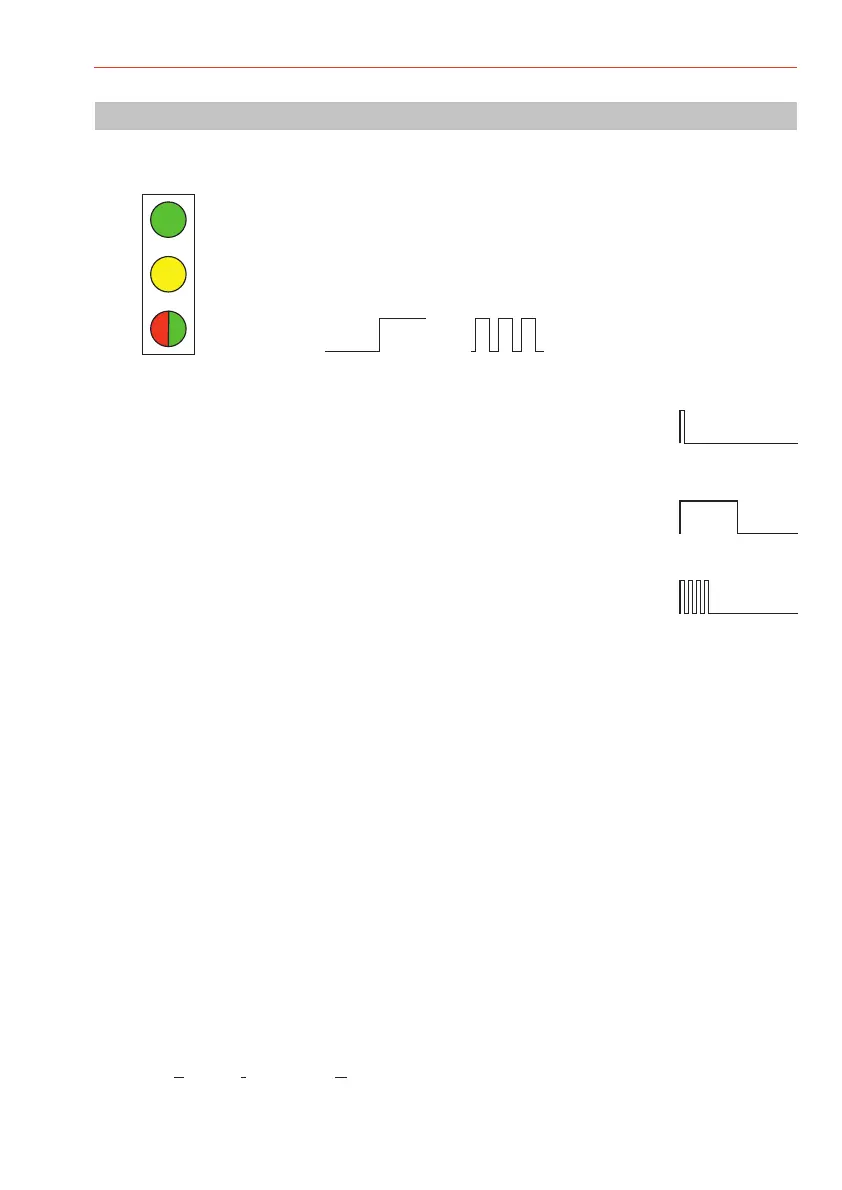

The state of the indicator is illustrated as follows:
Off
On Flashes
yellow
green
red/
green
Alarm/
Learn mode
Disarmed
Ready
2 Sek.
1 Sek.
125 ms
6.2 Acoustical acknowledgement signals
Short signal (beep)
- after activating every key
- data carrier acknowledgement
Long signal (2 sec.)
- successfully performed action
Impulse-commutated signal
(4x short in 1 sec.) - no authorization
- reading error
- the action cannot be performed
- the action has been cancelled
The acknowlegement of acoustic signals is independent of the function and thus always identical.
Reading acknowledgement
Positive acknowledgement
Negative acknowledgement
6.3 Possible functions
- Arm/disarm an intrusion detection system
- Access control functions
- Trigger hold-up alarm
- Control and switching functions
- Info functions
- Learn mode
- Define or alter PIN
(IK3)
- Up to 100 control and switching functions (in conjunction with IK3 EU BUS-2/Door controller
module for MB).
- Up to 16 control and switching functions (in conjunction with IK3 EU conventional).
The state of the system can be queried (armed / disarmed / alarm).
New data carriers can be learned and old ones deleted in learn mode.
(PIN = ersonal dentification umber)
Enter PIN via the reader keypad
Only readers with keypad
1)
1)
1)
1)
1)
PI N
Operating Instructions mifare/DESFire EV1 reader "Accentic" with/without keypad
