Honeywell BENDIXKing APEX EDGE Series - Main Display Areas

Honeywell Bendix/King KFD 840 Primary Flight Display
Getting Started KFD 840 PG PN 7450-0840-01
2-2 Rev C May 28, 2010
© Honeywell International Inc. Do not copy without express permission of Honeywell
1. Course Knob (CRS)
6. Symbolic Aircraft
2. Function select buttons
7. Attitude Direction Indicator
(ADI)
3. Heading Knob (HDG)
8. Airspeed Tape
4. Horizontal Situation Indicator
Display (HSI)
9. SD Card Reader
5. Altitude Tape
10. Photocell
Main Display Areas
The PFD display is divided into different display areas as shown on
the figures below:

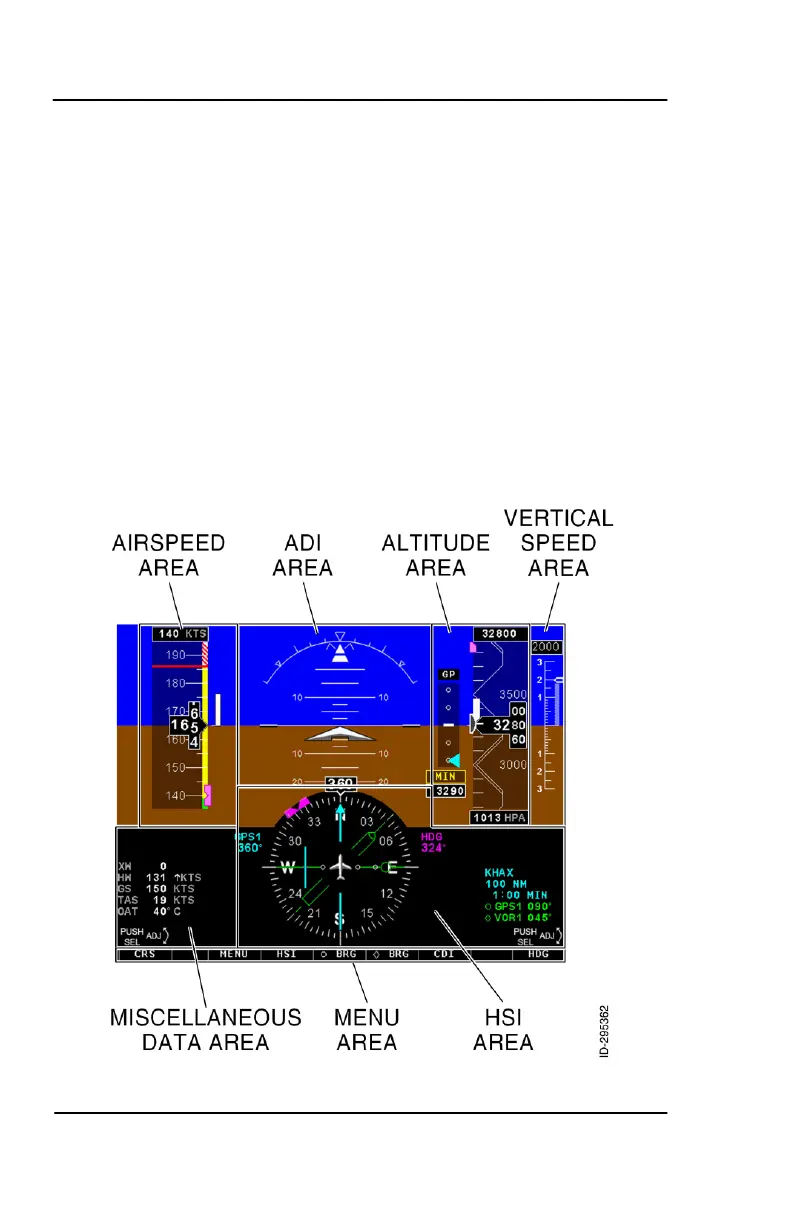

Figure 2-2 Display Main Areas - Part 1
