ARTIFICIAL HORIZON
The attitude display is blue for sky and brown for ground. The two
are separated by a white horizon line.

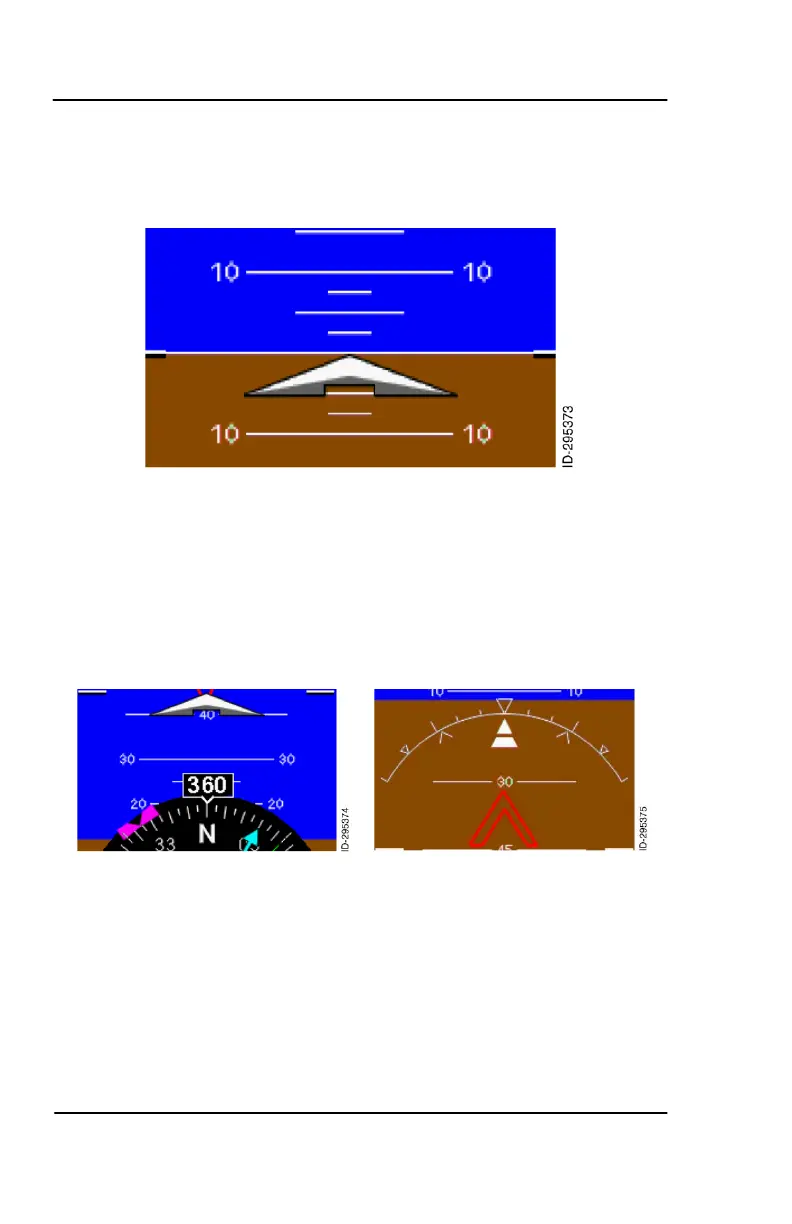

Figure 3-2 Artificial Horizon
Any attitude more than 40
o
pitch up is displayed as almost all sky
blue, with a thin slice (or eyebrow) of ground retained for reference.
For pitch down attitudes more that 40
o
, the attitude display is almost
all ground (brown) with an eyebrow of sky blue.
Figure 3-3 Artificial Horizon with Large Pitch Angles
NOTE: The 30° up and 30° down markings on the attitude tape will
not be displayed until the aircraft is pitched in the
appropriate direction approximately 18°.
