Function

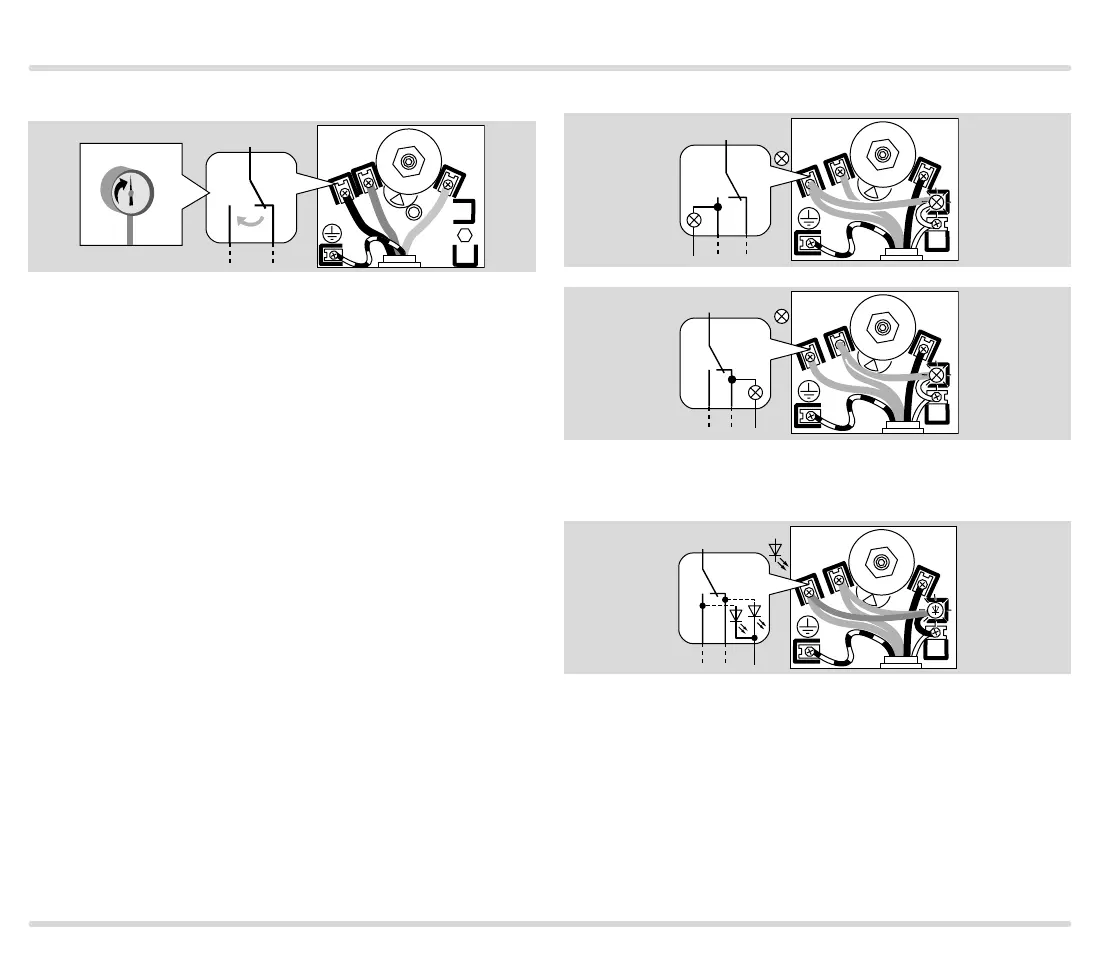

3.5 Connection diagram
COM
3
NC
1
NO
2
NO
2
NC
1
COM
3
L1
0
Contacts 3 and 2 close when subject to increasing
pressure.
Contacts 1 and 3 close when subject to falling pressure.
On pressure switches that switch with rising pressure:
The contact switches from NC 1 to NO 2.
On pressure switches that switch with falling pressure:
The contact switches from NO 2 to NC 1.
3.5.1 Blue pilot lamp for 230 V AC or 110/120 V AC
NC
1
COM
3
NO
NO
2
N
NO
2
NC
1
COM
3
L1
N
NC
1
COM
3
NO
NC
2
N
NO
2
NC
1
COM
3
L1
N
NC
1
COM
3
NO
NO
2
N
NO
2
NC
1
COM
3
L1
N
NC
1
COM
3
NO
NC
2
N
NO
2
NC
1
COM
3
L1
N
3.5.2 Red/green pilot LED for 24 V DC/AC or 110 –
230 V AC
NC
1
COM
3
NO
2
N
NO
2
1 NC
3 COM
+
–
