Honeywell C6097 - Dimensions; EU Certified Pressure Switches

C6097 · Edition 01.19 24
Technical data

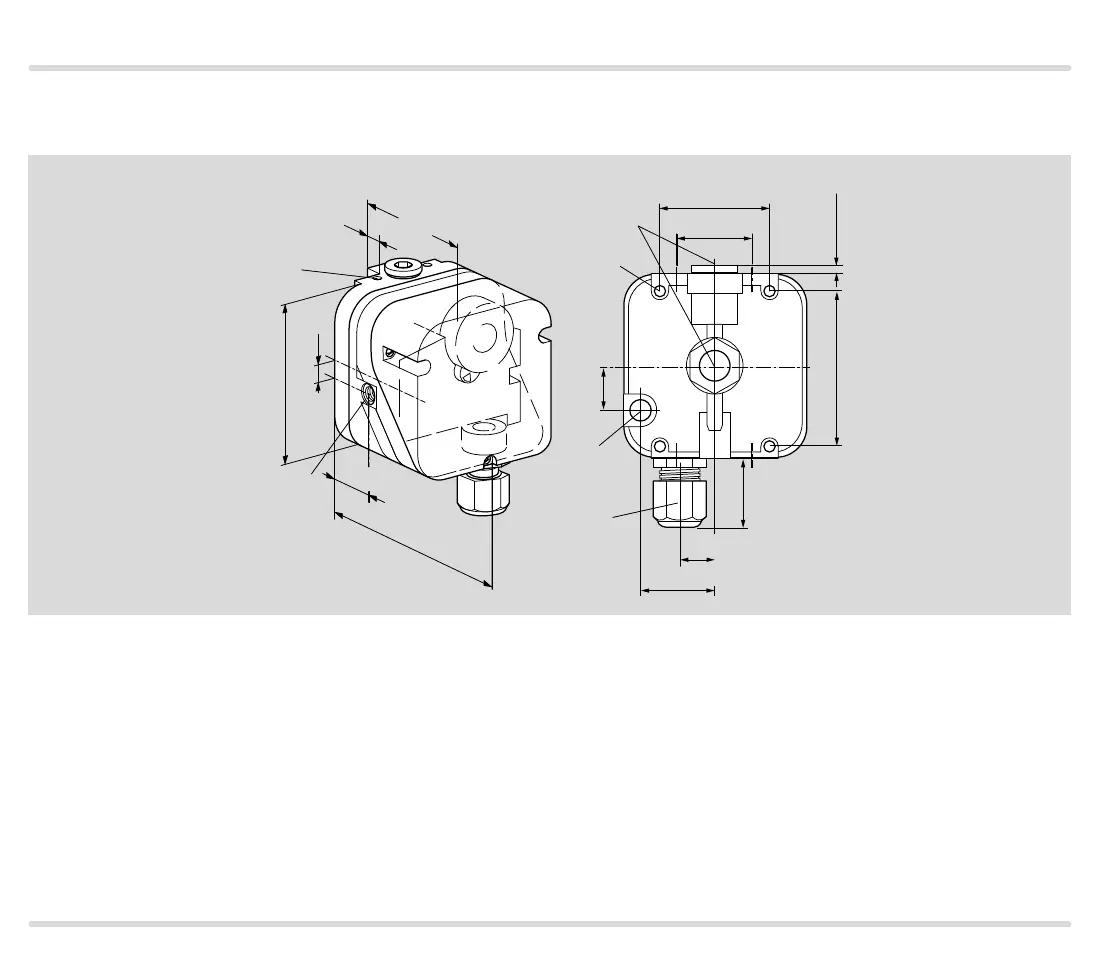

6.5 Dimensions
6.5.1 EU certified pressure switches
ø 4,2
(ø 0.17")
4 x ø 3,6
1)
(ø 0.14")
13 (0.51")
17 (0.7")
30,5 (1.2")
64 (2.52")
10,5 (0.41")
28,5
(1.12")
2,5 (0.1")

76 (3")
50 (2")
36 (1.42")
13,1
(0.52")
70
(2.76")
43 (1.7")
30 (1.2")
Rp
1
/ 8
Rp
1
/ 8
Rp ¼
M16 x 1,5
1)
Holes 10 mm (0.4") deep, for self-tapping screws.
