Project planning information
4.3 Resetting pressure switches with
manual reset

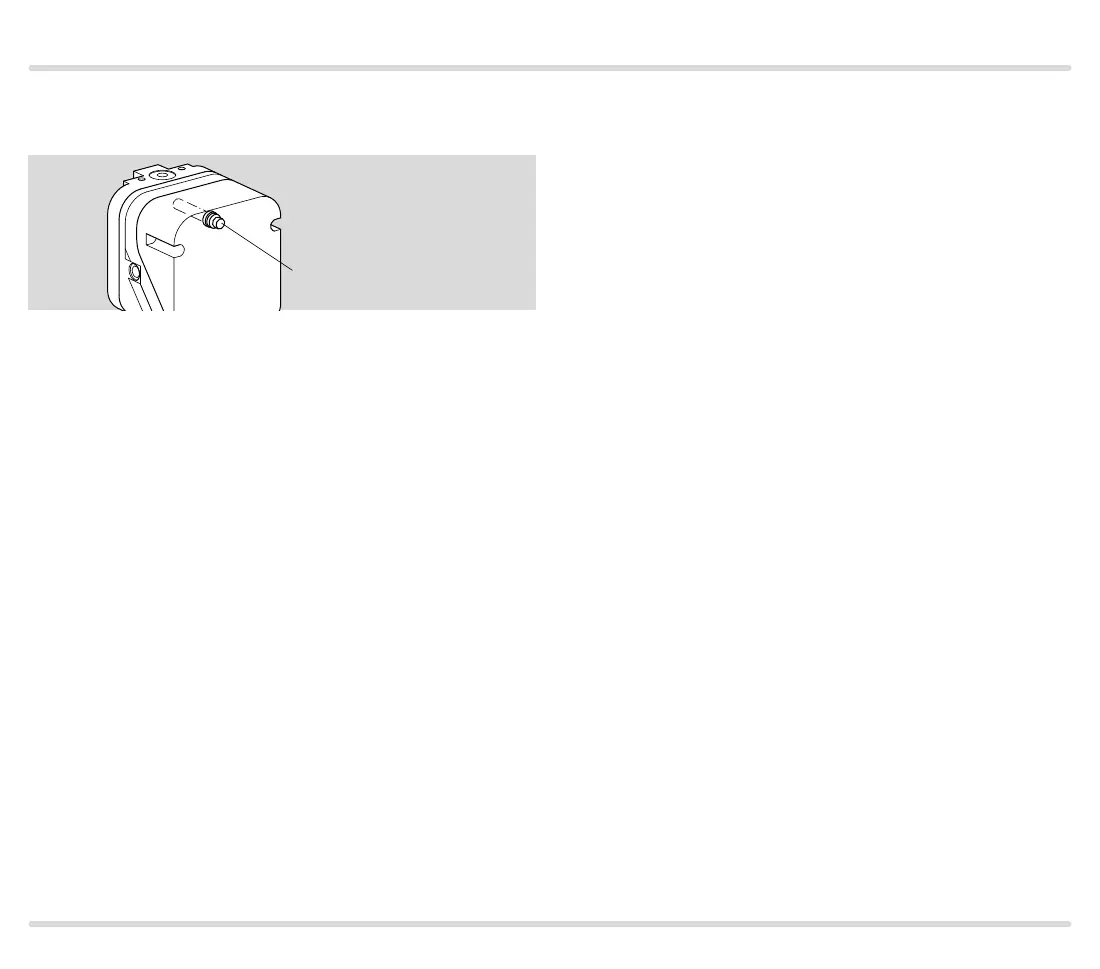

Manual reset
C6097A3012, C6097A3038, C6097A3095,
C6097A3111 lock off if the pressure drops to the set
switching point.
For resetting, the pressure must have risen to at least
the set switching point plus the pressure differential
between the switching pressure and possible reset.
C6097B3002, C6097B3028, C6097B3051 lock off if
the pressure rises to the set switching point.
For resetting, the pressure must have dropped to
at least the set switching point minus the pressure
differential between the switching pressure and
possible reset.
For details of the pressure differential between the
switching pressure and possible reset, see page 22
(Adjusting range, switching hysteresis).
