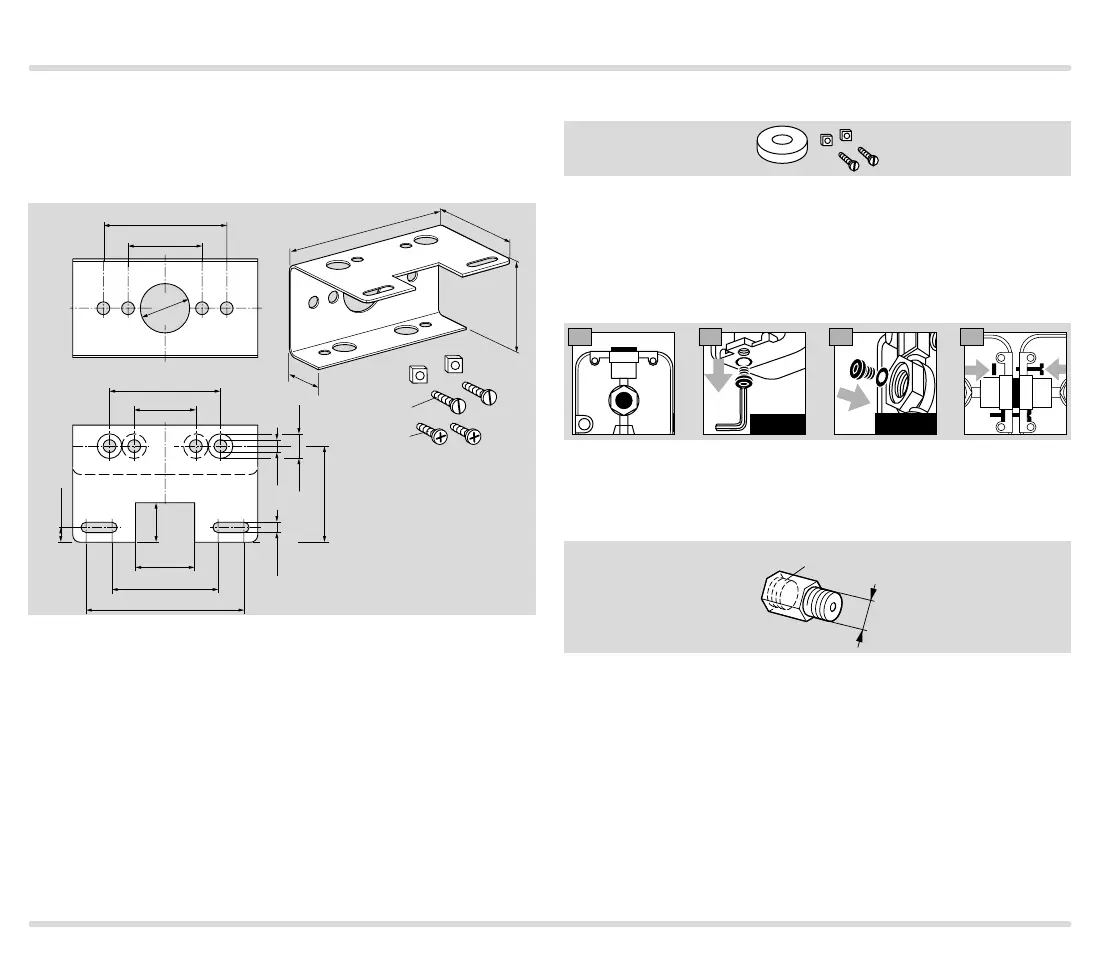

C6097 · Edition 01.19 17
Accessories
5 Accessories
5.1 Fastening set with screws, U-shape
bracket
50 (1.97")
M4 x 10
M4 x 12
47,5 (1.87"
)
75 (2.95")
30 (1.18")
20
(0.79")
25 (0.98")
45 (1.77")
20
(0.79")
24 (0.94")
43
-0,3
(1.69")
64 (2.52")
40 (1.57")
6 (0.24")
16
(0.63")
39 (1.53")
4,20
+0,1
(0.17")
5,2
(0.2")
10
(0.4")
Order No.: 32003042003/U
5.2 Connecting set
For monitoring a minimum and maximum inlet pres-
sure with two pressure switches attached to one an-
other.
Order No.: 32003043003/U
2
1
2 x
1 x
2
21 3 4
5.3 Restrictor orifice
For CE certified pressure switches
R
¼
Rp
¼
In the case of high pressure fluctuations, we recom-
mend using a restrictor orifice (contains non-ferrous
metals):
Hole diameter Ø 0.2 mm, Order No.: 32003051003/U,
Hole diameter Ø 0.3 mm, Order No.: 32003052003/U.
