The second generation of DVR’s optional:VGA Output+HDMI Output、TV Output.
【Resolution】Setting the resolution of the display device.
The first generation of DVR default VGA resolution is 1024 x 768;
The second generation of DVR default VGA resolution is 1280 x 1024;
Chapter 5 Menu Operation Guide

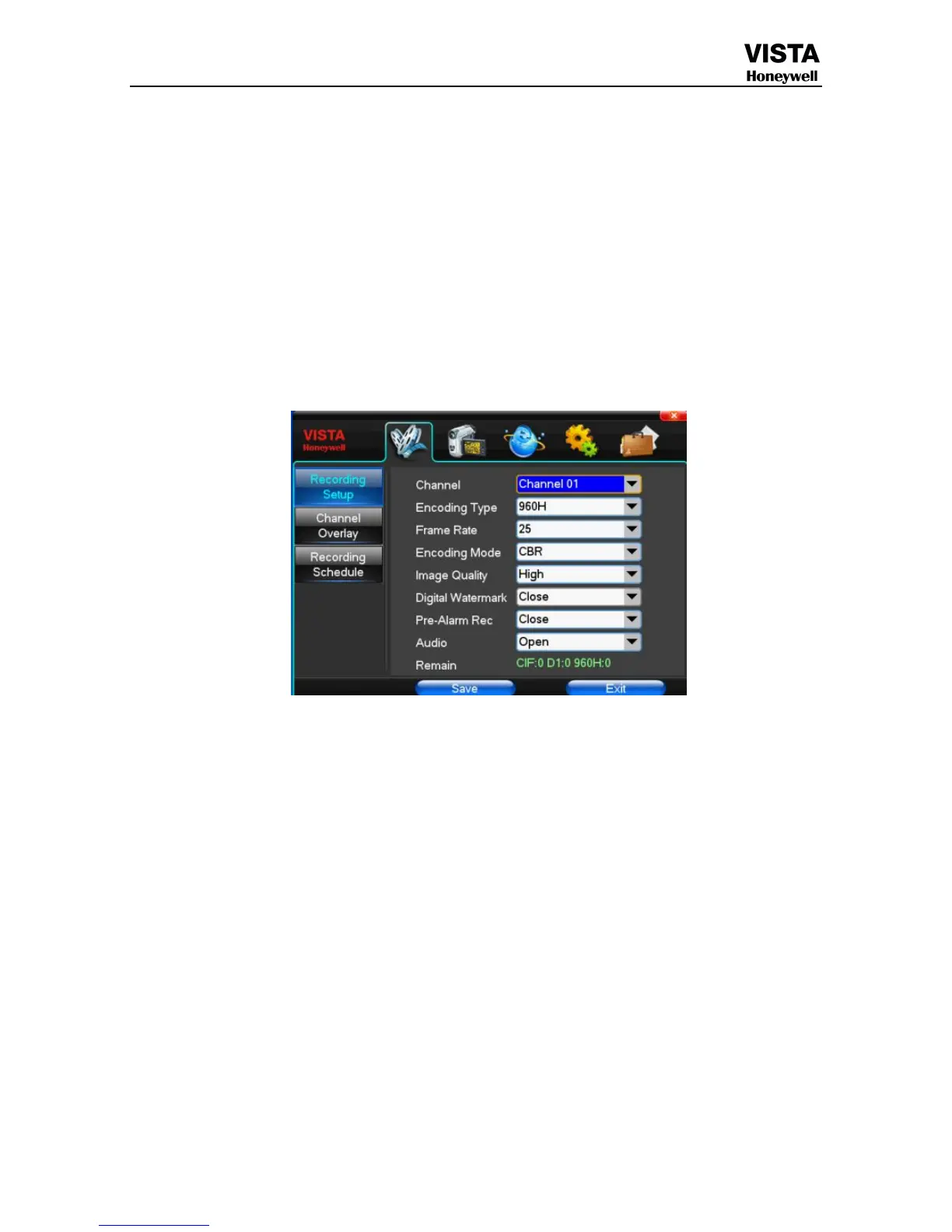

5.1 Recording Setup
(1) Recording Setup
【Channel】Choose the need to install passage "whole" says setting all channels.
【Image Size】the encoding format maybe is 960H/D1/CIF
【Encoding Mode】Including fixed bit rate, dynamic bit rate.
【Image Quality】Client-side image quality, the higher the quality the clearer. Choice scope: minimum, low, general,
【Frame Rate】Can click on the button manually input, 1 ~ 25 frames per second (PAL) or 1 ~ 30 frames per second
(NTSC) continuous adjustable.【Audio】Can select close, open according to requirements
【Pre-Alarm Rec】Can select close, open according to requirements
