Honeywell Dolphin 60s User Manual

9 - 10

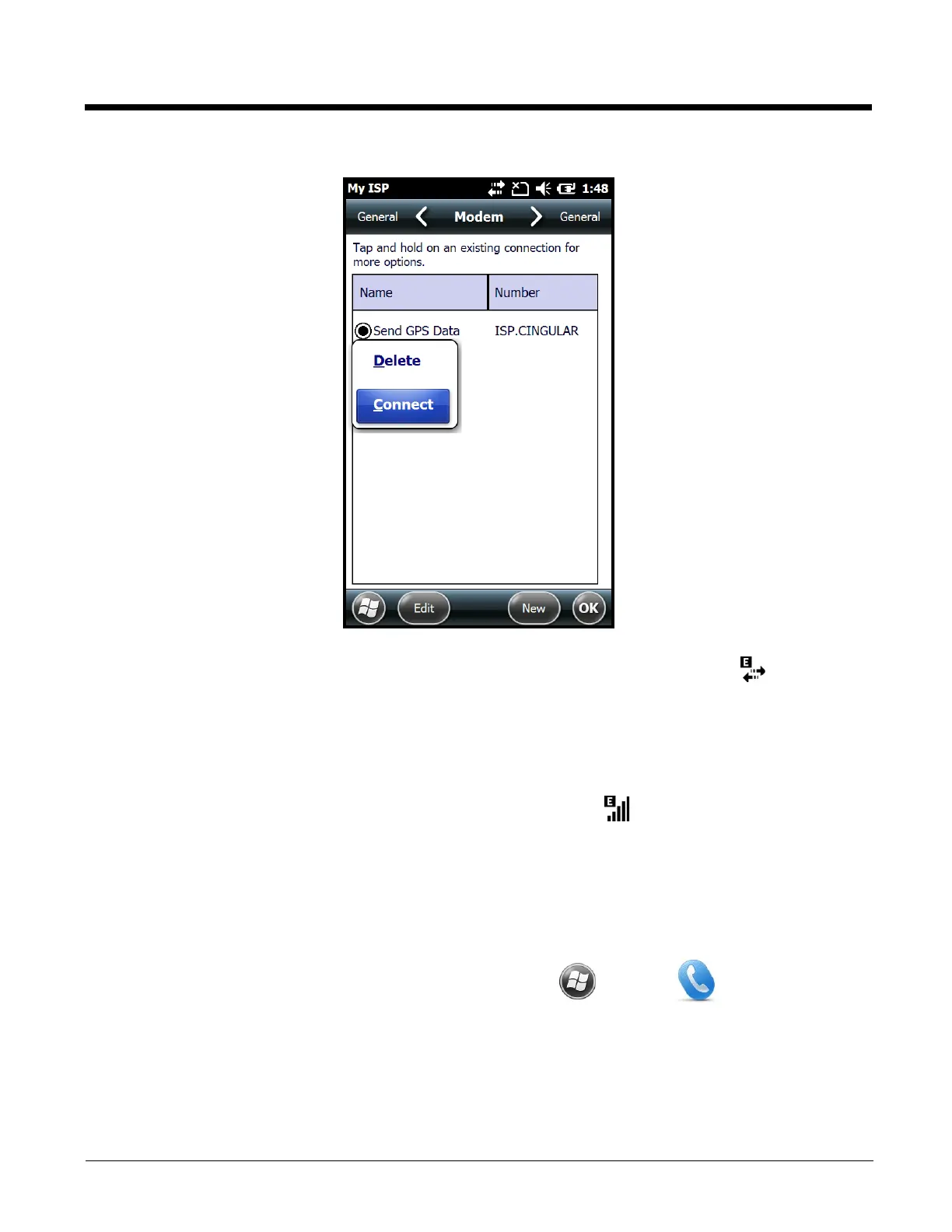

9. Touch and hold on the connection name. Select Connect on the popup menu.
10. The network icon in the Title bar indicates the GSM radio is attempting to connect .
Note: When the device is on a 2G (EDGE/GPRS) network, a data connection failure occurs if the phone is in
use for a voice call while attempting a data connection. Simultaneous voice and data use is only
supported if the device is on a 3G network. In 2G mode, a voice call takes precedence over data
connections. Active data connections are placed in "park" mode automatically and the data is "retrieved"
when the voice call ends.
11. When the connection is complete, the network icon changes to: .
12. You can now send data over GSM.
Manual Network Selection (GSM/UTMS)
You can select Automatic or Manual network selection. The Phone defaults to Automatic network
selection.
1. When an active SIM card is inserted in the terminal, touch > Phone > Menu > Options.
2. Select the Network on the Horizontal Scroll bar.

Honeywell Dolphin 60s Specifications

General

Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	-
ROM capacity	512 MB
Internal memory	0.256 GB
Compatible memory cards	MicroSD (TransFlash), SDHC
Processor frequency	0.8 GHz
Operating system installed	Windows Embedded Handheld 6.5
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.1+EDR
Security algorithms	EAP-TLS, LEAP, MD5, PEAP, TKIP, WPA-PSK
Second camera	No
Rear camera resolution (numeric)	5 MP
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3340 mAh
Product color	Black
Keyboard layout	QWERTY

Weight and Dimensions

Depth	66 mm
Width	136 mm
Height	28.7 mm
Weight	246.6 g
