Honeywell DR90A3000 User Manual

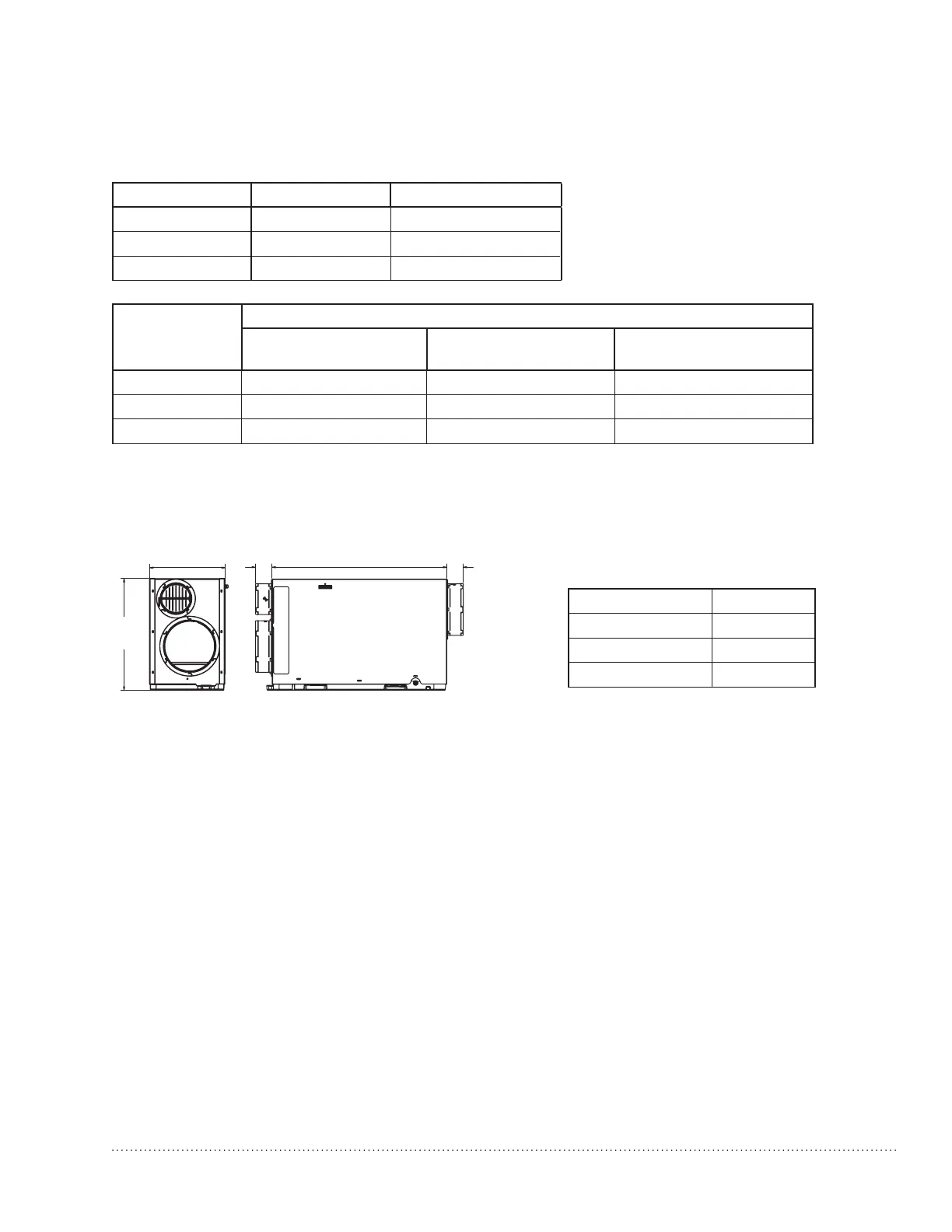

DR90 Specifications
Install DR90A3000 according to National Electric Codes.
Dimensions in inches and (mm):
Product weight: 86 lbs.
Shipping weight: 95 lbs.
Shipping dimensions: 25.2” H × 19.3” W × 35.8” L
Media Filter: MERV 11, 14” H × 17.5” W × 1.75” L
Drain connection: 3/4” threaded female NPT connection.
Duct connections: 10” round inlet and outlet. 6” supply inlet.
ABS plastic, compatible for connection to rigid or flexible
ducting with sheet metal screws and/or tape.
Cabinet: 20 ga
Insulation: R value 1
Compressor: Rotary, 7.3k BTU
Refrigerant: R410A, 25 oz
Operating Temp Range (outside cabinet):
34ºF to 135ºF (1.1ºC to 57.2ºC)
Operating Humidity Range: 099% RH
Input ratings
• Electrical input voltage: 120 VAC,
60 Hz nominal
• Input current: 5.3 A
Output ratings
• Power transformer to R/C
terminals: 24 VAC, 0.85 A
• Energy Performance: 2.9 liters
(6.1 pints) per kilowatt hour (KWH)
Standards and approval body
requirements
• ETL Listed per UL 474 and
CSA C22.2 No 92
• ENERGY STAR rated.
DryBulb Temp Intake Humidity Capacity (Pints/Day)
80°F (26.7°C) 60% RH 90
70°F (21.1°C) 60% RH 65
60°F (15.6°C) 60% RH 47
Home Size
(square ft [m])
Dehumidifier Capacity Required to Maintain Desired Indoor RH*
60% RH Indoor
(pints/day)
50% RH Indoor
(pints/day)
40% RH Indoor
(pints/day)
2080 (193.2) 4954 5558 7178
2600 (241.5) 6168 6572 9097
3120 (289.9) 7582 7986 95110
* Based on extreme climates where outdoor humidity is 7090% RH. For less extreme climates, larger
homes can be adequately served with less capacity. Actual requirements may vary.
Airflow versus external static pres-
sure (01 in. [0 - 25.4 mm] water
pressure) with collars attached
0 in. (0 mm) 320 CFM
0.2 in. (5 mm) 280 CFM
0.4 in. (10 mm) 260 CFM
0.6 in. (15.2 mm) 215 CFM
3-3/16
(81)
3-3/16
(81)
19-3/8
(492)
14-3/8
(365)
25-13/16
(656)
M28840A
DR90/DR120A3000 Dehumidification System 33-00298EFS—01
4

Honeywell DR90A3000 Specifications

General

Brand	Honeywell
Model	DR90A3000
Category	Dehumidifier
Language	English
